7. DISASSEMBLY AND ADJUSTMENT
7.4 Y Drive Part
7.4 .1 Y Motor

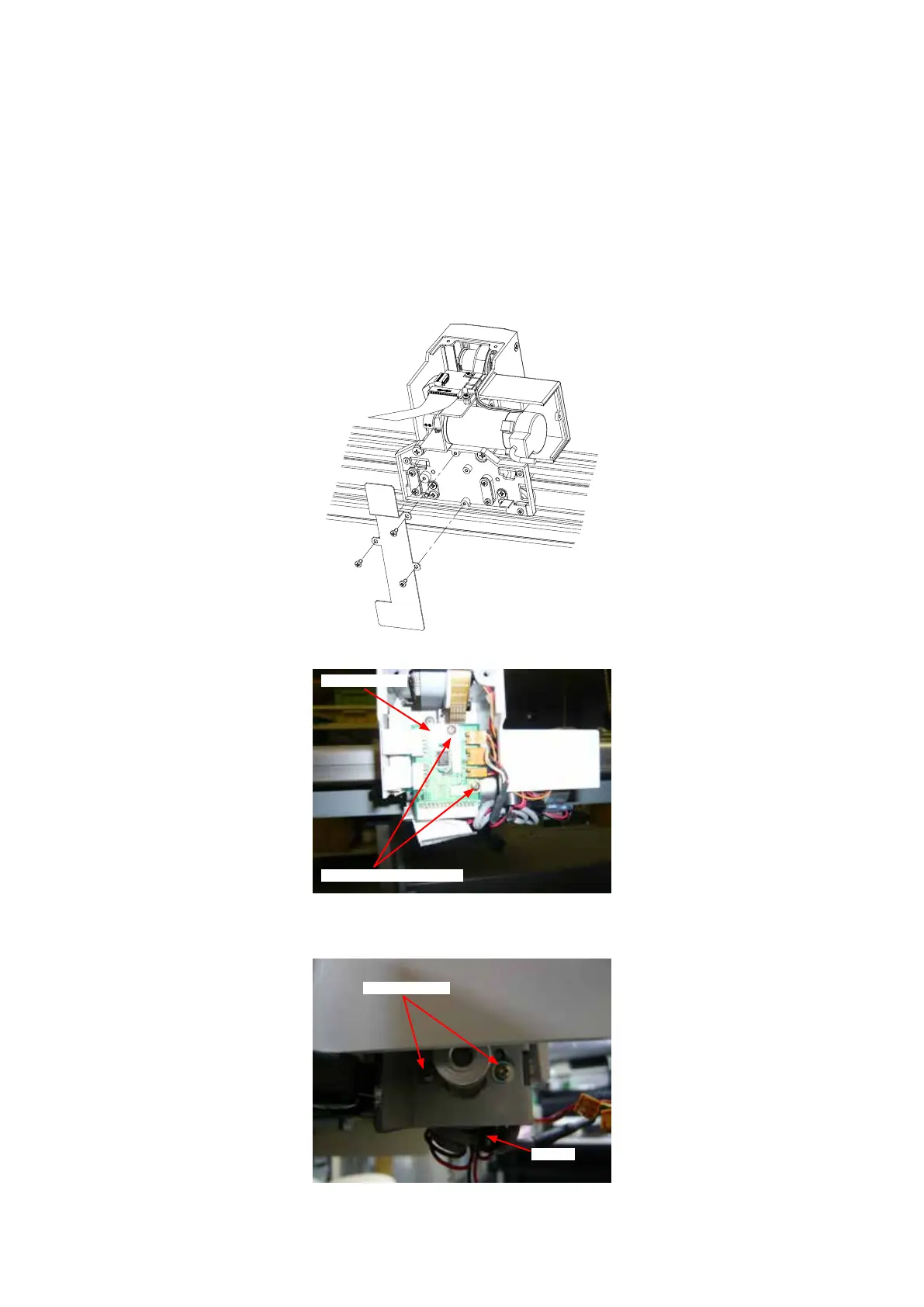

How to detach the Y motor
(1) Detach the Y motor cover (See the section 7.1.7).
(2) Disconnect X exible cable from connector on the X-Y relay board.
(3) Remove the three M3 binding head screws holding the X exible cable bracket, then detach the X
exible cable bracket.
(4) Remove the two M3L6 binding head screws holding the X-Y relay board, and then detach it.
X-Y relay board
M3L6 binding head screw
(5) Disconnect the all cables from the X-Y relay board.
(6) Remove the two M3L8 TP screws holding the Y motor, and then detach it.
Y motor
M3L8 TP screw
How to reinstall the Y motor
