GRAPHTEC FC2250 - Y Belt

FC2250-UM-251-9370 7-42
7. DISASSEMBLY AND ADJUSTMENT
7.5.5 Y Belt
How to detach the Y belt
(1) Detach the front Y bar cover (See the section 7.1.6).
(2) Detach the Y bar (See the section 7.5.1).

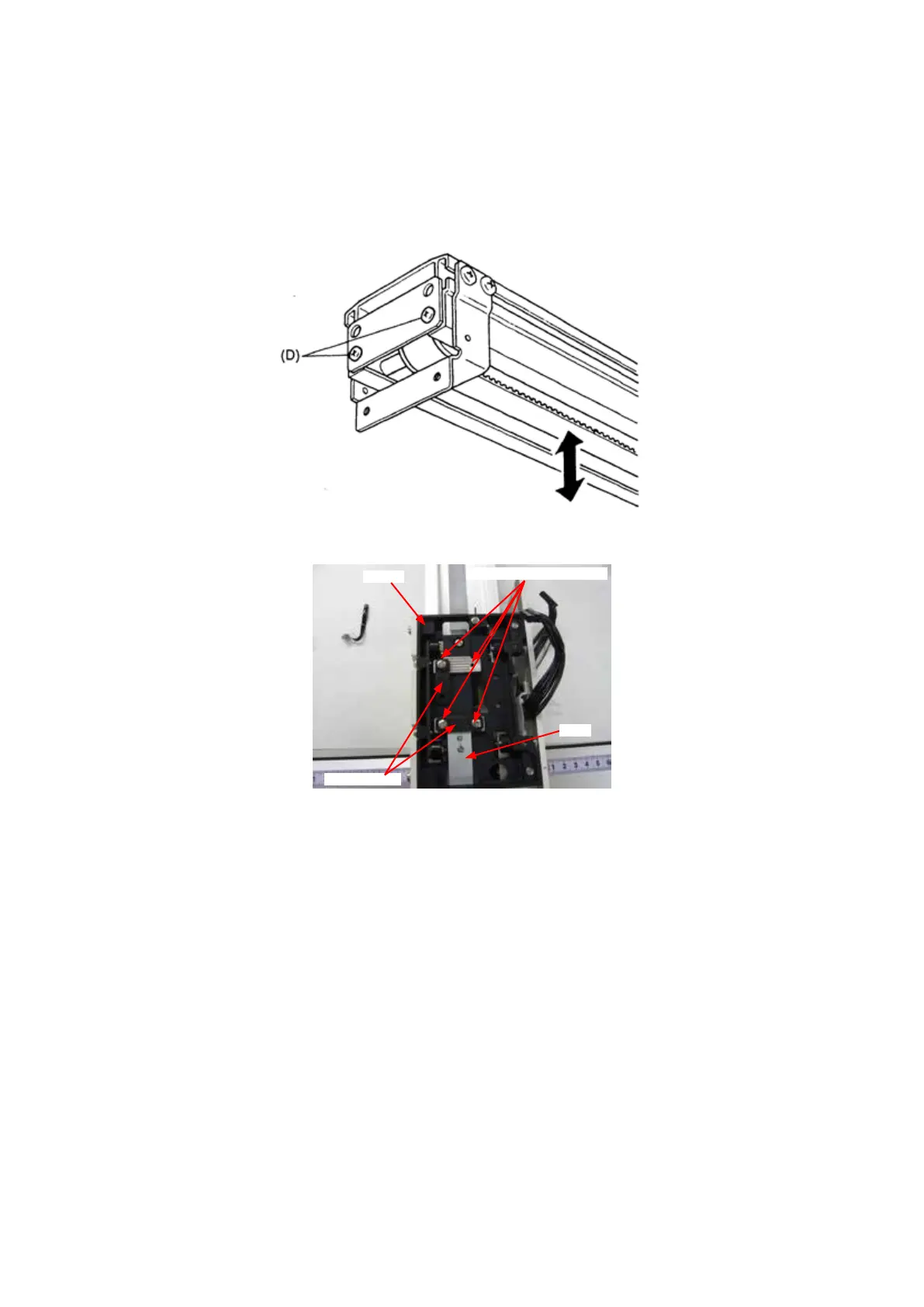

(3) Loosen the two Y belt tension adjustment screws.
(4) Remove the four M3L6 binding head screws holding the Y belt stopper.
M3L6 binding head screw
Y belt stopper
Y slider
Y belt
(5) Detach the Y belt.
How to reinstall the Y belt
(1) Reattach the Y belt in the reverse order in which it was detached.
(2) Adjust the Y belt tension (See the section 7.5.6).
