FC2250-UM-251-9370 7-70
7. DISASSEMBLY AND ADJUSTMENT
7.7.3 Power Supply Board
How to detach the power supply board
(1) Remove the four M3L6 binding head screws holding the control box cover (See the section 7.1.10).
(2) Disconnect all the cable from the power supply board.
(3) Remove the four M3L6 binding head screws holding the power supply board, then detach the power
supply board.

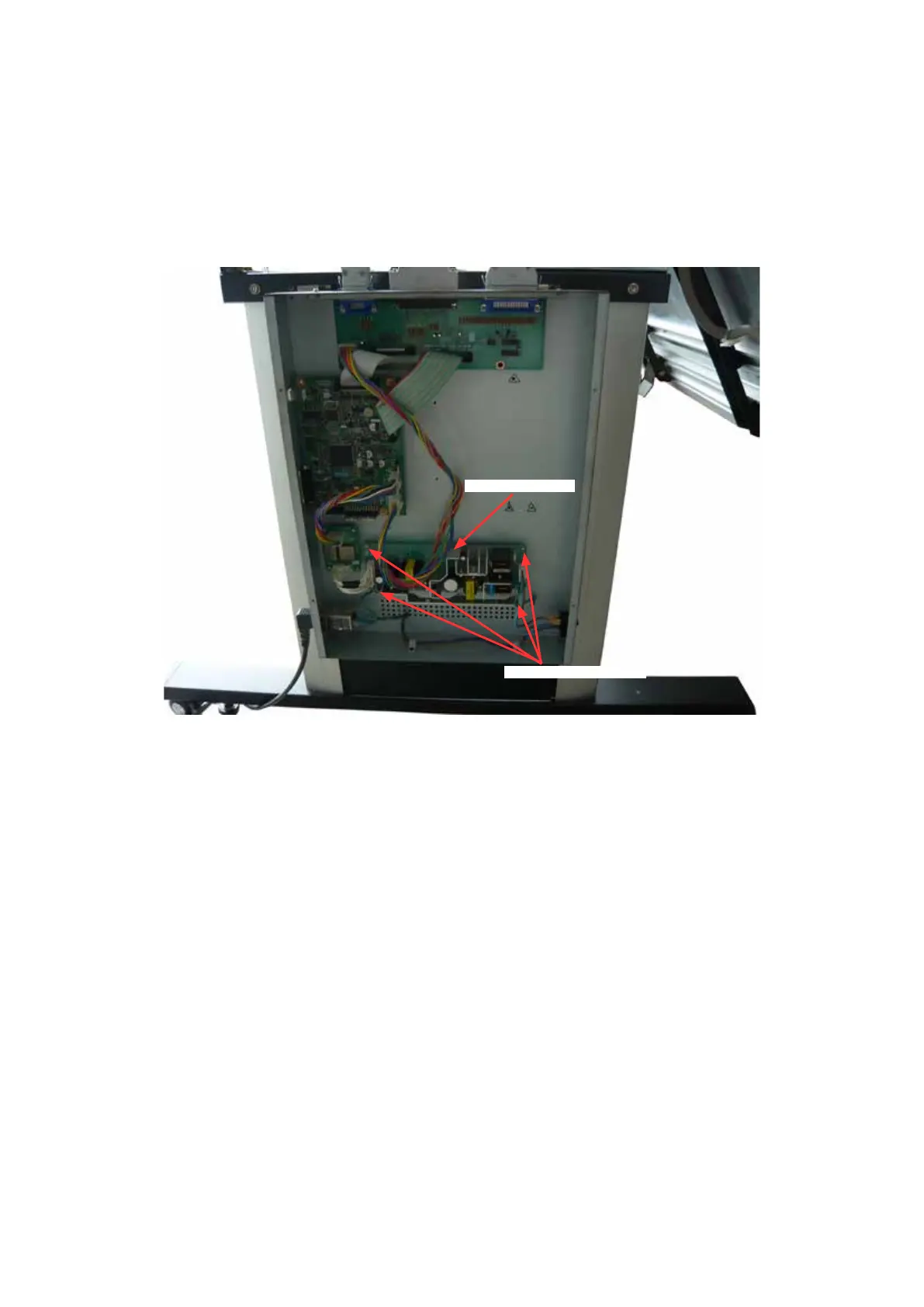

M3L6 binding head screw
Power supply board
How to reinstall the power supply board
(1) Reattach the power supply board in the reverse order in which it was detached.
To Next Page
