GRAPHTEC FC2250 - Stand Assembly Procedure

FC2250-UM-251-9370 1-6
1. INTRODUCTION
1.5 Stand Assembly Procedure
Assembly Procedure

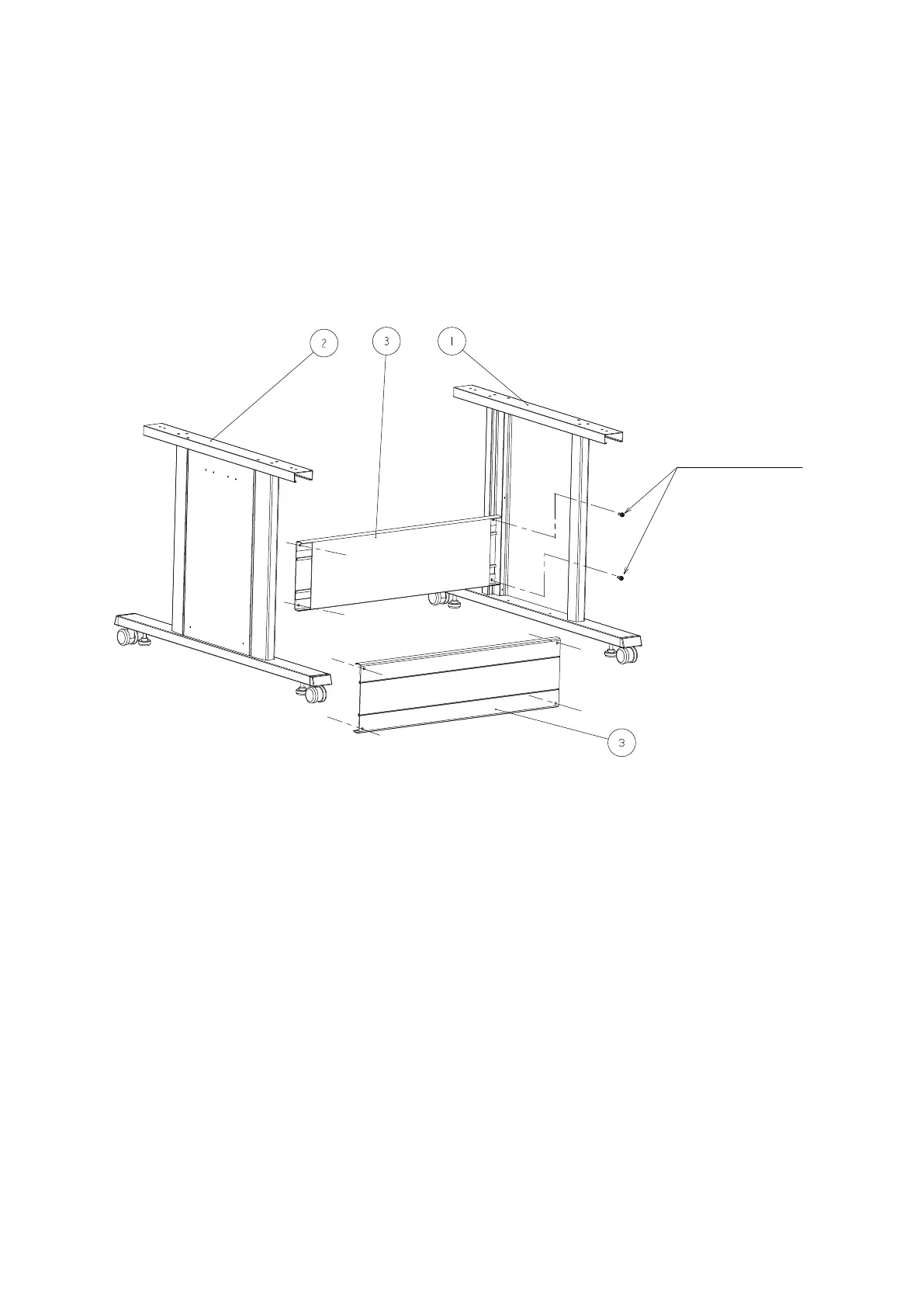

Attach the two center plates (3) to the stand leg (1), using the M6 x 15 bolts and the L wrench provided as
standard accessories.
Attach the center plates (3) to stand leg (2) in the same way.
Standard accessories
1. M6 x 15 hexagonal bolts: 8
2. L wrench
M6 x 15 hexagonal bolts
