FC2250-UM-251-9370 8-13
8. ELECTRICAL ADJUSTMENTS
8.8 Inputting the Gain Value
When the main board was replaced input the gain value of factory setting with this mode.

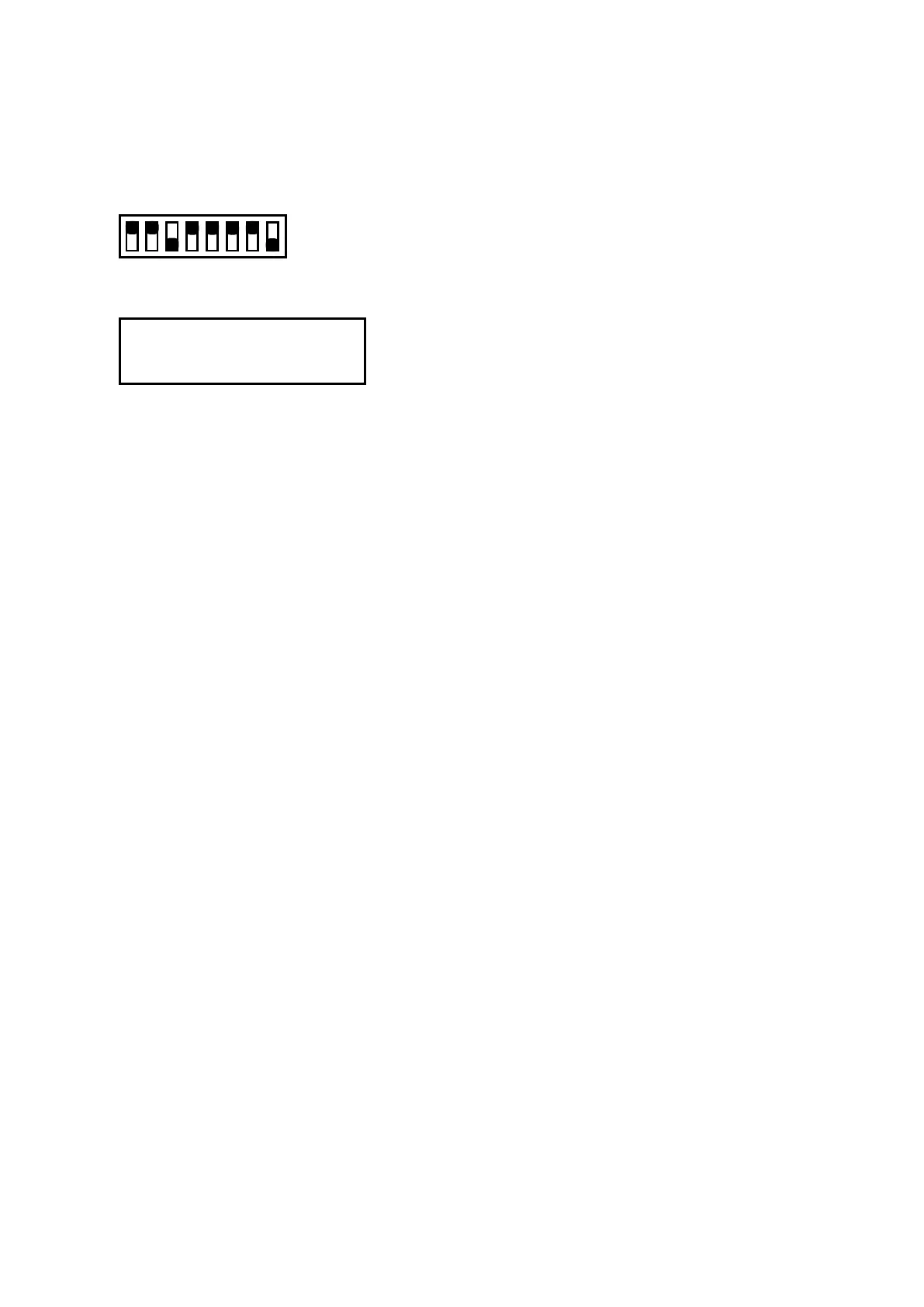

(1) Set the SW1 DIP switch as shown below and then turn on the plotter.
Set bits 3, and 8 to OFF
12345678
ON
OFF
(2) The LCD displays the following:
GAIN
X=xxx Y=xxx
(3) Input the gain values by using the position keys.
(4) Press the [Enter] key.
(5) Turn off the plotter and then return the DIP switch to its normal settings.
