GRAPHTEC FC2250 - Control Unit

FC2250-UM-251-9370 10-5
10. PARTS LIST
10.4 Control Unit
No. Part No. Description Q’ty Remarks Rank
1 508102306 Power Switch 1 SW,2WI36/92 C
2 518000033 AC Inlet 1 SUP-B3G-E C
3 792256700 Main Board 1 PN6121-01 A
4 792256701 Main Relay Board 1 PN6121-02 A
5 682247530 Switching Power Supply 1 LEP100F-36 A
6 500050273 Fan 1 TUDC24B4 A
7 621476141 Connector Panel 1 C
8 621476123 Control Box 1 C
9 395030100 Stud, ASB-310E 8 D
10 772247591 Power Supply Relay Board 1 PN5042-04 A

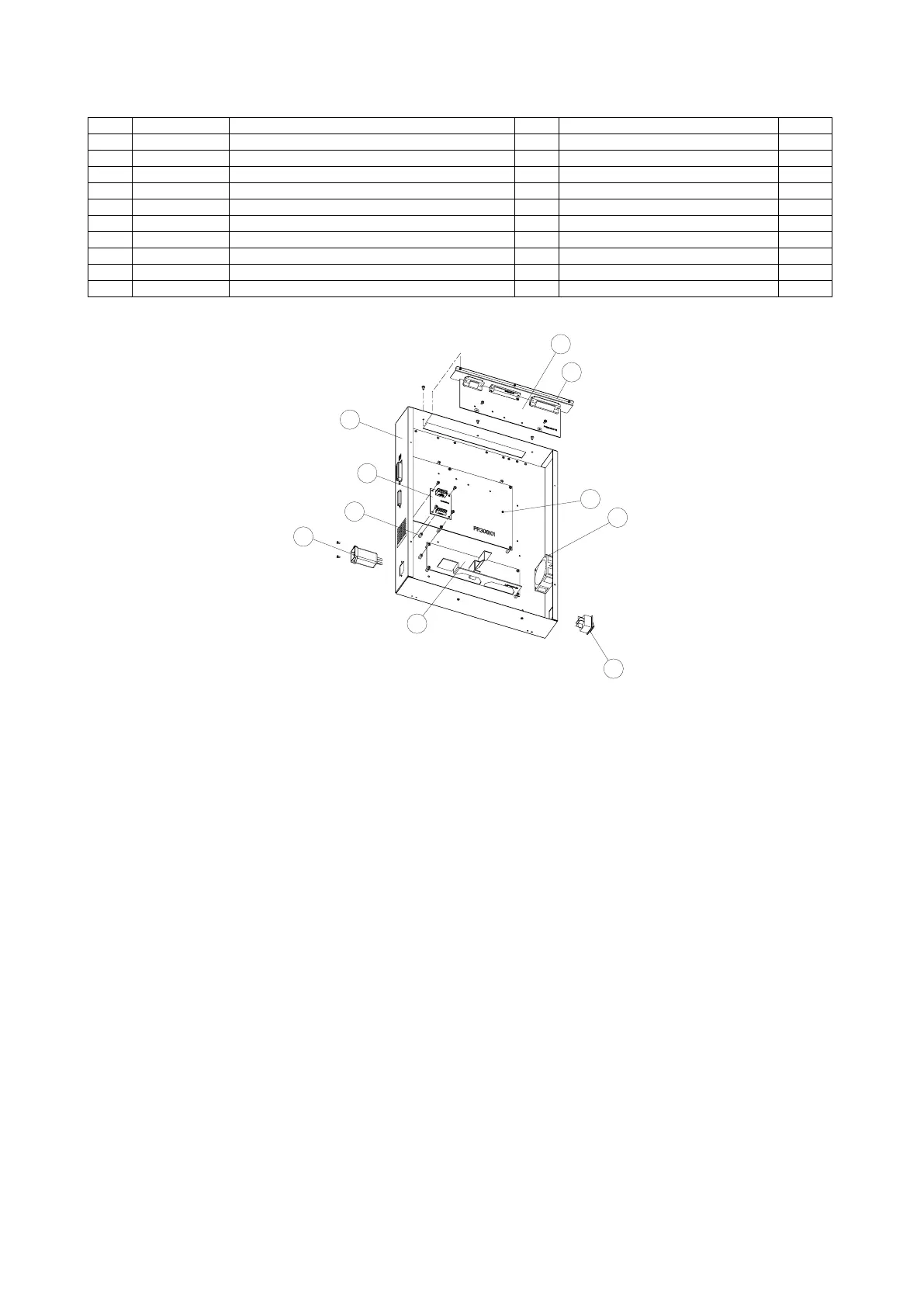

Control Unit
2
5
1
6
3
4
7
8
10
9
