GRAPHTEC FC2250 - Preparing The Y Flexible Cable Assembly

FC2250-UM-251-9370 7-52
7. DISASSEMBLY AND ADJUSTMENT
7.5.8 Preparing the Y Flexible Cable Assembly
Assemble the Y exible cable assembly if you have the Y exible cable (PN:162291101) and the Y exible
cable reinforcement (PN:022904331) separately.
You don’t need to assemble if you have the Y exible cable assembly (PN:772258520).
How to assemble the Y exible cable assembly

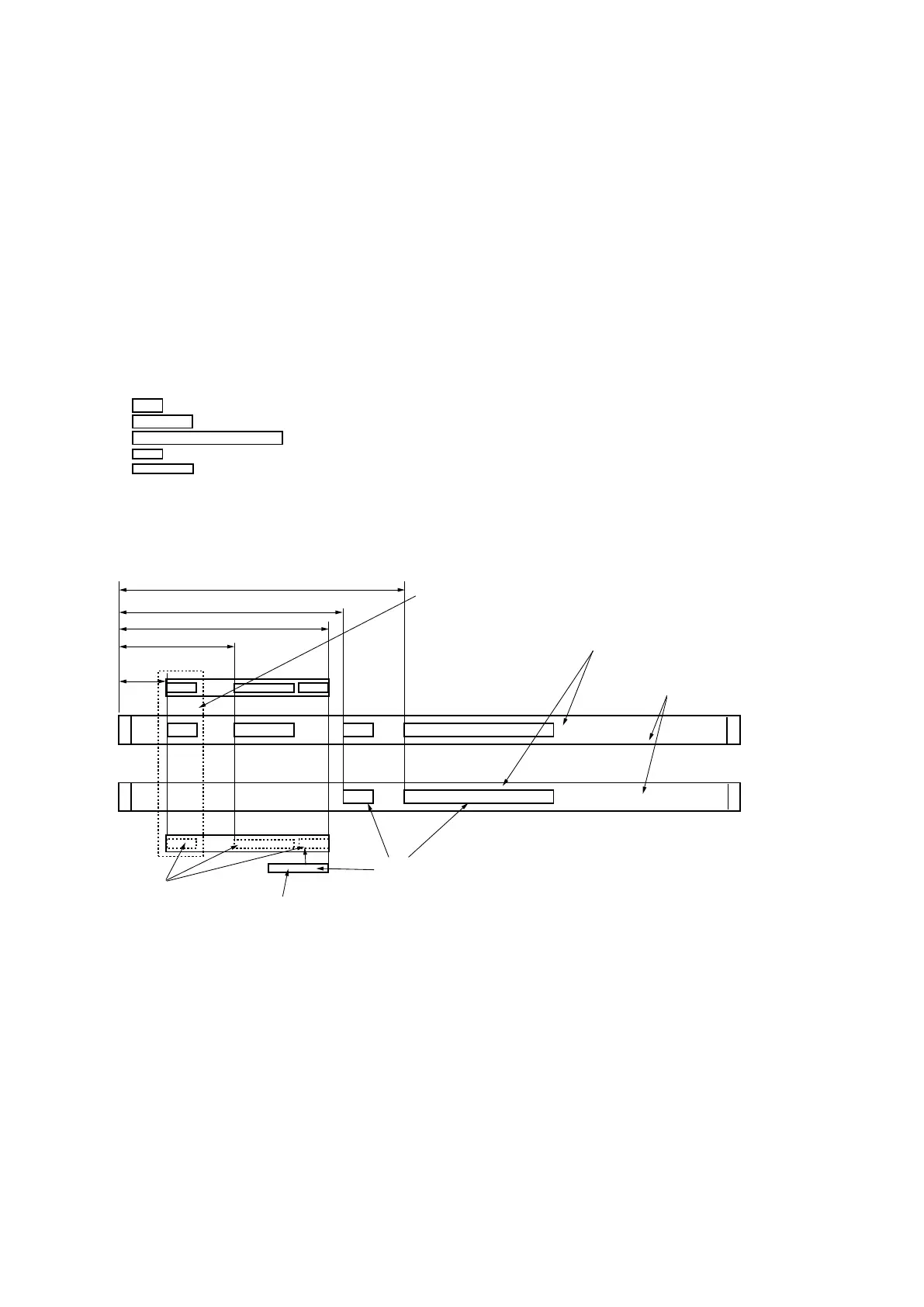

(1) Prepare following size of the double-sided adhesive tapes. And afx those pieces of double-sided
adhesive tape to the exible cable and the exible cable guide as shown in gure below.
(2) Write down the connector number at the end of the exible cable by using oil based ber tip pen as
shown in gure below.
10 X 20mm (3)
1
1 1
1
2
2
5
5
5
3
3
3
4
5
4 4
4 4
10 X 40mm (1)
5 X 40mm (2)
10 X 200mm (2)
985mm
905mm
735mm
625mm
35mm
J671
J453
J452
J561
FLEXG2
FLEXG1
Flexible cable
5 X 20mm (4)
Face up where character is printed.
Affix to
the reverse side.
Affix to the front side.
Remove the protection labels for these double-sided
adhesive tapes when installing the flexible cable to the Y bar.
Remove these three protection labels for these double-sided
adhesive tapes after connect the flexible cable to
the connector J671 and J561.
Prepare following size of the double-sided adhesive tapes.
Affix those pieces of double-sided adhesive tapes to the flexible cables
and the flexible cable guides as shown in figure below.
