7. DISASSEMBLY AND ADJUSTMENT

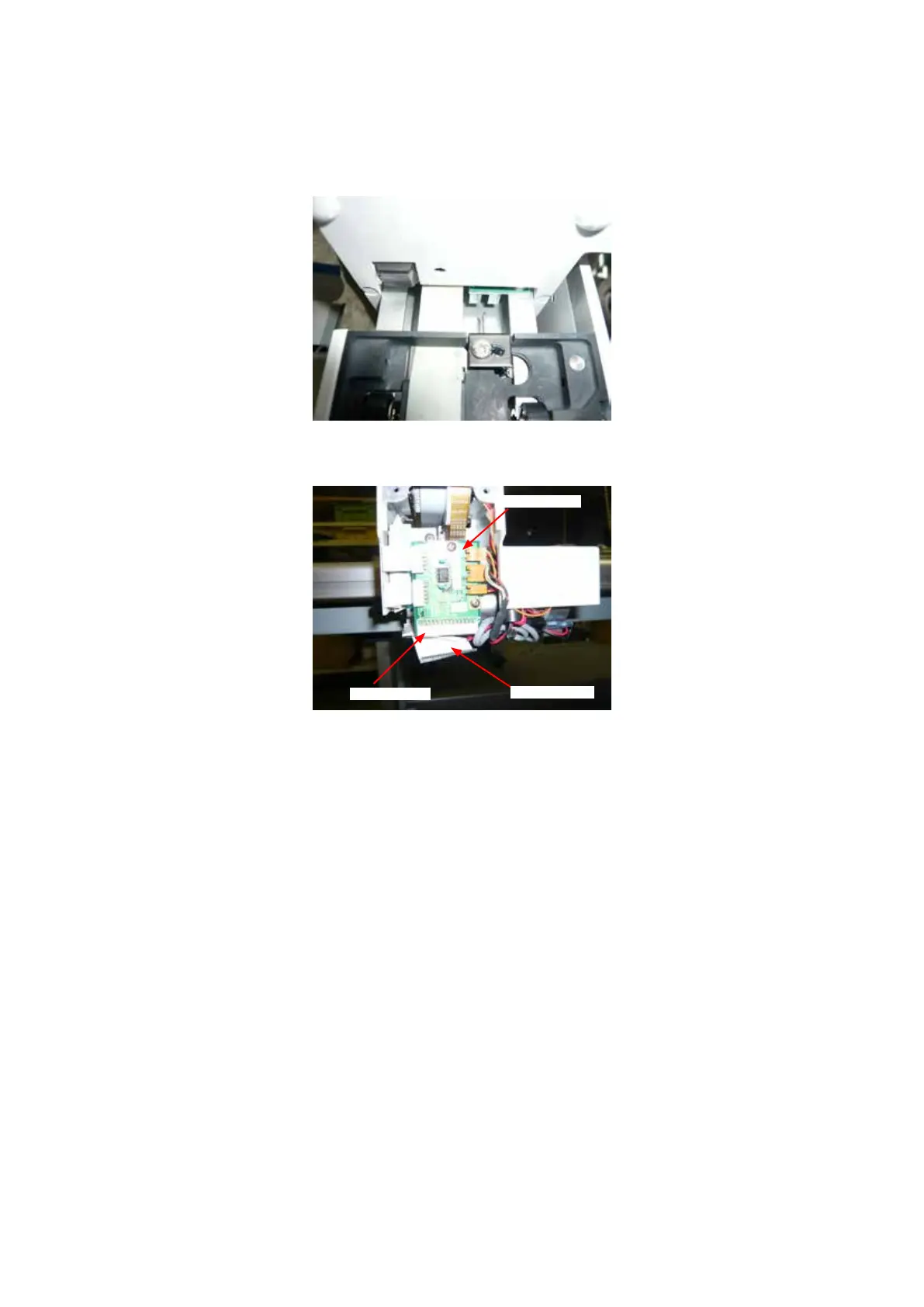

(16) Move the Y slider to the top end to conrm that the Y home sensor dog is in the correct position.
Conrm that the Y home sensor dog is not hitting to the Y home sensor.
Adjust the position for the Y home sensor dog if the Y home sensor dog is hitting to the Y home sensor.
The Y sensor dog should be into the slit of Y home sensor.
(17) Mount the Y bar to the X slider.
(18) Connect the X exible cable to the connector J51 on the X-Y Joint board.
X-Y relay board
Connector J51
X exible cable
(19) Reattach the other parts in the reverse order in which they were detached.
(20) Adjust the right-angle for the Y bar (See the section 7.5.4)
(21) Adjust the home position adjustment and the distance adjustment by the electrical adjustment.
