GRAPHTEC FC2250 - Flexible Cable

FC2250-UM-251-9370 7-23
7. DISASSEMBLY AND ADJUSTMENT
7.2.11 X Flexible Cable
How to detach the X exible cable
(1) Detach the Y motor cover (See the section 7.1.7).
(2) Disconnect X exible cable from connector on the X-Y relay board.
(3) Remove the three M3 binding head screws holding the X flexible cable bracket, then detach the X
flexible cable bracket.
(4) Detach the X exible cable from the X exible cable bracket.

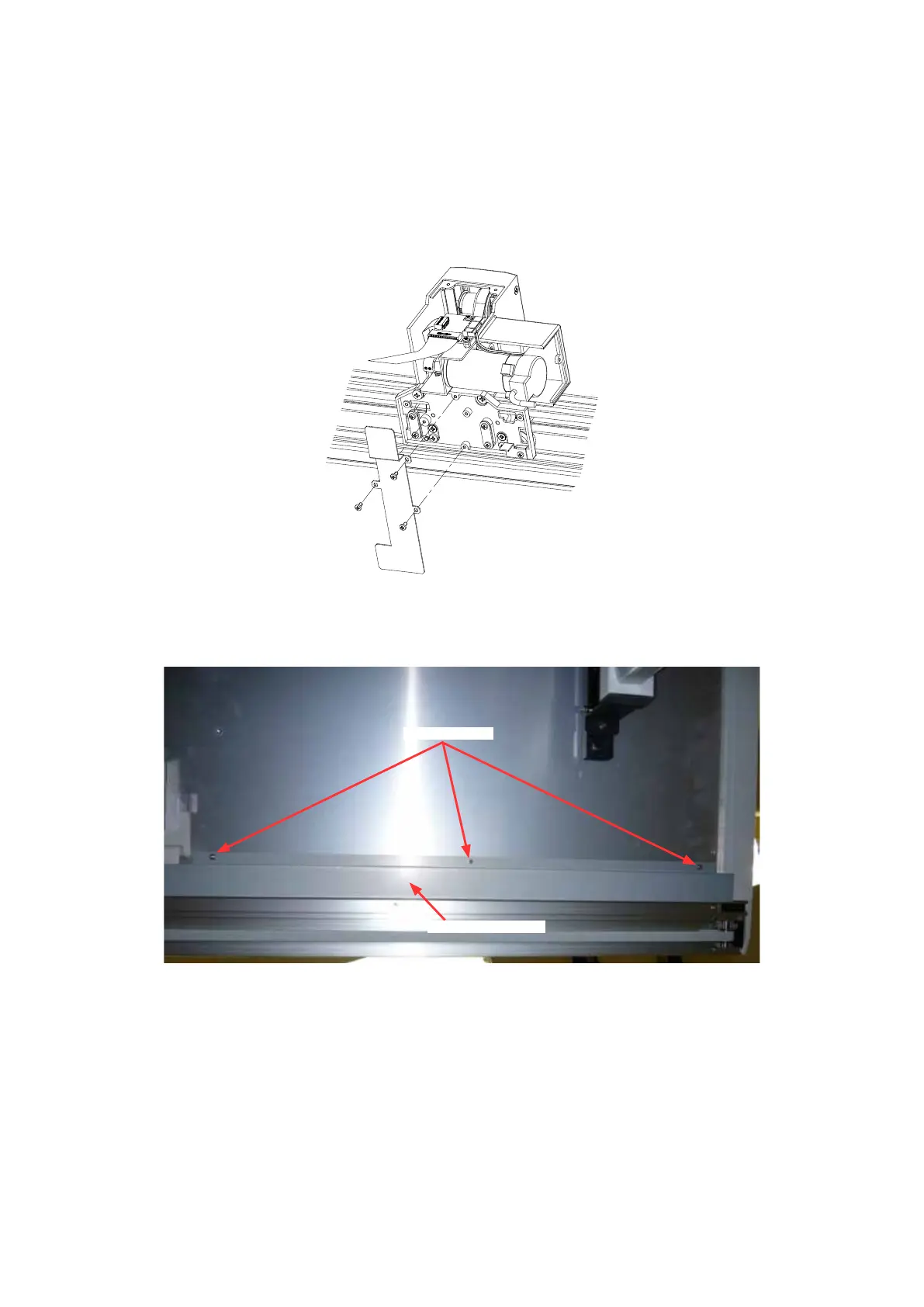

(5) Remove the three M3L10 TP screws holding the X exible cable guide, then detach the X exible cable
guide.
M3L10TP screw
X exible cable guide
