GRAPHTEC FC2250 - Pen Block Cover; Front Y Bar Cover

FC2250-UM-251-9370 7-3
7. DISASSEMBLY AND ADJUSTMENT
7.1.5 Pen Block Cover

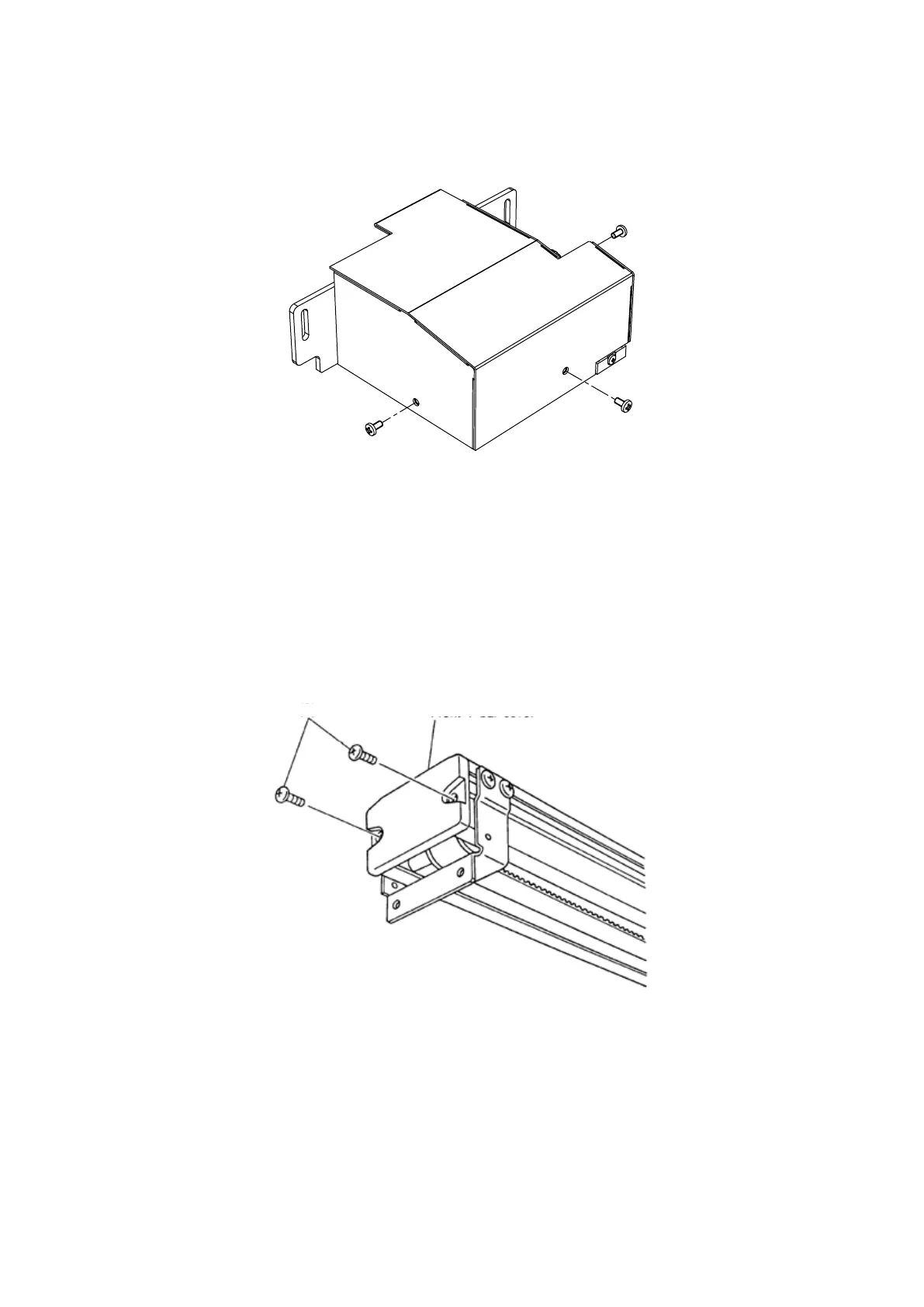

How to detach the pen block cover
(1) Remove the three M3L6 binding head screws holding the pen block cover, and then detach it.
How to reinstall the pen block cover
(1) Reattach the pen block cover in the reverse order in which it was detached.
(2) Take care that cables are not caught between an pen block and a pen block cover when reinstalling the
cover.
7.1.6 Front Y Bar Cover
How to detach the front Y bar cover
(1) Remove the three M3L6 binding head screws holding the front Y bar cover, and then detach it.
Front Y bar cover
M4L12 binding head screw
How to reinstall the front Y bar cover
(1) Reattach the front Y bar cover in the reverse order in which it was detached.
