10. PARTS LIST
10.3 Control Panel
No. Part No. Description Q’ty Remarks Rank
E1 772232010 Key Rely Board 1 PR223281 A
E2 772232020 LCD 1 A
E3 692236113 Control Cable 1 CA2290-01 B
1 682247030 Sheet Switch 1 PN5042-03 B
2 621476001 Panel Frame 1 C
3
022901330 Tray 60
1
FC2250-60 C
022900742 Tray 120 FC2250-120 C
022900750 Tray 180 FC2250-180 C
4 022900572 Cable Holder 1 C
5 772230260 Chart Hold Switch
1
ES B
772230860 Panel, Blind VC/MG C

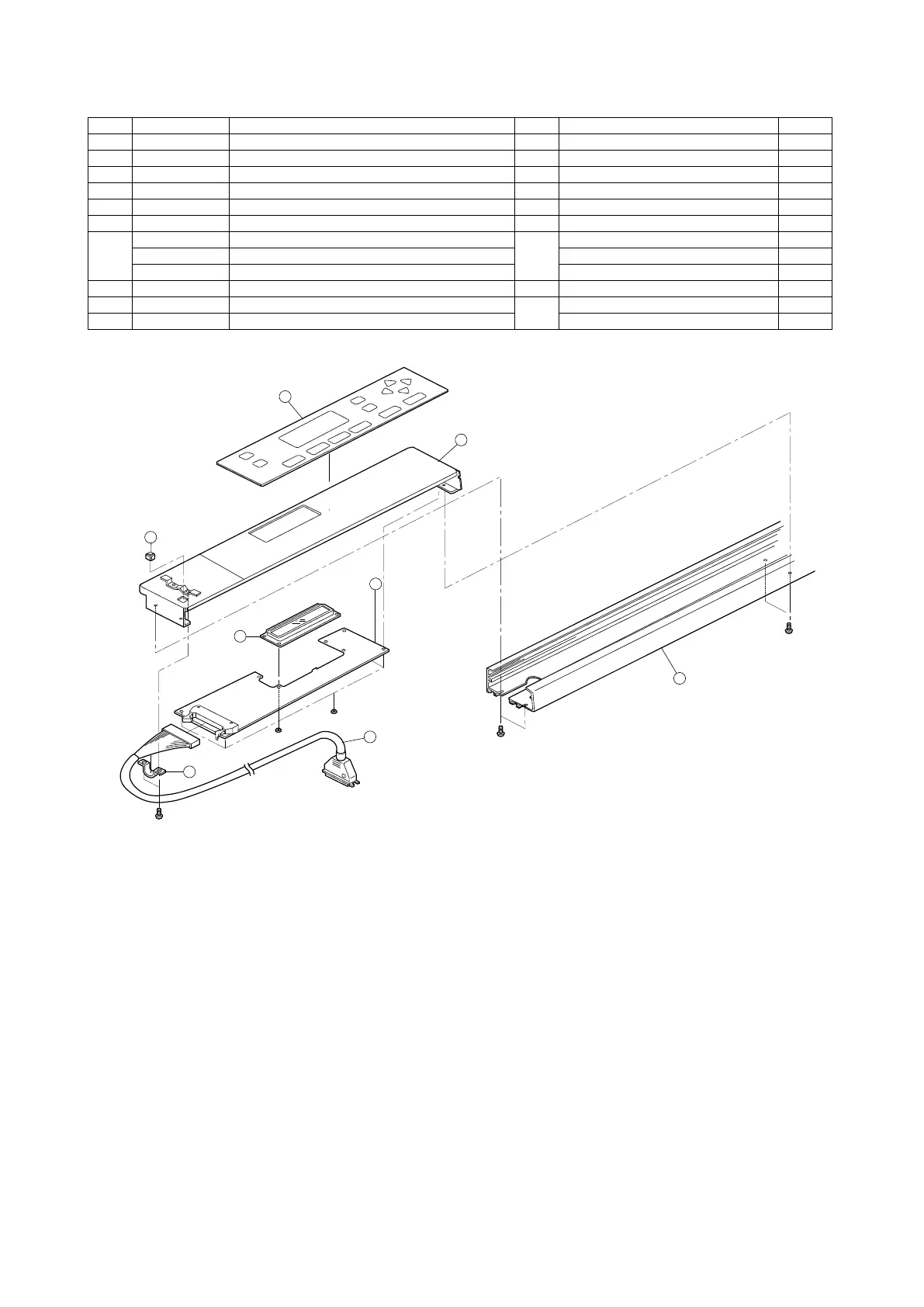

Control Panel
E2
E3
4
6
1
2
3
E1
