GRAPHTEC FC2250 - X-Axis Drive Part; Motor

FC2250-UM-251-9370 7-7
7. DISASSEMBLY AND ADJUSTMENT
7.2 X-Axis Drive Part
7.2.1 X Motor
How to detach the X motor
(1) Detach the X motor cover (See the section 7.1.8).
(2) Detach the X motor relay board cover (See the section 7.1.9).

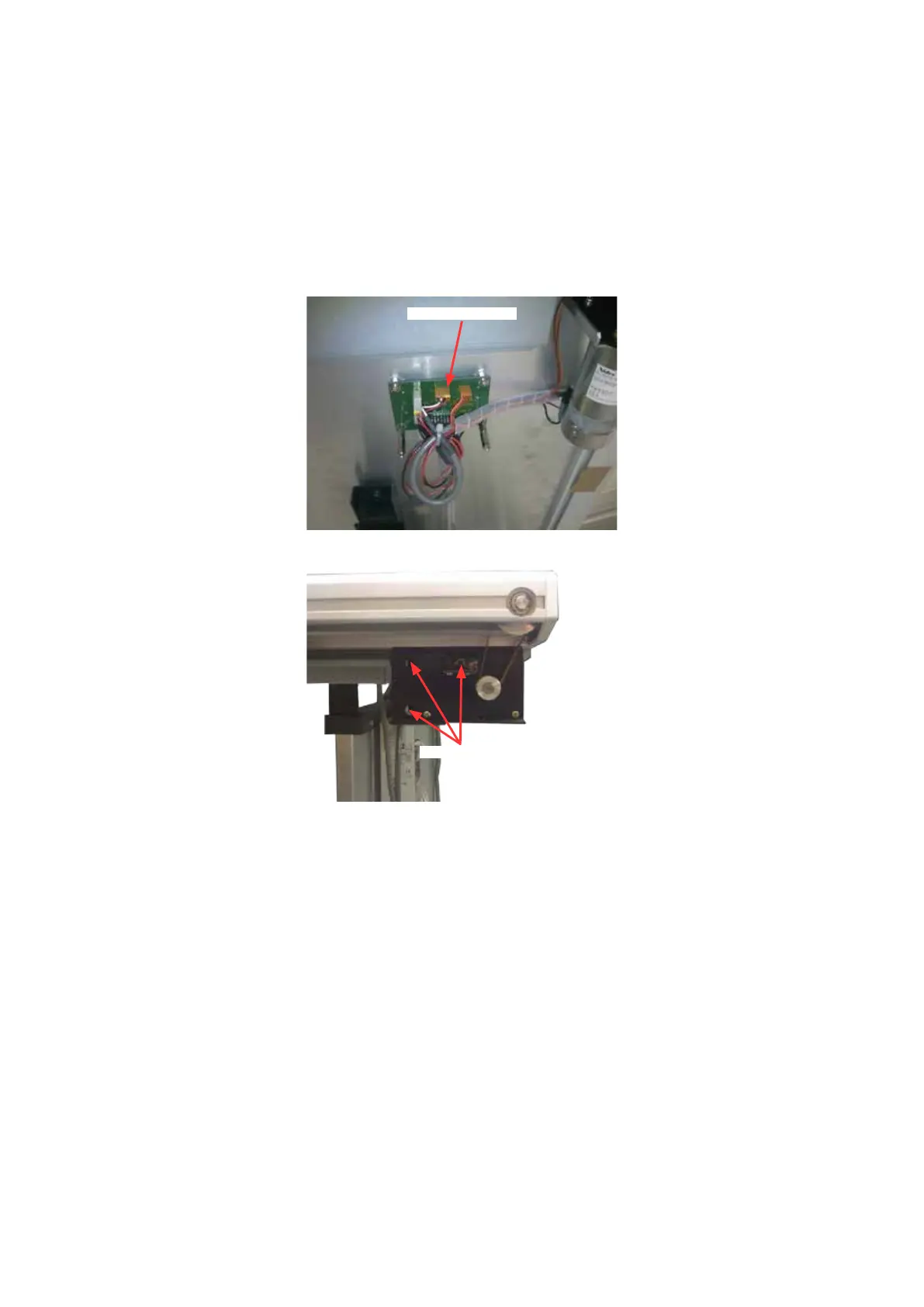

(3) Disconnect the X motor cables from the X motor relay board.
X motor relay board
(4) Remove the three M3L8 TP screws holding the X motor, and then detach it.
M3L8 TP screw
How to reinstall the X motor
(1) Reattach the X motor in the reverse order in which it was detached.
(2) Adjust the X motor belt tension when installing the X motor (See section 7.2.6).
(3) Apply a few quantity of the silicon grease to the belt and the tooth of pulley.
