FC2250-UM-251-9370 7-5
7. DISASSEMBLY AND ADJUSTMENT

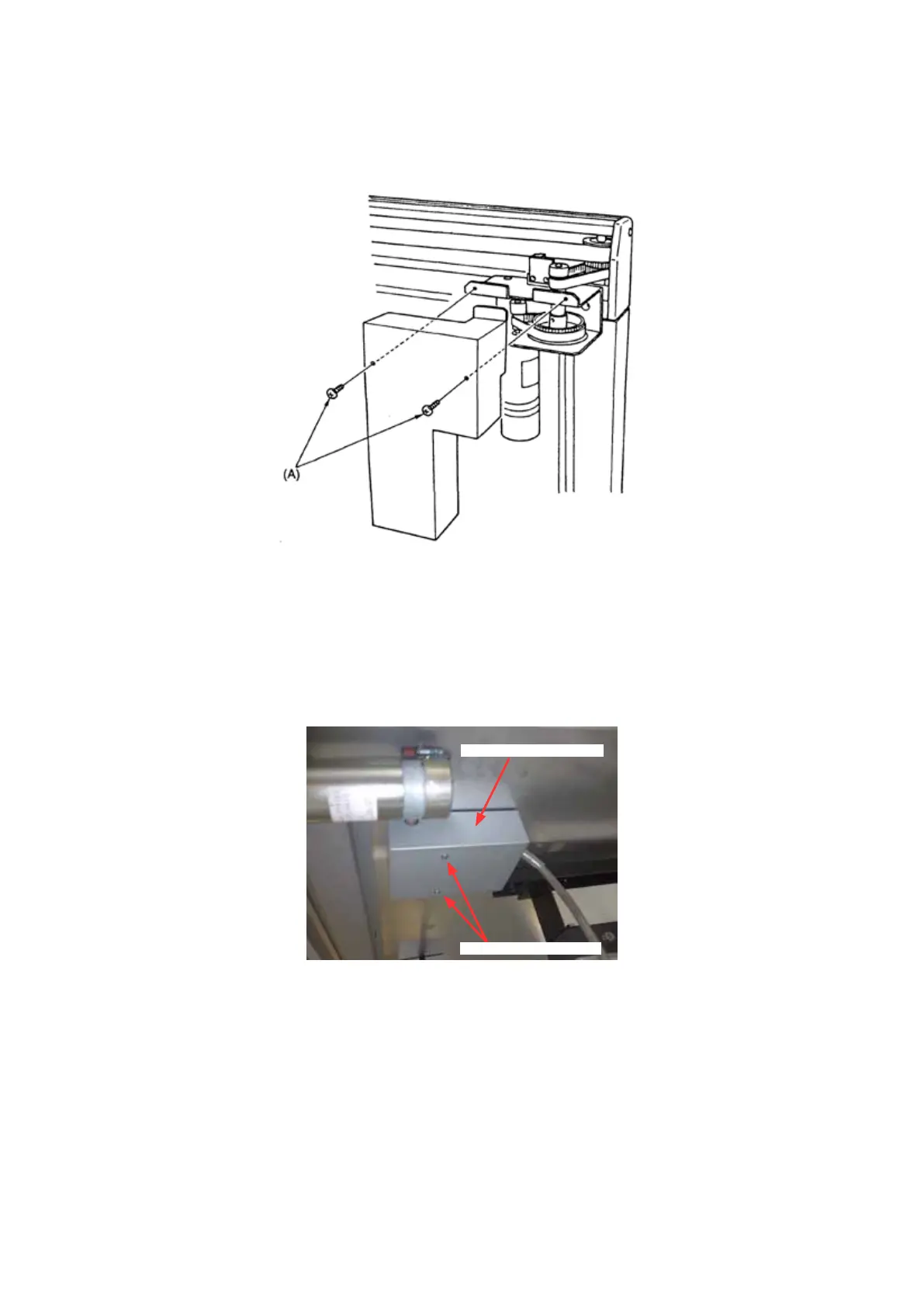

7.1.8 X Motor Cover
How to detach the X motor cover
(1) Remove the two M3 binding head screws indicated by the (A) arrows, then remove the X motor cover.
How to reinstall the X motor cover
(1) Reattach the X motor cover in the reverse order in which it was detached.
7.1.9 X Motor Relay Board Cover
How to detach the X motor relay board cover
(1) Remove the two M3L6 binding head screws holding the X motor relay board cover, and then detach it.
X motor relay board cover
M3L6 binding head screw
How to reinstall the X motor relay board cover
(1) Reattach the X motor relay board cover in the reverse order in which it was detached.
