FC2250-UM-251-9370 7-50
7. DISASSEMBLY AND ADJUSTMENT

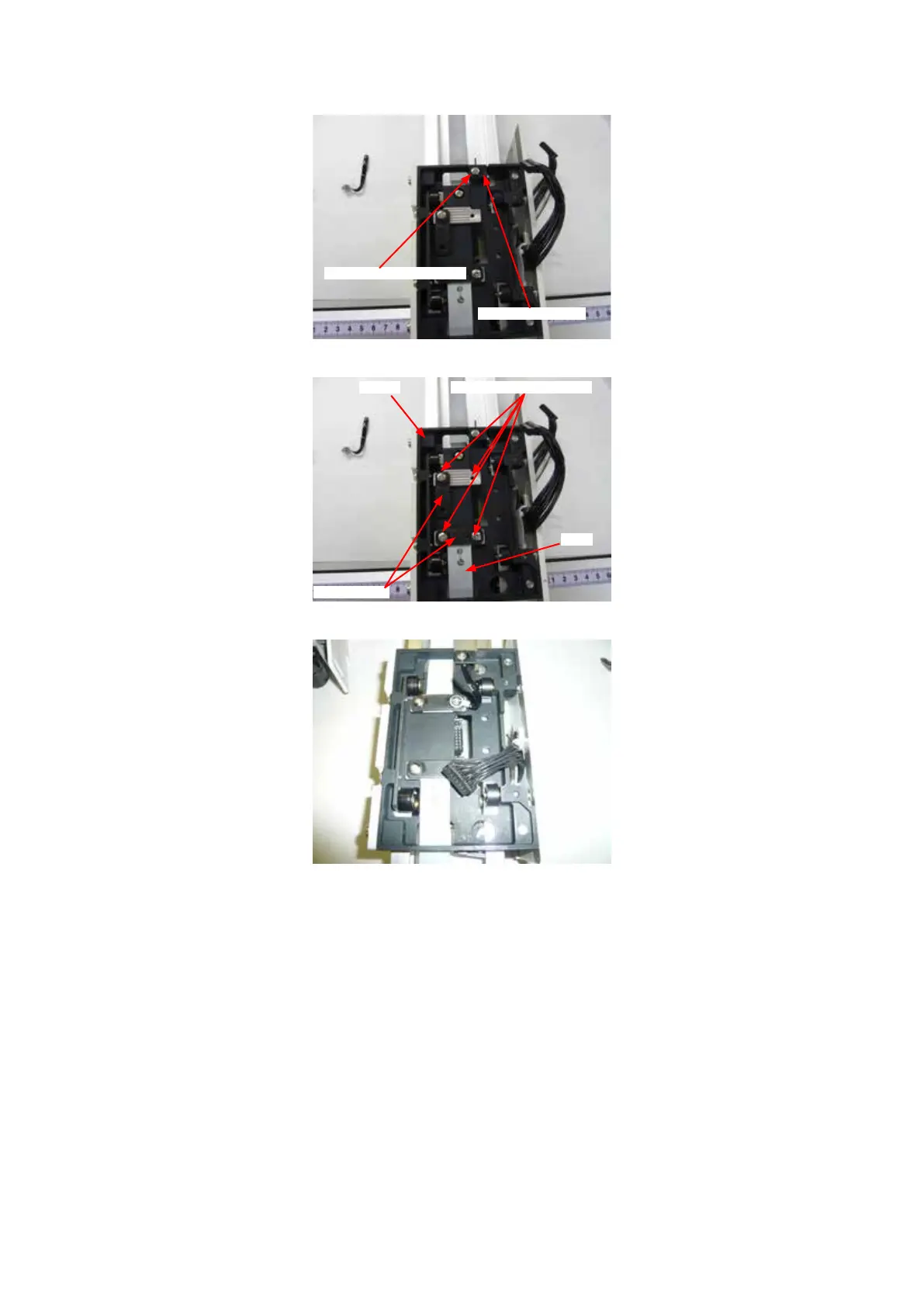

(12) Install the Y home sensor dog to the Y slider.
M3L4 binding head screw
Y home sensor dog
(13) Install the Y belt to the Y slider.
M3L6 binding head screw
Y belt stopper
Y slider
Y belt
(14) Connect cable to the connector J62 on the pen ex board.
(15) Adjust the Y belt tension (See the section 7.5.6).
