FC2250-UM-251-9370 7-49
7. DISASSEMBLY AND ADJUSTMENT

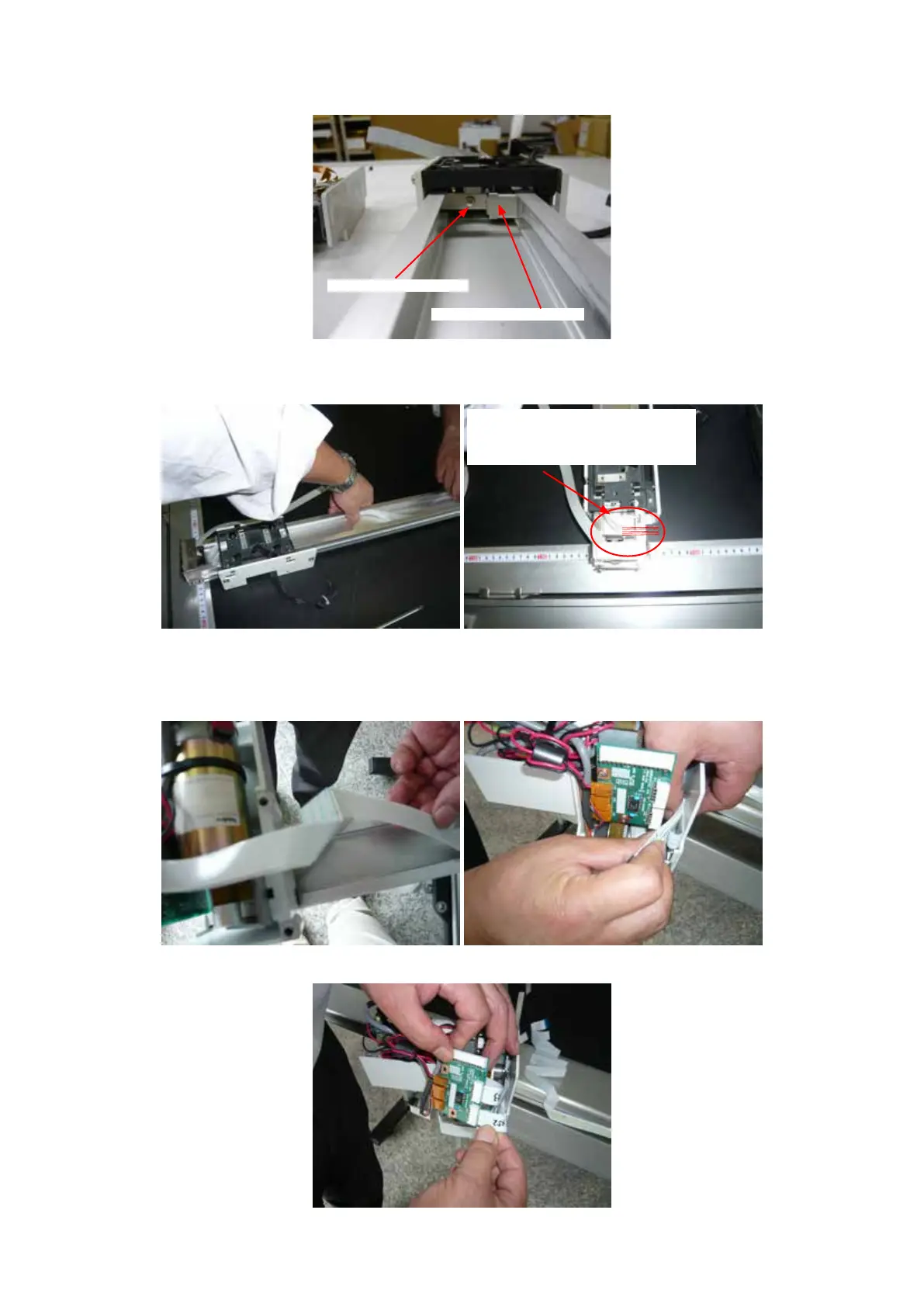

(7) Install the exible cable xing bracket.
M3L6 binding head screw
Flexible cable xing bracket
(8) Move the Y slider to the bottom end of the Y bar, and then adjust the exible cable position as shown in
the picture below.
Have 2 mm gaps between each cable
and plastic strip.
Have 2 mm gap from Y bar end.
(9) Peel off the protection sheet from the adhesion tapes, and then install the Y exible cable assembly into
the Y bar.
(10) Fold the Y exible cables at Y rear end to t into the Y end cover as shown in the picture below.
(11) Connect two Y exible cables to the pen ex board.
To Next Page
