FC2250-UM-251-9370 7-48
7. DISASSEMBLY AND ADJUSTMENT
How to reinstall the Y exible cable
(1) Prepare the Y exible cable assembly (See the section 7.5.8).
(2) Clean the Y rail to remove the adhesion tapes.

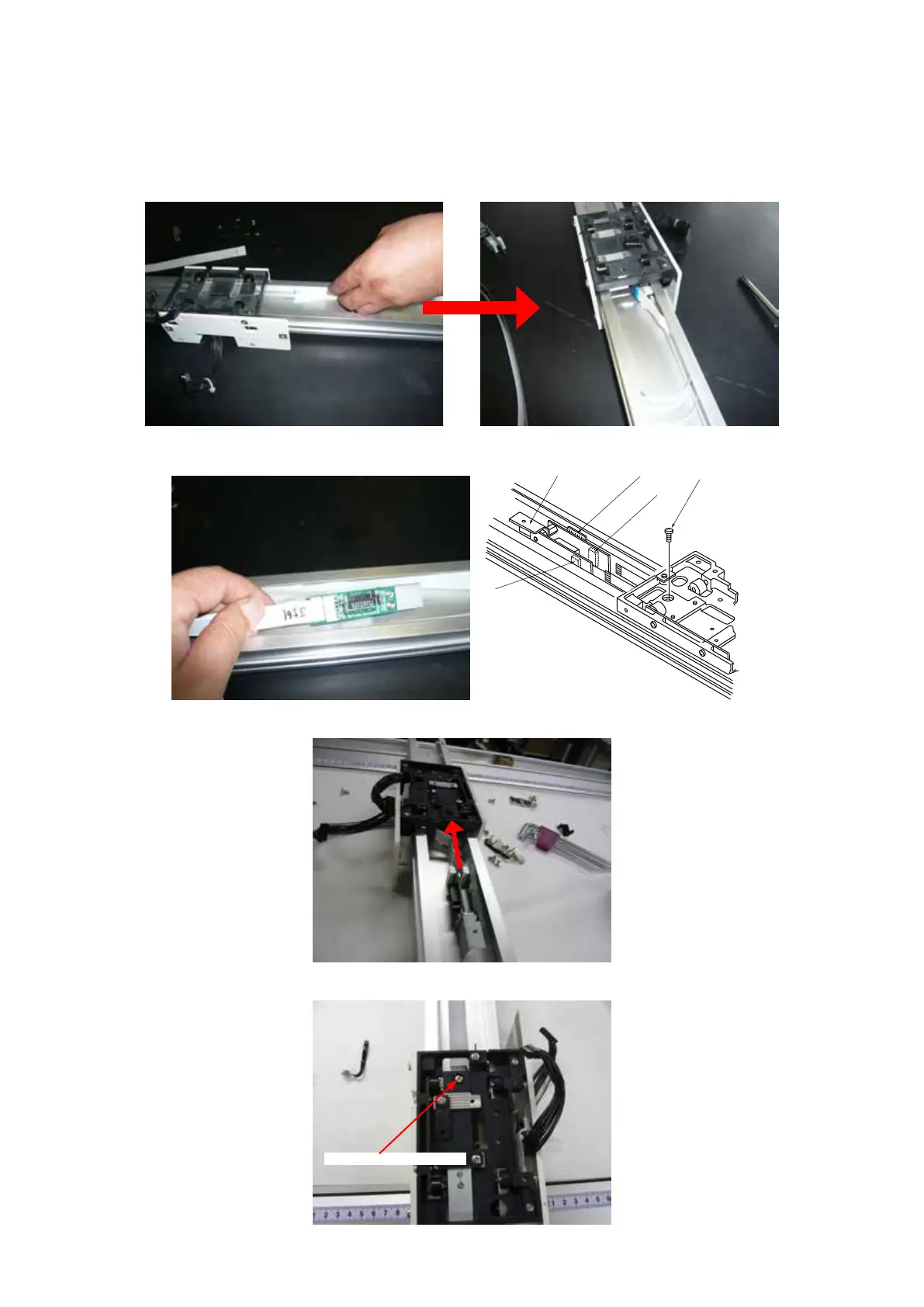

(3) Insert the Y exible cable assembly as shown in the picture below.
(4) Connect the Y exible cable to the J671 and J561 on the pen ex board.
J671
J561
J562
Board Bracket
Screw
（
A)
(5) Insert the pen ex board to the Y slider.
(6) Tighten the screw to hold the pen ex board bracket.
M3L4 binding head screw
