7. DISASSEMBLY AND ADJUSTMENT
(7) If the perpendicularity cannot be satisfactorily adjusted by performing the preceding Steps (1) to (6),

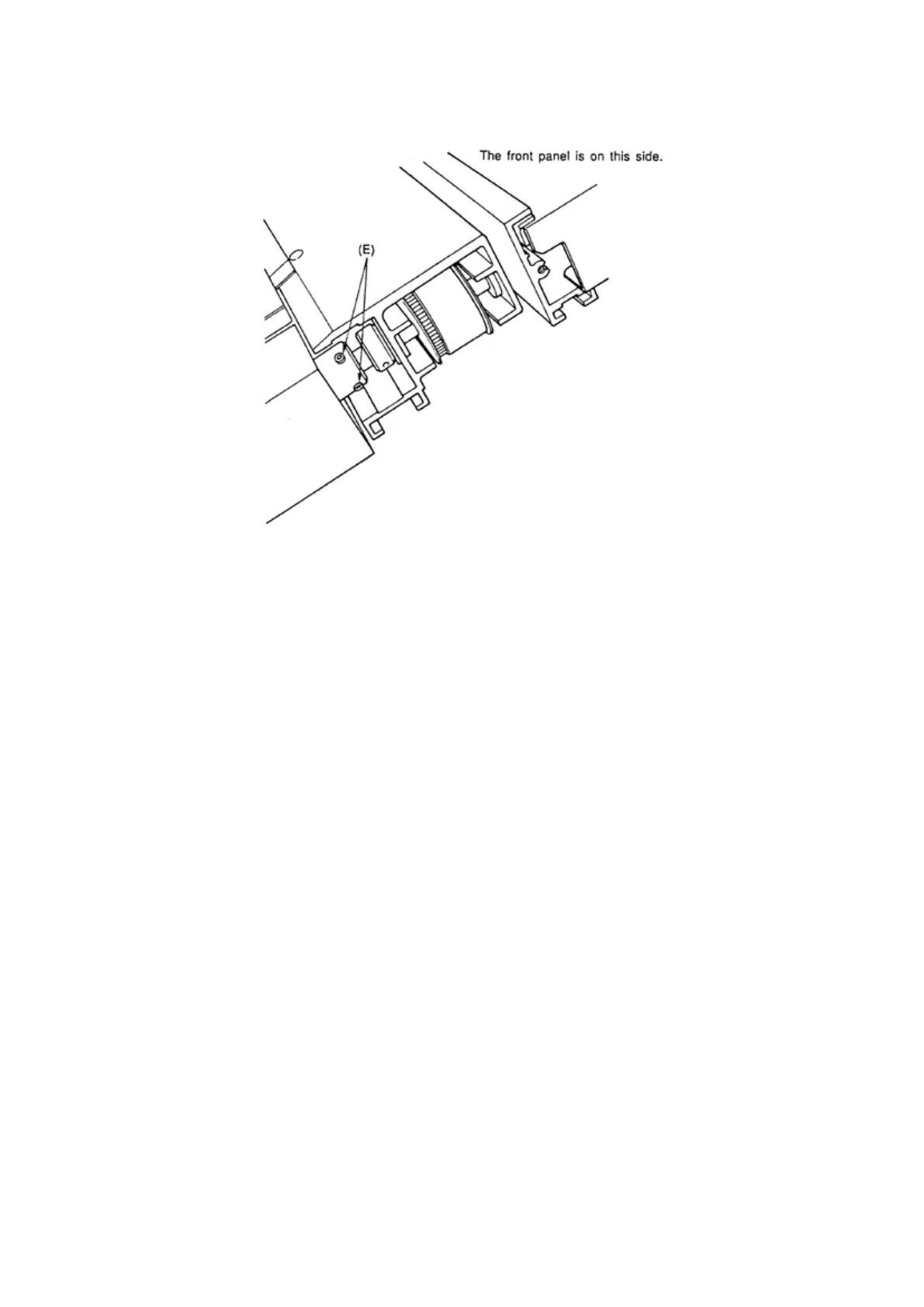

repeat adjustment after loosening the two 3 mm setscrews indicated by the (E) arrows.
(8) You will be able to adjust the perpendicularity precision by performing the electrical adjustment for ne
adjustment. (See section 8.12 Adjusting the Distance and the Perpendicularity Accuracy.)
