7. DISASSEMBLY AND ADJUSTMENT

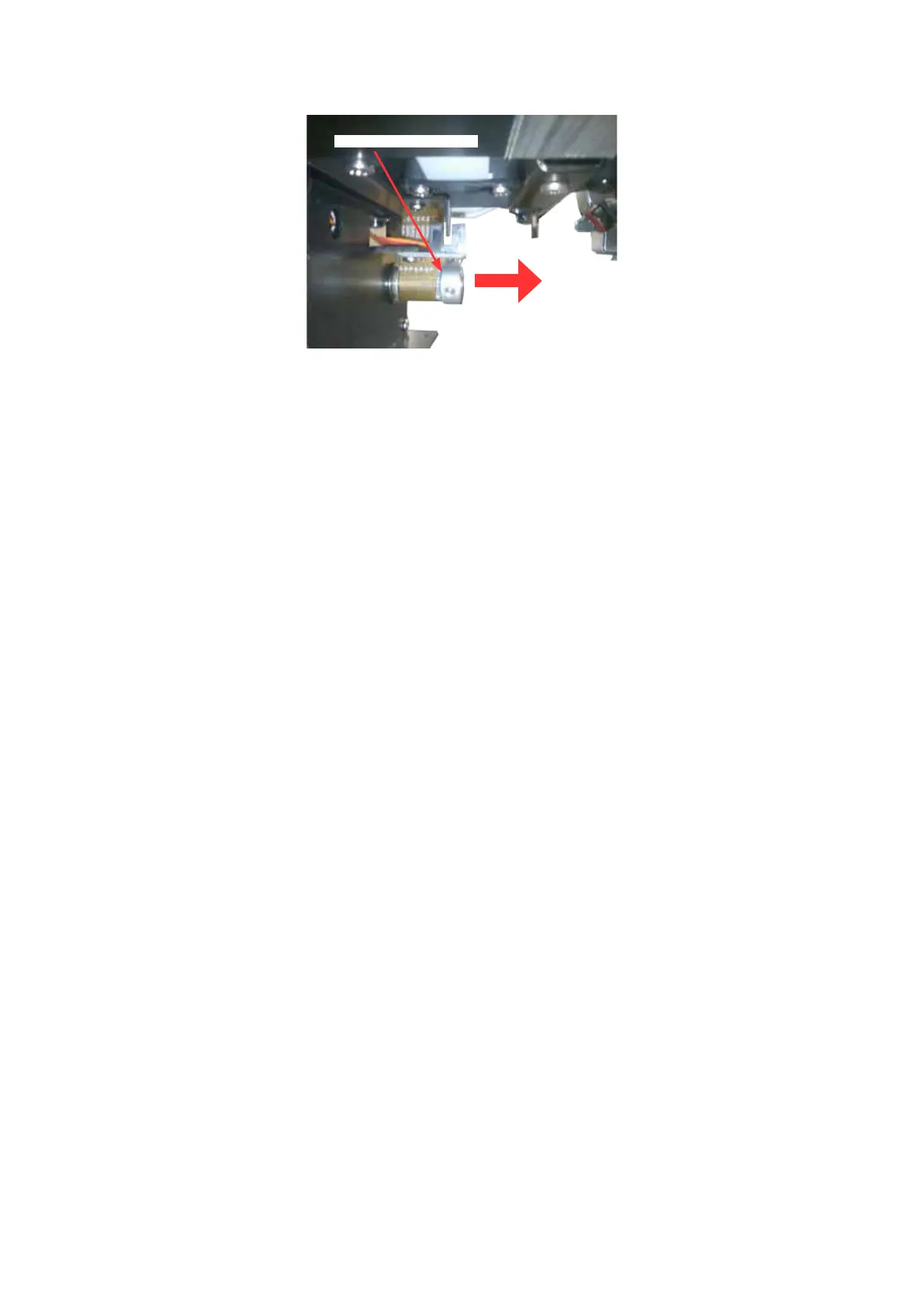

(6) Pull out the X axis rst drive pulley shaft and the X axis second drive pulley together.
X axis second drive pulley
How to reinstall the X motor belt
(1) Reattach the X motor belt in the reverse order in which it was detached.
(2) Adjust the X motor belt tension when installing the X motor (See section 7.2.6).
(3) Apply a few quantity of the silicon grease to the belt and the tooth of pulley.
