GRAPHTEC FC2250 - Page 59

FC2250-UM-251-9370 7-11
7. DISASSEMBLY AND ADJUSTMENT

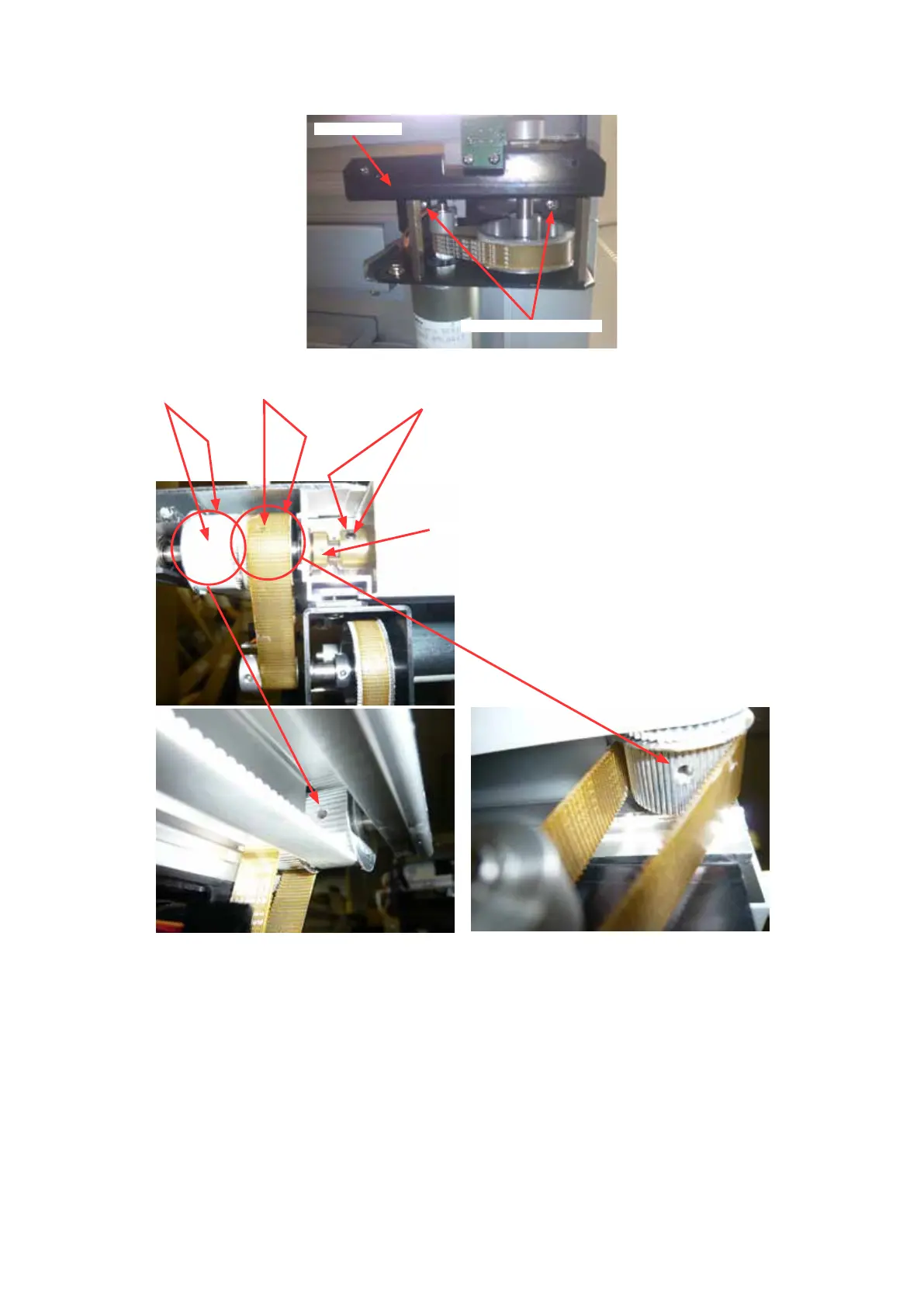

(8) Remove the two M4L6 binding head screws holding the X motor bracket, and then detach it.
X motor bracket
M4L6 binding head screw
(9) Loosen the set screws holding the X rear pulley, the second X drive pulley, and the rear X shaft coupler.
Set screw
Set screw
Set screw
Set screw
