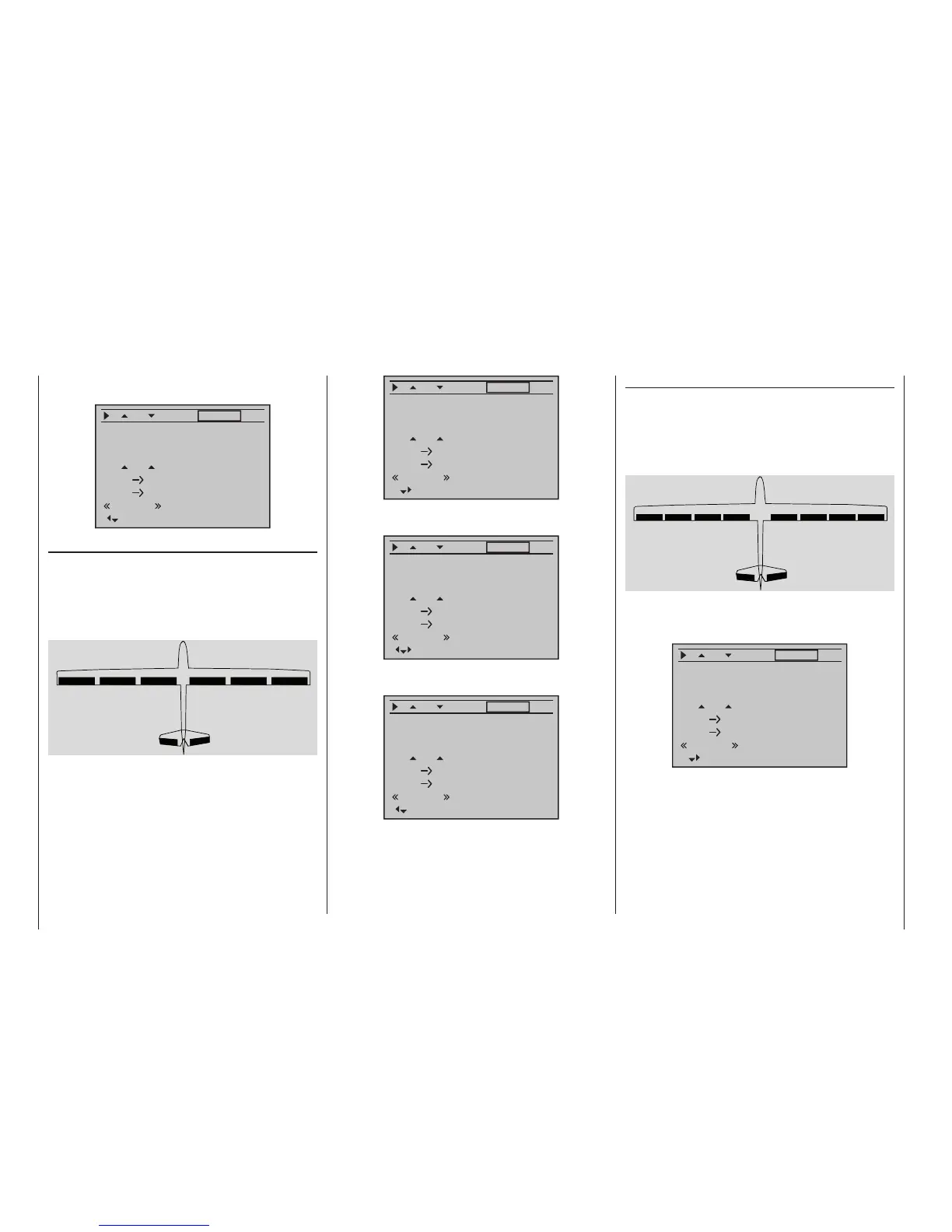

Program description - Wing mixers
… are shown, and – one further “step” to the right – all
options for the second flap pair as well:
FL
0%
+100%
fl.pos
EL FL 0%0%
+100%
FLAP2
normal
Diff.
0%
Ail-tr
AI
0%
0%
EL FL Off.
0%
–––
Model type: “4AIL 2FL”
If you have connected the servos to the receiver as
described on page 65, and selected them for the
appropriate tasks in the »Model type« menu, see page
98, of the twelve-channel
mc-20 HoTT transmit-
ter only, then the abbreviations “AIL”, “AIL2” and “FL2”
refer to the following control surfaces:
AI
left
AI2
left
FL
left
FL
right
AI2
right
AI
right
Since the options available on the wing mixer menu
and its sub-menus vary according to the number of
aileron and flap servos specified on the »Model type«
menu, page 98, the list contains only those set-up
options available for the given model.
This means that if values are preset to “4AIL 2FL”, then
all configuration options for the first aileron pair …
FL
0%
0%
fl.pos
EL FL 0%0%
0%
AILE
normal
Diff.
0%
Ail-tr
AI
+100%
+100%
EL FL Off.
0%
–––
… are shown, and – one “step” to the right – all options
for the second aileron pair …
FL
0%
0%
fl.pos
EL FL 0%0%
0%
AILE2
normal
Diff.
0%
Ail-tr
AI
+100%
+100%
EL FL Off.
0%
–––
… are shown, and – one further “step” to the right – all
options for the flap pair as well:
FL
0%
+100%
fl.pos
EL FL 0%0%
+100%
FLAP
normal
Diff.
0%
Ail-tr
AI
0%
0%
EL FL Off.
0%
–––
Model type: “4AIL 4FL”
If you have connected the servos to the receiver as
described on page 65, and selected them for the
appropriate tasks in the »Model type« menu, see page
98, of the twelve-channel
mc-20 HoTT transmit-
ter, then the abbreviations “AIL”, “AIL2”, “FL” and “FL2”
refer to the following control surfaces:
AI
left
AI2
left
FL
left
FL2
left
FL2
right
FL
right
AI2
right
AI
right
Since selecting “4AIL 4FL” means choosing the maxi-
mum number of control surface servos, the columns
“AILE” …
FL
0%
0%
fl.pos
EL FL 0%0%
0%
AILE
normal
Diff.
0%
Ail-tr
AI
+100%
+100%
EL FL Off.
0%
–––
… and “AILE2” …
