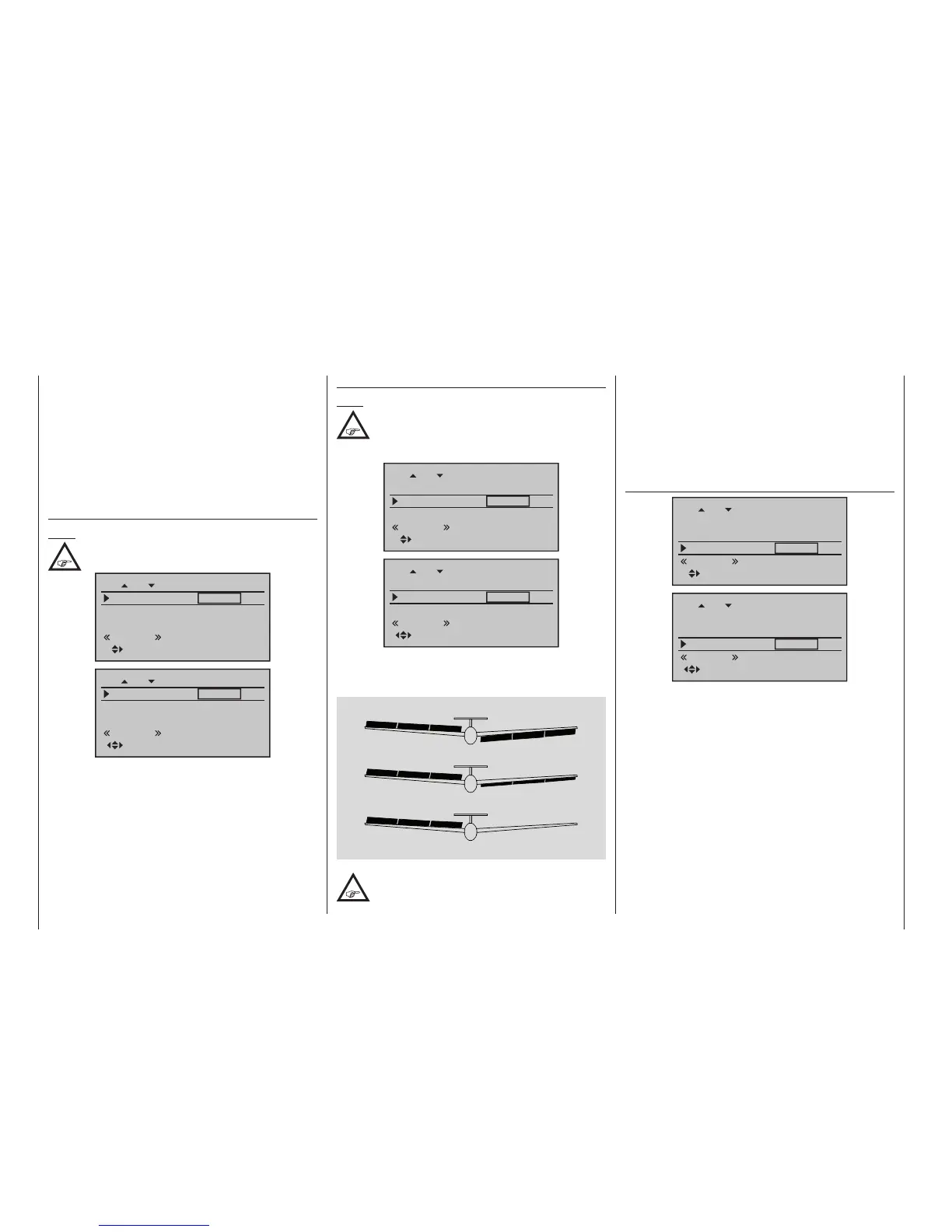

Program description - Wing mixers
the ailerons with less of a deflection, i. e. the mixer ratio
should be smaller than 100 %.
The adjustment range of -150 % to +150 % means the
direction of deflection can be adjusted, depending on
the direction of rotation of the servos, to suit the ailer-
ons.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset the given active (in-
verse video) field to its default value shown in the figure.
Ail-tr (Aileron trim)
Note:
Suppressed by “2AIL 1FL”.
0%
AILE
0%
+100%
+100%
fl.pos
normal
Diff.
Ail-tr
AI
0%
FLAP
0%
0%
0%
fl.pos
normal
Diff.
Ail-tr
AI
In this line, you specify the percentage rate with which
aileron trim is to affect “AILE”, “FLAP” and – if pre-
sent – “AILE2” and/or “FLAP2”.
The available range of values is -150 % to +150 %, rela-
tive to the adjustment range of the trim lever.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset the given active (in-
verse video) field to its default value shown in the figure.
Diff. (Differential for aileron function)
Note:
With “2AIL 1FL”, at one level higher in the
»Wing mixers« menu, see gure on page
174.
0%
AILE
0%
+100%
+100%
fl.pos
normal
Diff.
Ail-tr
AI
0%
FLAP
0%
0%
0%
fl.pos
normal
Diff.
Ail-tr
AI
On this line, you set the aileron differential, plus the
differential for the FLAP and FLAP2 wing flaps – if the
latter are being activated as ailerons.
0% (normal)
50% (differential)
100% (split)
AI
FL
FL2
FL2
FL
AI
If you are unsure about the meaning of differ-
ential travel, please read the appropriate expla-
nation at the start of this section on page
168.
The setting range of -100 % to +100 % permits correct
differentiation direction adjustment regardless of the
direction of rotation of aileron and flap servos.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset the given active (in-
verse video) field to its default value shown in thefigure.
.pos. (Flap position)
0%
AILE
0%
+100%
+100%
fl.pos
normal
Diff.
Ail-tr
AI
0%
FLAP
0%
0%
0%
fl.pos
normal
Diff.
Ail-tr
AI
Here, you set the flight phase-specific wing flap posi-
tions for all of the flaps present on the model in ques-
tion. In this way, you can specify the flap positions that
apply to each flight phase.
The adjustment range of -100 % to +100 % makes it
possible to set the correct direction of travel regard-
less of the direction of rotation of the aileron and flap
servos.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset the given active
(inverse video) field to its default value shown in the
figures.
