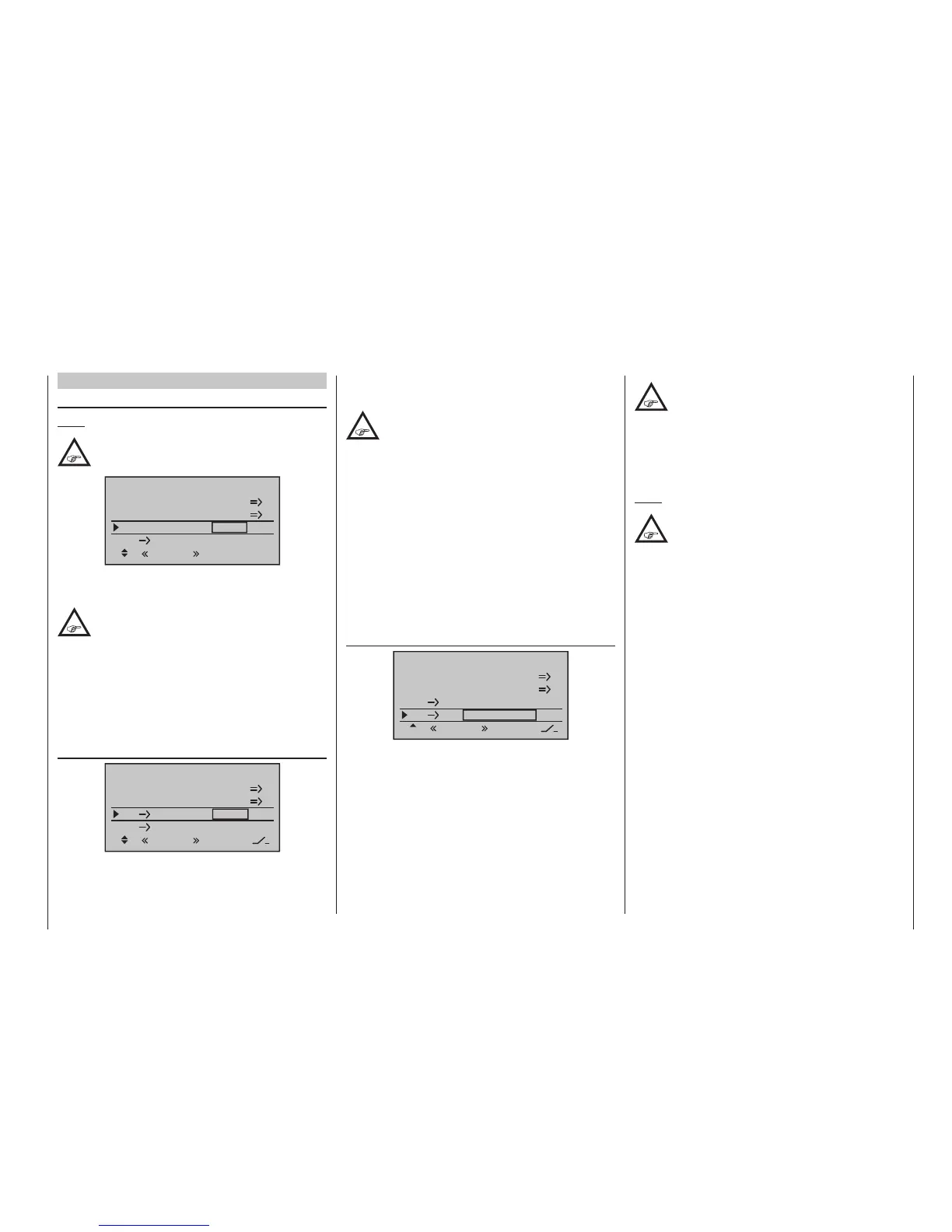

Program description - Wing mixers
Display “Wing mixer”
Aile.diff. (Aileron differential)
Note:
Only for “2AIL 1FL”. For the “2/4AIL 2/4 FL”
selection, this is included on the Multi-ap
menu, see page 177.
Aile.diff
Brake settings
0%
AI
0%
Wing mixers
–––
RU
Multi-flap menu
normal
On this line you can set the aileron differential for the
two aileron servos.
If you are unsure about the meaning of differ-
ential travel, please read the appropriate expla-
nation at the start of this section on page
168.
The setting range of ±100 % permits correct differentia-
tion direction adjustment regardless of the direction of
rotation of aileron and flap servos.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset a changed value in
a given active (inverse video) field back to 0 %.
AI RU (Aileron Rudder)
Brake settings
AI
0%
Wing mixers
FL EL 0%0%
–––
–––
RU
Multi-flap menu
normal
Here, you can set the degree to which the rudder
follows commands acting on ailerons. This is used
in particular in connection with aileron differential to
suppress adverse yaw and thus make it easier to fly
“clean” curves. You can of course still issue separate
commands to the rudder.
The mixer direction is typically chosen to en-
sure that the rudder moves in the direction of
the aileron that is deflected upwards.
Settings are always made symmetrically relative to the
neutral point of the aileron stick.
The adjustment range of ±150 % lets you set the direc-
tion of deflection as appropriate. Optionally, this mixer
can be activated and deactivated with of the switches
or a control switch that is not self-restoring so the
model can be controlled with only the ailerons or rud-
der if desired.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset a changed value in
an active (inverse video) field back to 0 %.
A value of around 50 % is generally an excellent starting
point.
FL EL (Flaps Elevator)
Brake settings
AI
0%
Wing mixers
FL EL 0%0%
–––
–––
RU
Multi-flap menu
normal
When setting camber-changing flaps, one side-effect
can be to generate moments causing movement
around the transverse axis. Equally, however, it may
also be desirable that e. g. your aircraft model opts for
a more pacey flight style with the flaps slightly raised.
This mixer can be used to achieve both results.
With this mixer, the extension of the flaps – depend-
ing on the value configured – automatically ensures the
elevator position follows suit. Symmetrical or asym-
metrical settings relative to the neutral point of the flap
control are possible.
If required, the mixer can be switched on or off
by assigning a switch in the right column.
Values can be set in the range ±150 %. The
“typical” values configured for this mixer are single-digit
or low two-digit values.
A simultaneous tap on the or keys of the right
four-way button (CLEAR) will reset a changed value in
a given active (inverse video) field back to 0 %.
Note:
Have you, as described under “FL” on
page 179, assigned to a control or switch in
the menu “Transmitter control settings”, then
this also affects this mixer.
