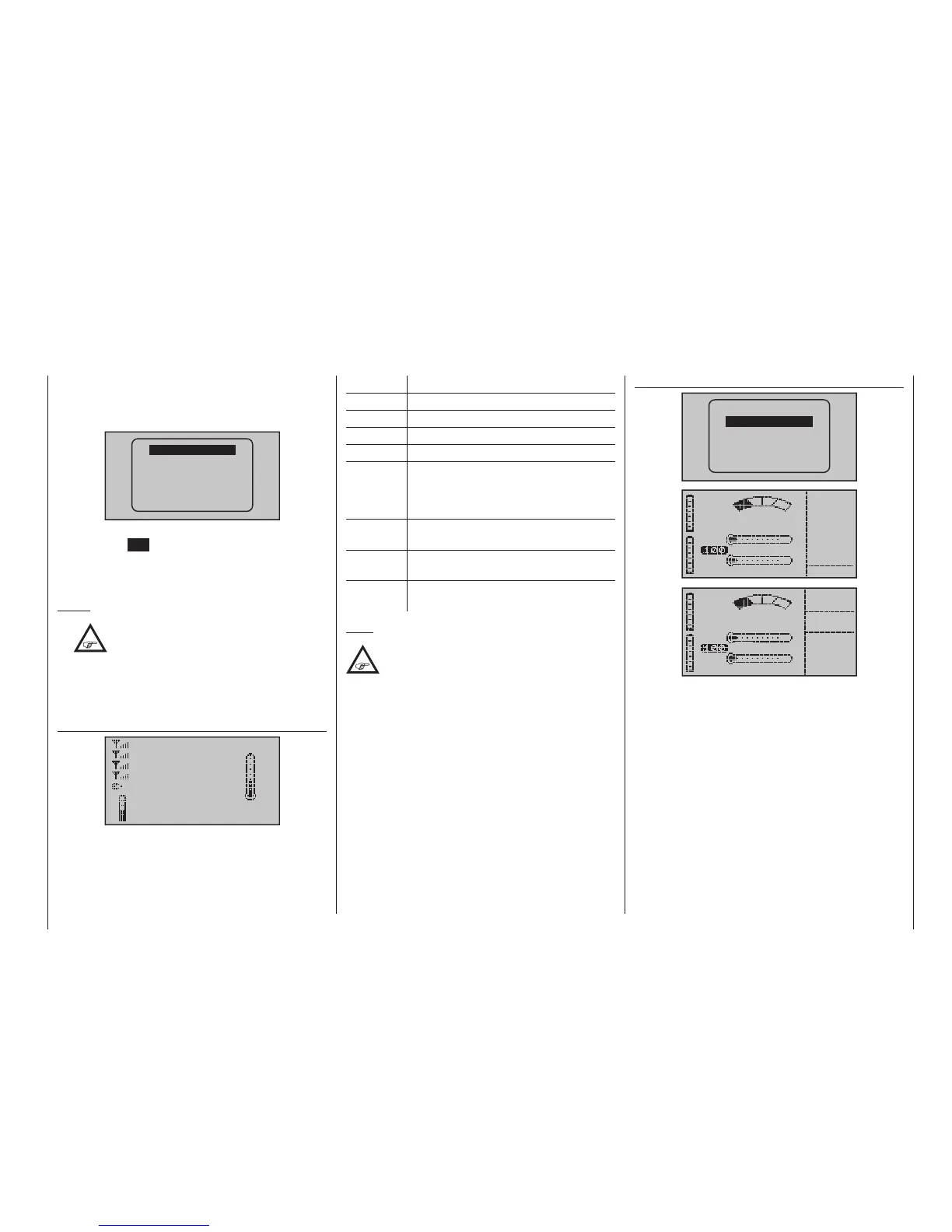

41
Transmitter description - Telemetry data display
If no sensor is activated, then all display lines and
sensors described in the next column, except for the
“RECEIVER” line, are blended out of the display and
the selection list:
RX–S QUA: 100%
RX–S ST : 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–SPG.:4.8 TMP
V–PACK: 10ms
CH OUTPUT TYPE:ONCE
GENERAL
ELECT. AIR
VARIO
GPS
RECEIVER
AIR ESC
The selection can be confirmed right away by activat-
ing the centre SET key of the right four-way button or
by simply waiting until, after a brief pause, the main
display of the given selected sensor appears automati-
cally.
Notes:
•
The sequence of the below described dis-
plays is a consequence – starting from the
given main display – of taps on the key.
• More details about the following named modules
can be found in the appendix and in Internet at
www.graupner.de in the web page for the given
product.
RECEIVER
RX–S QUA: 100%
RX–S STR: 100%
TX–dBm: –33dBm
RX–dBm: –33dBm
RX–VOLT:4.8V TMP
L–PACK: 10ms
CH OUTPUT TYPE:ONCE
R–LOW V:4.6V +22°C
This screen presents the »RX DATAVIEW« of the
»Telemetry« menu’s »SETTING & DATAVIEW«
sub-menu, see page 238, with data processed and
displayed graphically.
The displayed items are as follows:
Value Explanation
RX-S QUA signal quality in %
RX-S STR signal strength in %
RX-dBm Reception power in dBm
TX-dBm transmit power in dBm
L-PACK Indicates the longest time span in ms
in which data packages are lost in the
transmission from the transmitter to the
receiver.
RX-VOLT current operating voltage of the
receiver's power supply in volts
R-LOW V Lowest receiver operating voltage since
last startup, in volts
TMP the thermometer depicts the receiver's
current operating temperature
Note:
Detailed explanations of the “Value” column
quoted terms, see “RX DATA VIEW” on page
238.
GENERAL MODULE
RX–S QUA: 100%
RX–S ST : 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–SPG.:4.8 TMP
V–PACK: 10ms
CH OUTPUT TYPE:ONCE
ELECT. AIR
VARIO
GPS
RECEIVER
AIR ESC
GENERAL
0.0V
BAT1
BAT2
0.0V T2 0°C
T1 0°C
E FUEL F
CELL.V
1:0.00
2:0.00
3:0.00
4:0.00
5:0.00
6:0.00
0
0.0V
BAT1
BAT2
0.0V T2 0°C
T1 0°C
E FUEL F
ALT
0m
0m1
0m3
0.0A
POWER
0.0V
0
If attached to the receiver, this screen will display the
data acquired by a General-Engine module, No. 33610,
or a General-Air module, No. 33611. More details
about these modules can be found in the appendix or
in Internet at www.graupner.de in the web page for the
given product.
Depending on how this module is equipped with sen-
sors, this screen can permanently display the data
shown in the table below.
At the top left of the switching state of flux and the right
of it a level indicator of the fuel tank. Law including the
used energizing period in the current fuel quantity in ml.
Among the left of possibly connected to the module
temperature / voltage sensors (No. 33612 or 33613),
if necessary, measured current voltages of up to two
battery packs (BAT1 and BAT2) and right next to the
