Transmitter description - Telemetry data display
associated temperatures.
The inverse display between “BAT1” and “BAT2” visual-
izes the quality of the incoming signal from the trans-
mitter in%.
On the right side alternately either a list of the current
cell voltages is an output of up to six-cell LiPo bat-
tery or the current altitude relative to location, climb
/ descent in m / 1s and m / 3 s, the actual current in
amperes and actual voltage of the battery connectet to
the module. The displayed items are as follows:
Value Explanation
ON Current control ON
BAT1 /
BAT2
battery 1 or 2
100
Signal quality in % (RX-S QUA)
FUEL fuel level / tank gage
E / F
empty / full
ml Used fuel quantity in ml
T1 / T2 temperature of sensor 1 or 2
CELL V cell voltage of cells 1 … max. 6
ALT current altitude
0m1 m/1 s ascent/decent rate
0m3 m/3 s ascent/decent rate
V battery voltage
A current draw in amperes

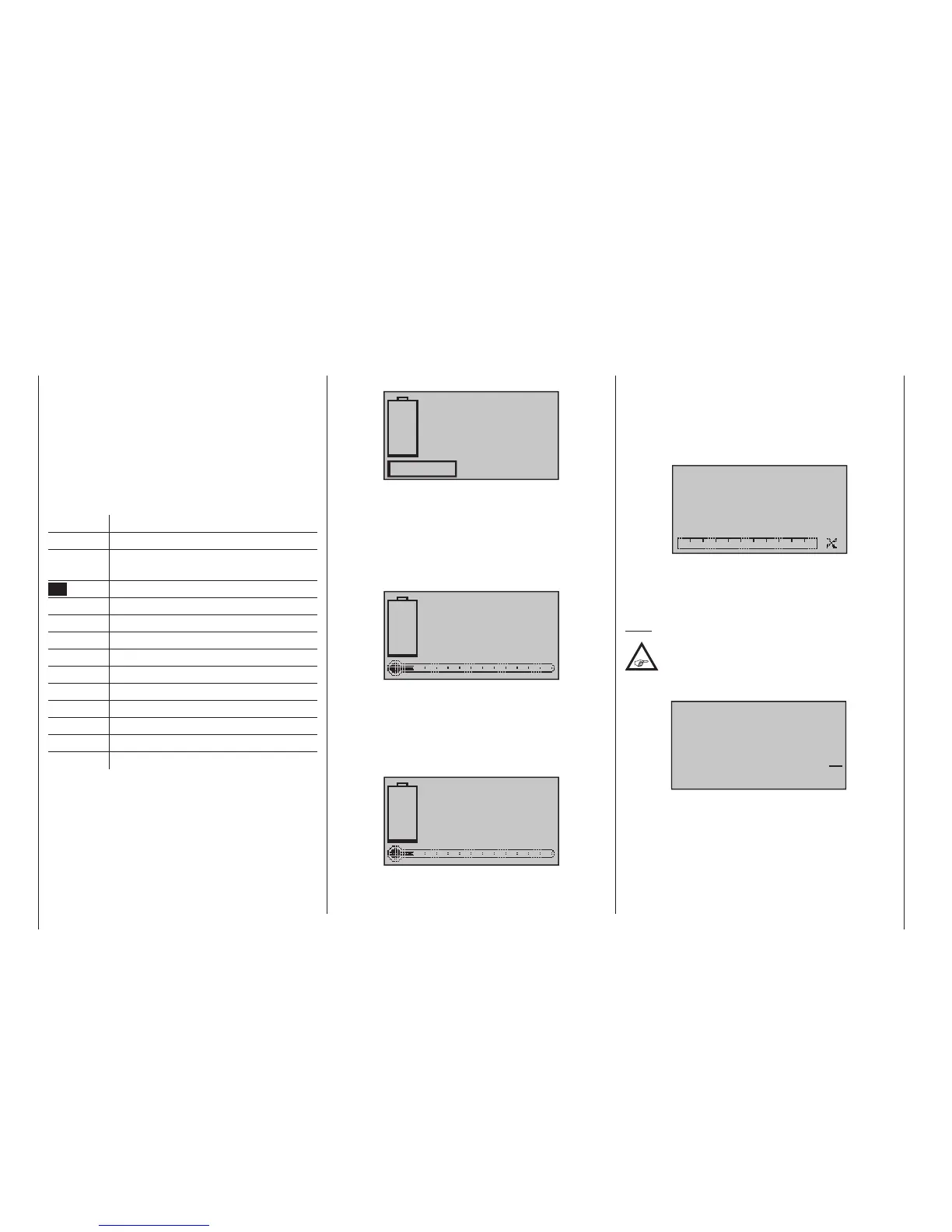

Battery and consumption indicators
0.0V
0.0A
0mAh
0ml
This display depicts current voltage, current cur-
rent draw and, if attached, the expended capacity of
“Batt1” connected to the General-Engine module (No.
33610) or General-Air (No. 33611) module And at the
last line the value of the Fuel sensor (No. 33614) regis-
ters the fuel consumed in ml.
SENSOR 1
0.0V
0°C
SENSOR 1
If attached, this display depicts currently measured
voltage and temperature from a temperature/voltage
sensor, No. 33612 or 33613, connected to “T(EMP)1”
of the General-Engine module (orderno.33610) or the
General-Air module (No.33611).
SENSOR 2
0.0V
0°C
SENSOR 2
If attached, this display depicts currently measured
voltage and temperature from a temperature/voltage
sensor, No. 33612 or 33613, connected to “T(EMP)2”
of the General-Engine module (No.33610) or the Gen-
eral-Air module (No. 33611).
Rotary speed sensor
rpm
0
0
0
If attached, this display depicts the measured rotary
speed of a speed sensor (No. 33615 or 33616) at-
tached to a General-Engine module (No.33610) or a
General-Air module (No. 33611).
Note:
The appropriate blade count must rst be set
in the module’s telemetry menu before the
correct speed can be displayed.
Vario
0.0
0
m
m
s
If attached, this display will depict the altitude (in m)
relative to location, starting location as well as the
current rate of ascent/descent (in m/s) data origina ting
from a Vario integrated into a General-Engine module
(No. 33610) or General-Air module (No. 33611).
