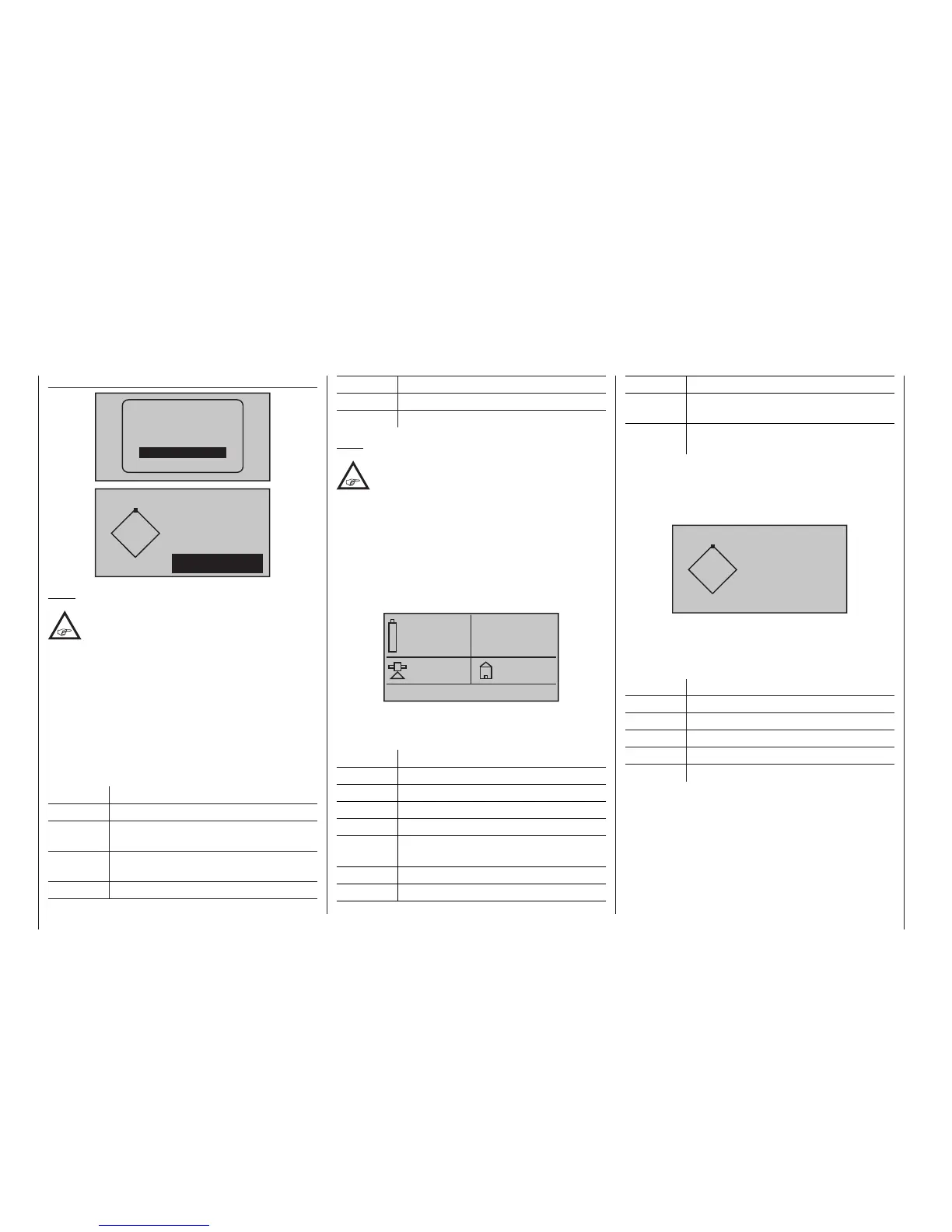

Transmitter description - Telemetry data display
GPS
RX–S QUA: 100%
RX–S ST : 100%
TX–dBm: 33dBm
RX–dBm: 33dBm
RX–SPG.:4.8 TMP
V–PACK: 10ms
CH OUTPUT TYPE:ONCE
RECEIVER
AIR ESC
GENERAL
ELECT. AIR
VARIO
GPS
N
RXSQ 0
DIS 0m
ALT 0m
0.0m/1s
0m/3s
0m/10s
W
E
S
Kmh
0
N 0°00.0000
E 0°00.0000
Note:
As long as the two fields are highlighted in
black on the bottom right, yet there are no
current GPS data.
If attached to the receiver, this display will depict the
data from a GPS module with integrated Vario, No.
33600.
Aside from the model’s current position and speed, the
centre section of this screen will also display current
altitude with respect to the starting location as well as
the model’s current ascent/decent rate in m/1 s and
m/3 s, current reception quality and the model’s dis-
tance from its starting location.
The displayed items are as follows:
Value Explanation
W / N / E / S west / north / east / south
Kmh Speed over ground, according to GPS
system
RXSQ return channel signal quality, see page
238
DIS distance
ALT current altitude with respect to starting
m/1s m/1 s ascent/decent rate
m/3s m/3 s ascent/decent rate
Note:
With firmware version 1.072 the GPS function-
ality of the mc-16 and mc-20 HoTT has been
extended: Once out of what ever reason, the
telemetry link to the model longer than three seconds
interrupted and as long as the transmitter is not
switched off, the last remain get correctly transmitted
GPS data is saved in the transmitter’s memory. These
data can be read from the GPS display when required
by return by appropriately pressing the four-way keys
of the transmitter.
Micro-copter display
0mAh
0:00
0.0V
0km/h
0
I:
Dir:
Alt: 0m
0°
0A
0m
0°
This screen displays the data generated by a HoTT-
compatible micro-copter. Key, reading from top left to
bottom right:
Value Explanation
V Actual voltage
“0:00“ Period switched on
mAh Battery capacity consumed
“0“ Position number of the satellites
km/h Speed over ground, according to GPS
system
Alt Actual altitude
Dir Direction of movement
I Actual current
m Distance from take-off point, according
to GPS system
° Position in degrees relative to take-off
point, according to GPS system
Any messages from the micro-copter sensor are dis-
played in the bottom line of the screen, which is empty
in the screen-shot shown above.
GPS
N
W
O
S
Kmh
0
km/h
DIS
m
m/s
ALT
m
0
0
0.0
0
If attached to the receiver, this display will depict the
data from a GPS module with integrated Vario, No.
33600.
The displayed items are as follows:
Value Explanation
W / N / E / S west / north / east / south
km/h speed
DIS horizontal distance in m
m/s ascent/decent rate in m/s
ALT altitude relative to starting location in m
