l. Reverse the clutch cylinder on the pressure machine; and remove the clutch C1 reset spring with same method.
m. Send the compressed air into the cylinder through the cylinder hole, remove the clutch piston from the clutch cylinder. Refer
to Figure 8.6.
4.clutch C3 cylinder
The procedure of removal of clutch C3 cylinder is shown as follows:
a. Remove the front sun gear assembly, thrust bearing and thrust washer from the clutch C3 cylinder asse bly , shown as Figure
8.7.
b. Remove the nylon thrust bearing, bearing block, needle thrust bearing and thrust bearing . From the clutch cylinder hub.

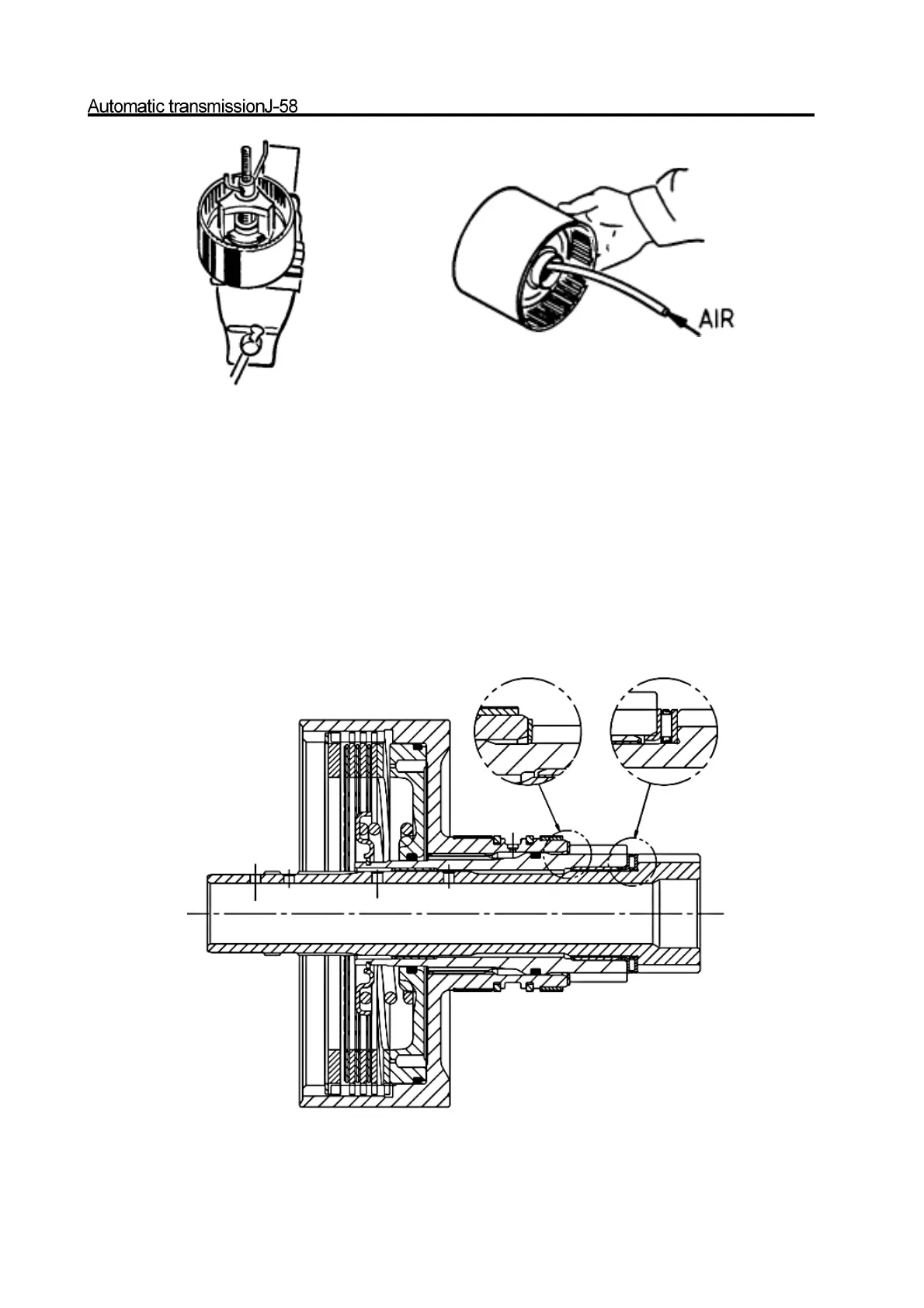

Figure 8.5 Impressed clutch reset spring
Figure 8.7 Clutch C3 and central gear assembly
Figure 8.6 Removal of C1, C2 and clutch C4 piston
