2. Operation of 4WD
The operating auxiliary steering column can be shifted to 4WD status.
For position of auxiliary steering column and corresponding operating
condition refer to table.
3. Caution for operation:
a. Do not use 4WD in good surface, otherwise the tyre and components
of drive system will be damaged easily and increase the consumption
of fuel, and cause the noise of drive system.
b. Please run in 1st-Gear under “4L” gear position when run in very
low speed in field.
Operating instruction of transmission SC5M4D-C

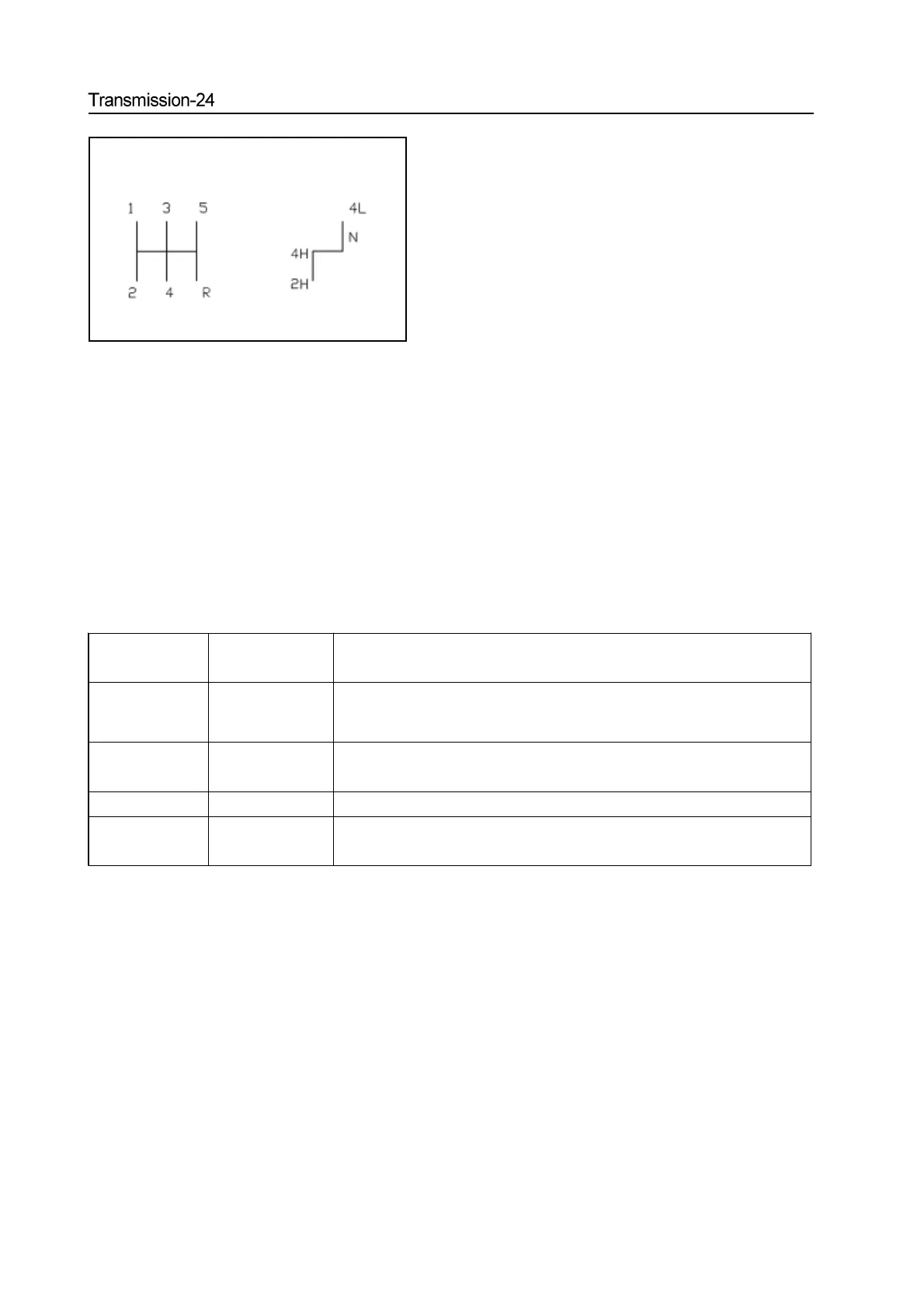

1.The schematic diagram of transmission operating gear position
is on the handle of steering column.
During the process after vehicle is started and in traveling, it must
step the clutch pedal to bottom before the shifting. If need shift from
5
th
-Gear to reverse-Gear, it should move the shifting bar to the neutral
position of 3rd/4th-Gear. Shift to R-Gear after stop the vehicle stably,
otherwise, it can not shift.
During the traveling process. It should always pay attention to the
shifting to make the vehicle matches to the speed of engine. The
correct shifting can improve the economical efficiency and prolong
the service life of engine. Do not shift from high-Gear to low-Gear on
the condition that the pointer of tachometer may enter into red area,
otherwise, the engine will be damaged.
Warning: Do not shift to reverse-Gear when the vehicle moves
forwardly, otherwise the transmission will be damaged.
hand hall of main steering column
hand ball of auxiliary steering column
Auxiliary steering
column position
drive Operating condition
2H 2WD Use this gear position when run in the general railway and high speed highway.
4H High speed 4WD
Use this gear position when run in the deep snowland, sand ground or uneven road
in normal speed.
N Neutral gear When use the gear position during using of winch, it could not drive the vehicle.
4L Low speed 4WD
Use this gear-position when run in uneven road such as mud land or climbing or
downward （especially when need increase the power）.
