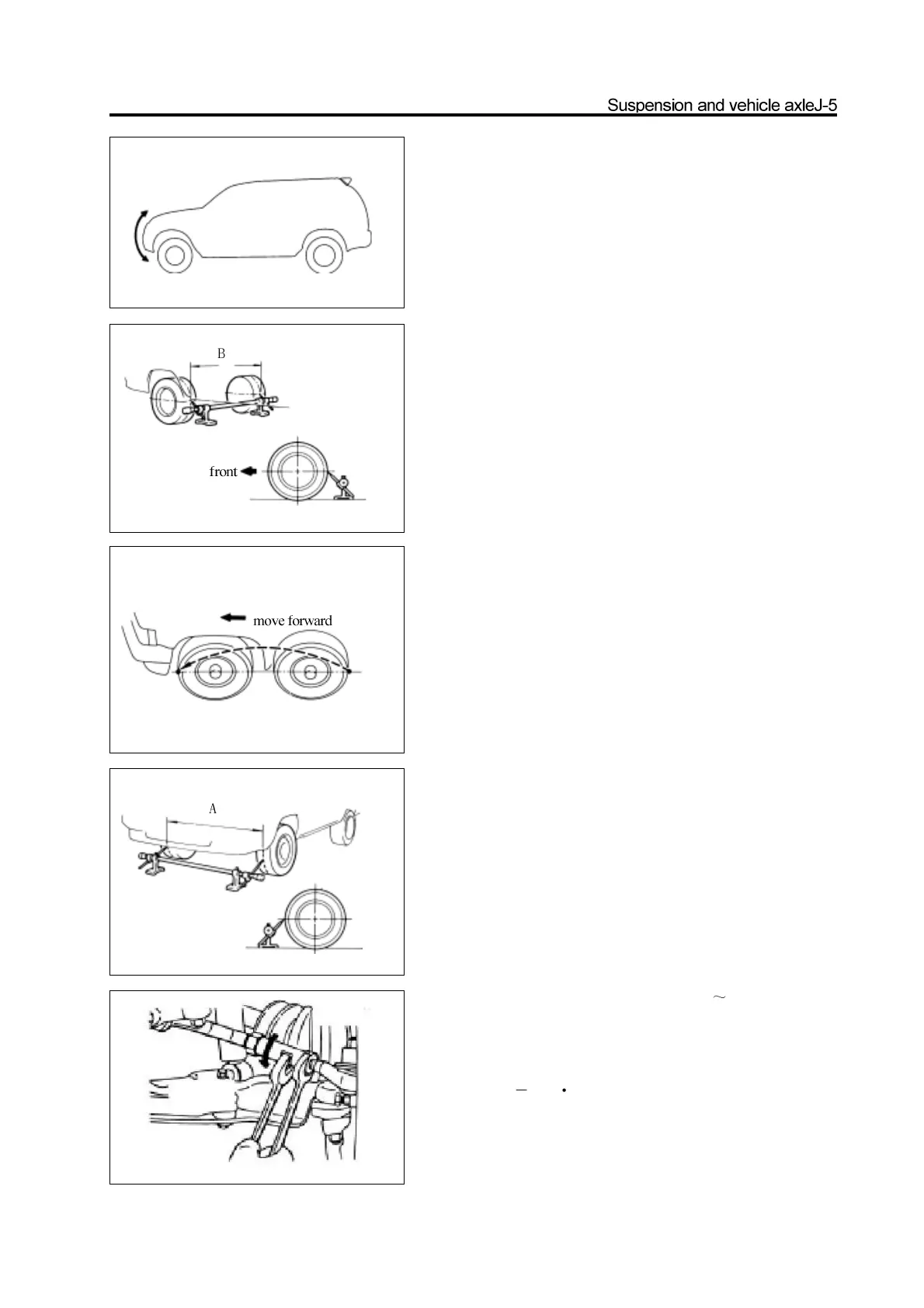

6. Adjust the wheel toe
Adjust the wheel toe according to the following method
a. Shake the car upwardly and downwardly to make the suspension
reach the stable status.
b. Push the car forwardly for 5m in flat ground when the front
wheel is in the straight forward position.
c. Mark the center of each rear wheel; measure the distance “B”
between the marks of left and right tyre.
d. Push the car forwardly to move the mark on the back of tyre to
the position of front instrument.
Remarks: if the tyre moves too far, repeat the procedure (b).
e. Measure the distance “A” ‘between the marks on front of tyre.
f. Measure the toe of wheel.
toe =B-A
Inspection standard: 0-2mm
If the toe does not consist with the specified value, it can be
adjusted by the left and right draw-bar.
Move the vehicle forwardly
g. Adjustment of toe: the standard value is 0 2mm. The toe is
adjusted by rotating the cross draw-bar. When adjust the toe, it
should rotate the cross draw-bar on left and right side uniformly.
After the adjustment, tighten the lock nut, the tightening torque
is 55
65N m.
