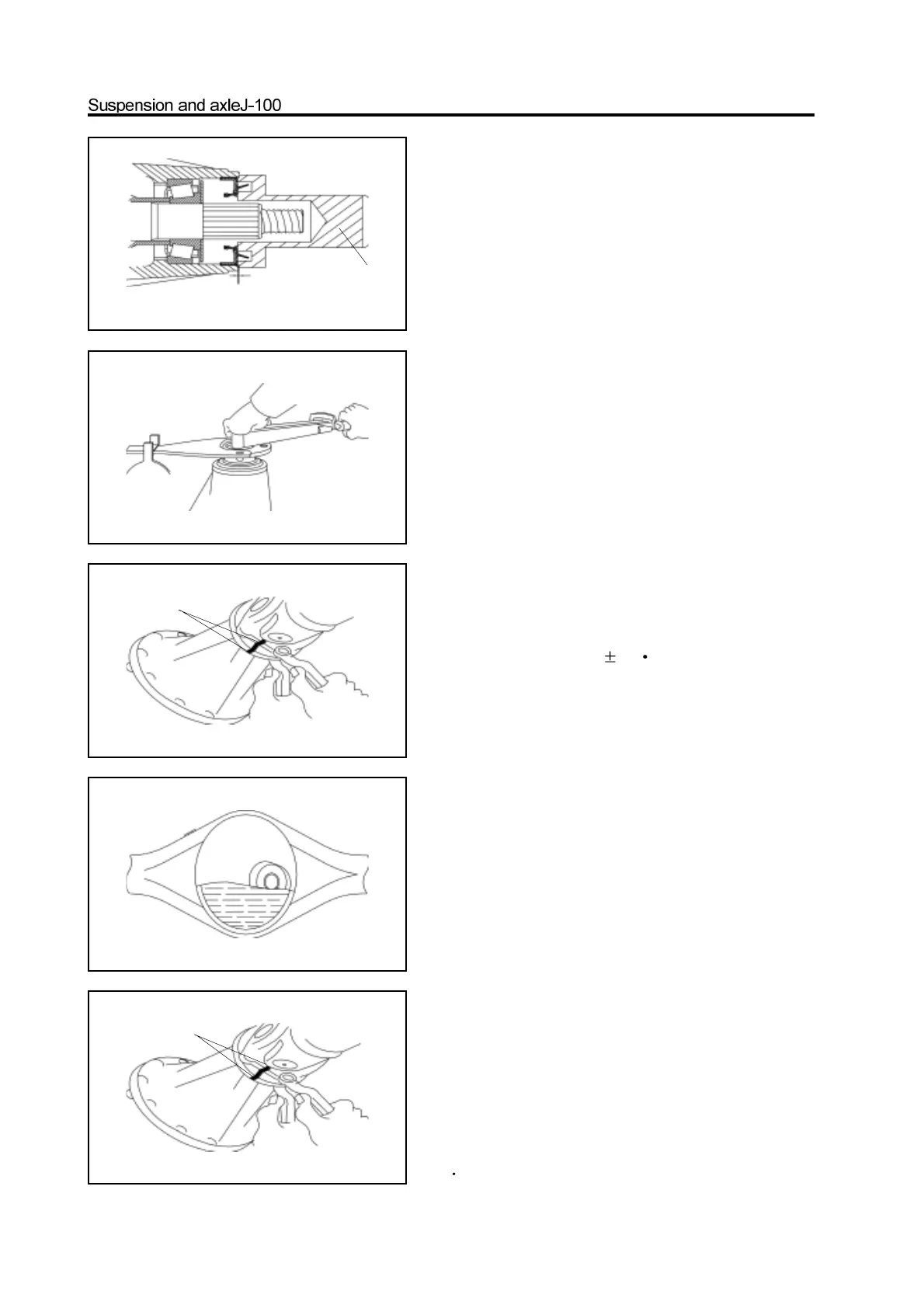

4. Install the new oil seal
a. Coat the lip of oil seal with the HP-R grease.
b. Use the special tools to knock in the new oil seal.
Insertion depth of oil seal: 1.0mm
5. Install the flange and dustproof cover assembly
6. Rivet the drive bevel gear nut.
7. Connect the drive shaft flange to the reducer
flange Align the assembly mark ; then connect them
by bolt.
Tightening force: 78 5N m
8. Check the oil level of reducerReplace the hyperbolic
gear oil if necessary.
Oil number : GL-5 hyperbolic gear
Viscosity : SAE80W/90
Amount: Filled with oil until the oil flows out form oil filling
port.
Removal of reducer
1.Remove the oil drain plug; drain the oil from the
reducer
2. Remove the rear axle
(Refer to Step 2 in “Disassembly of Rear Axle”)
3. Disconnect the drive shaft from the reducer
(Refer to step 1 in “Replace the Oil Seal on Car”)
4 Remove the assembly of reducer.
special tools
insertion depth: 1mm
assembly mark
assembly mark
