Stabilizer bar

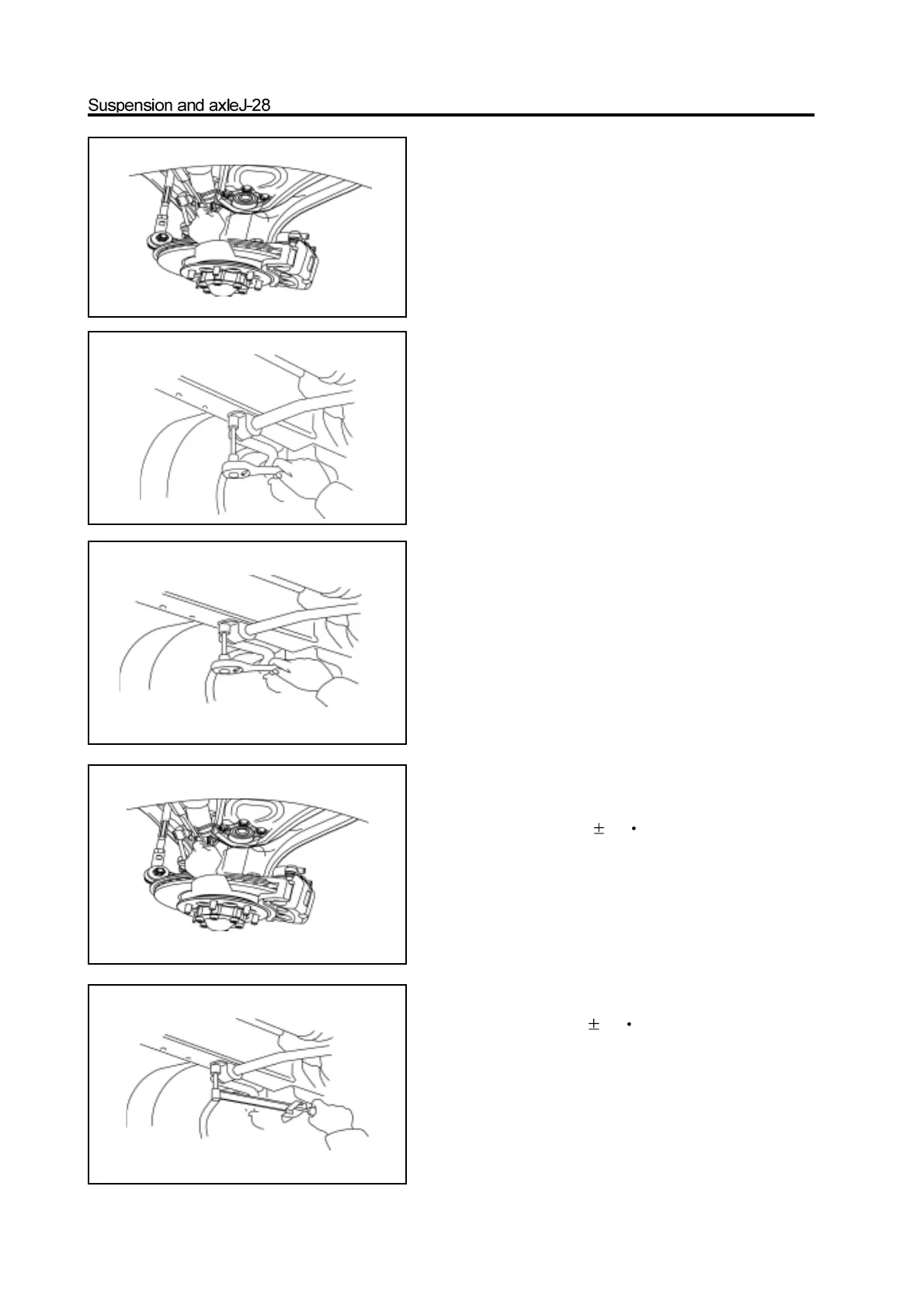

Disassembly of stabilizer bar
1. Disconnect the connecting bar which supports both
ends of the stabilizer bar form the stabilizer bar.
Use the inner hexagon spanner to fix the ball pin; remove the self-
locking nut.
2. Remove the bush and clip of stabilizer bar; remove
the stabilizer bar
Installation of stabilizer bar
1. Install the stabilizer bar on the carriage
Place the stabilizer bar in position; install the stabilizer bar bush
and clip on the carriage. Screw on and pretighten the bolt.
2. Connect the stabilizer bar to the connecting bar
Installand tighten the new nut to the specified torque
Tightening force: 63 5N m
3. Tighten the clip position bolt to specified torque.
Tightening force: 23 3N m
