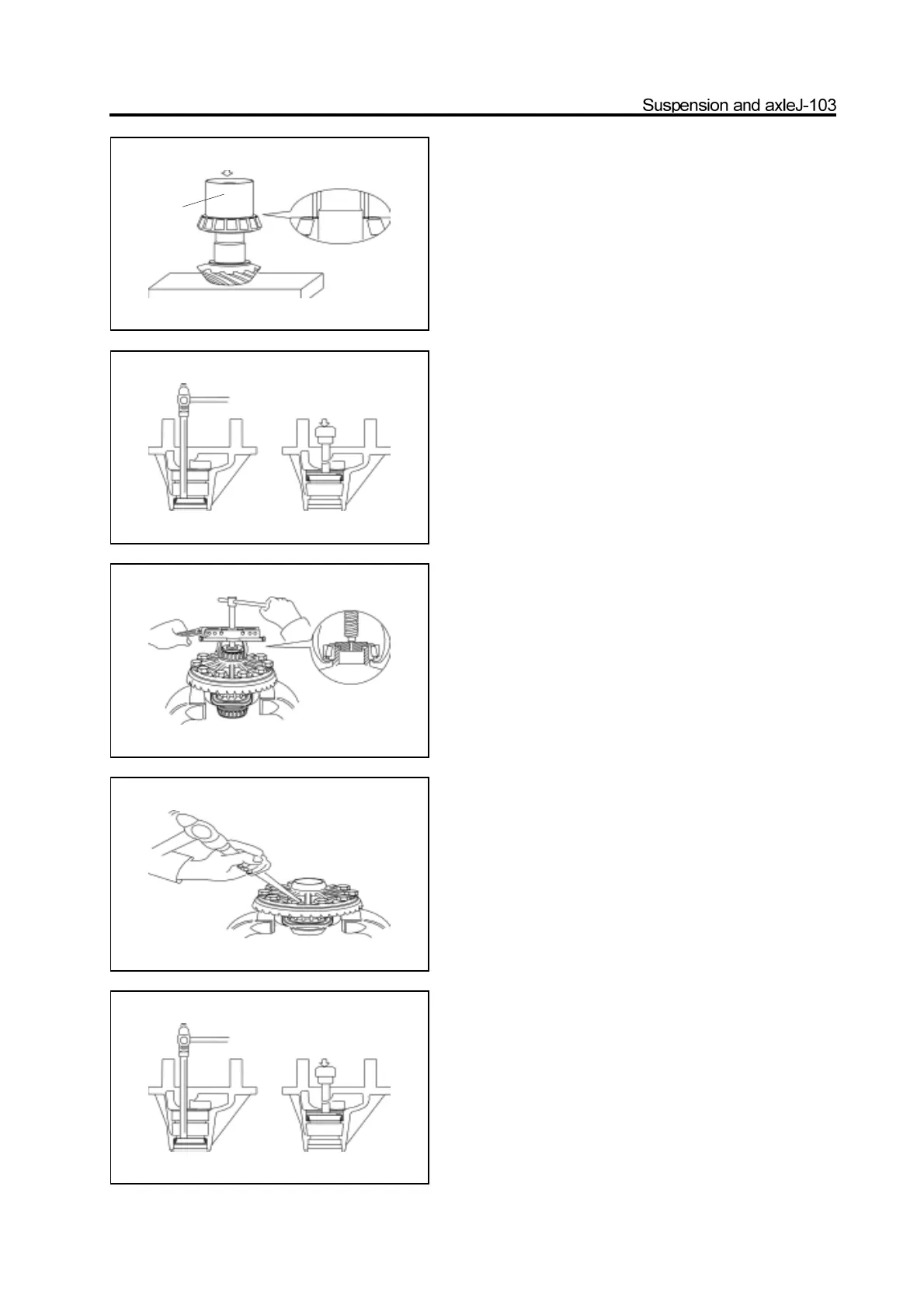

b.Use the press machine and special tools to install the reused
adjusting washer and new rear bearing on the drive bevel gear.
12. Replacement of front and rear bearing outer race
of drive bevel gear.
a. Use the hammer and brass bar to knock out the front and rear
bearing.
b. Use the press machine and special tools to install the new
bearing outer race by press.
13. Remove the side bearing form the differential
housing.
Use the special tools to pull out the side bearing from the differ
ential housing.
14. Remove the driven bevel gear
a.Remove the connecting bolt and lock plate of driven bevel gear.
b.Make the assembly mark on the driven bevel gear and differen
tial housing.
c.Use the rubber hammer or brass rod to knock down the driven
bevel gear.
Assembly of reducer
1. Install the bearing outer race of drive bevel gear.
(Refer to Step 12 in “Disassembly of Reducer”)
special tools
