Automatic transmission-17

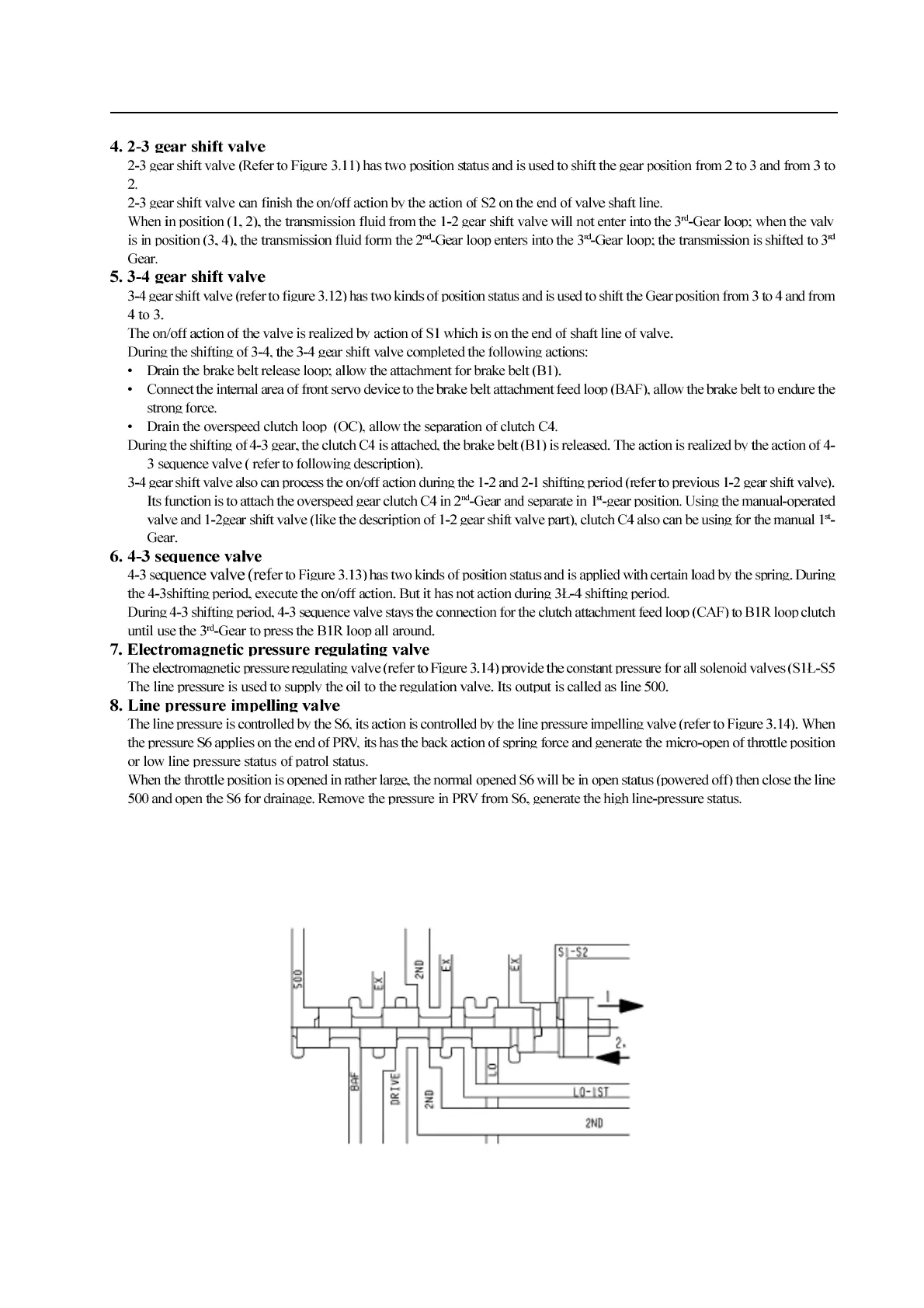

Figure 3.10 1-2 gear shift valve
Clutch combination regulating valve (refer to Figure 3.15) is a constant ratio regulating valve which provide the regulating pressure
of clutch C1 to control the change ratio of shifting quality clutch status. The ratio is about 2.25:1.
When the S3 is opened, the oil of 3
rd
-Gear is provided to the valve and adjust the pressure (CAF) to 2.25 times of S5 signal
pressure. When S3 is in closed status, the output pressure is 2.25 times of pressure of line 500.
9. Clutch combination regulating valve
