Safety airbag-28
SRS translation wiring harness
releases wring harness
shorting site
6m plus
the shroud
protection tube
Safety airbag module abandoning instruction
Carry out the operation according to the following procedure to abandon a safety airbag module or a vehicle with the SRS
safety airbag. First of all, release the safety airbag.
Unreleased safety airbag module abandoning
Caution
First release the SRS safety airbag when abdbdon it.
Release the safety airbag outside the vehicle to replace the safety airbag module.
Conduct the operation somewhere next to a smoke tester due to the smoke during the safety airbag’s release.
Tell the people to cover their ears and try to conduct the operation somewhere far away from the residential area due
to the big noise during the safety airbag’s release.
Remove the accumulator positive and negative and remove the accumulator off the vehicle.
Caution
Continue the operation 60 seconds after the removal of accumulator positive and negative.
Release the safety airbag module according to the following procedure.
1. Driver’s side safety airbag module
a. Remove the blocking lever

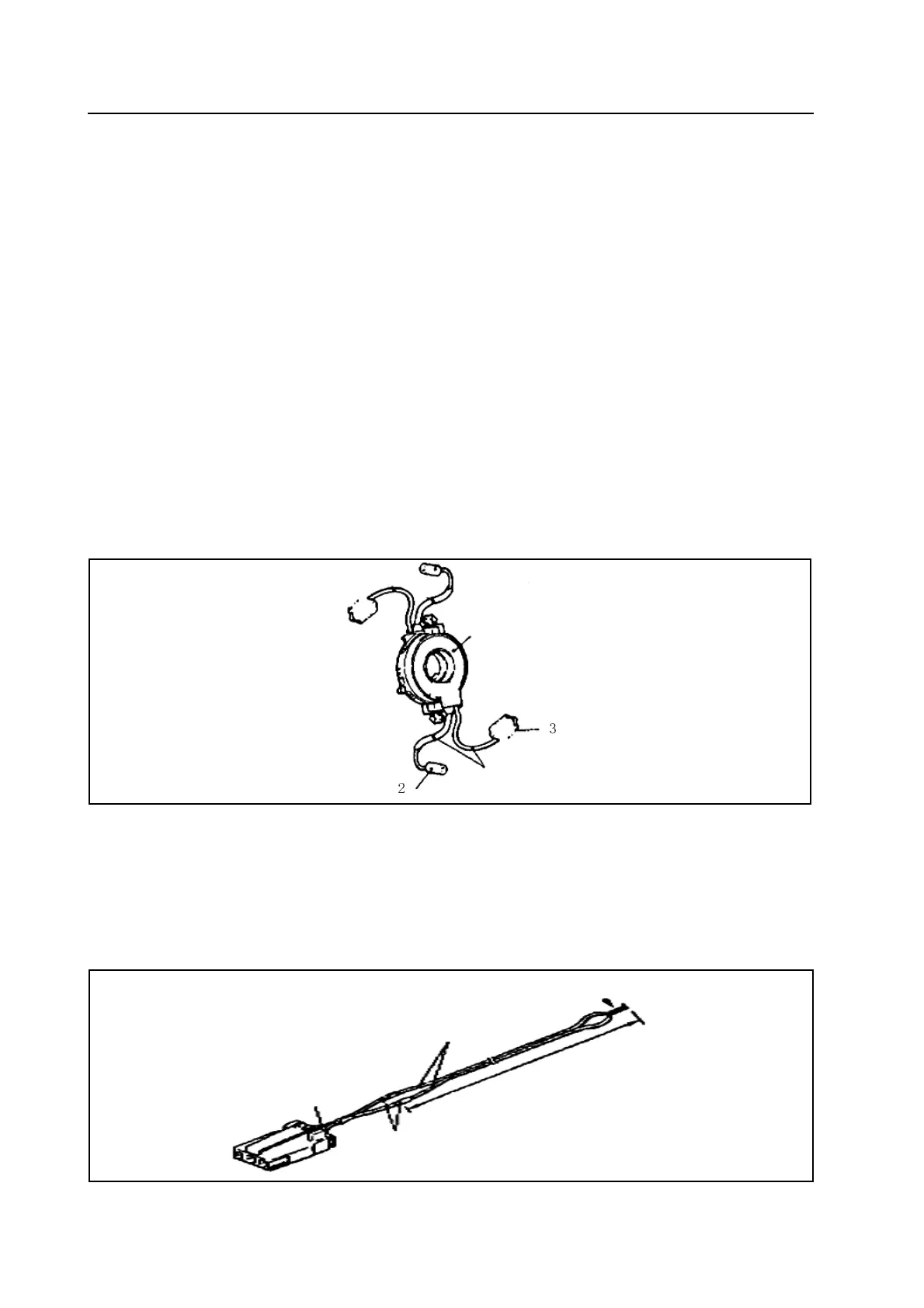

b. Remove the clock spring 2# joint and instrument panel wiring harness joint (yellow)(figure 8.6)
Caution
The clock spring joint will short automatically after the removal of clock spring from the instrument wiring harness,
which can prevent any possible major accident caused by the incorrect release of driver’s side safety airbag module duo
to the static interference from happening.
c. Connect the SRS safety airbag translation wring harness with 2 6m plus release wiring harnesses, wrap the joint part with
insulating tape for insulation.
