Brake-25
1. Install the clearance-adjusting device assembly
Insert the clearance-adjusting shaft head into the clearance-adjusting
wheel; screw the clearance-adjusting screw rod into the clearance
adjusting wheel.
Remarks: The screw direction of left clearance-adjusting screw
rod is the left hand.
The screw direction of right clearance-adjusting
screw rod is the right hand.
2. Coat the following components with the proper anti-high tem
perature grease :
a. Contact position of brake soleplate and brake shoe.
b. Contacting surface of push plate and shoe plate; contacting sur-
face of clearance-adjusting device assembly and shoe plate.

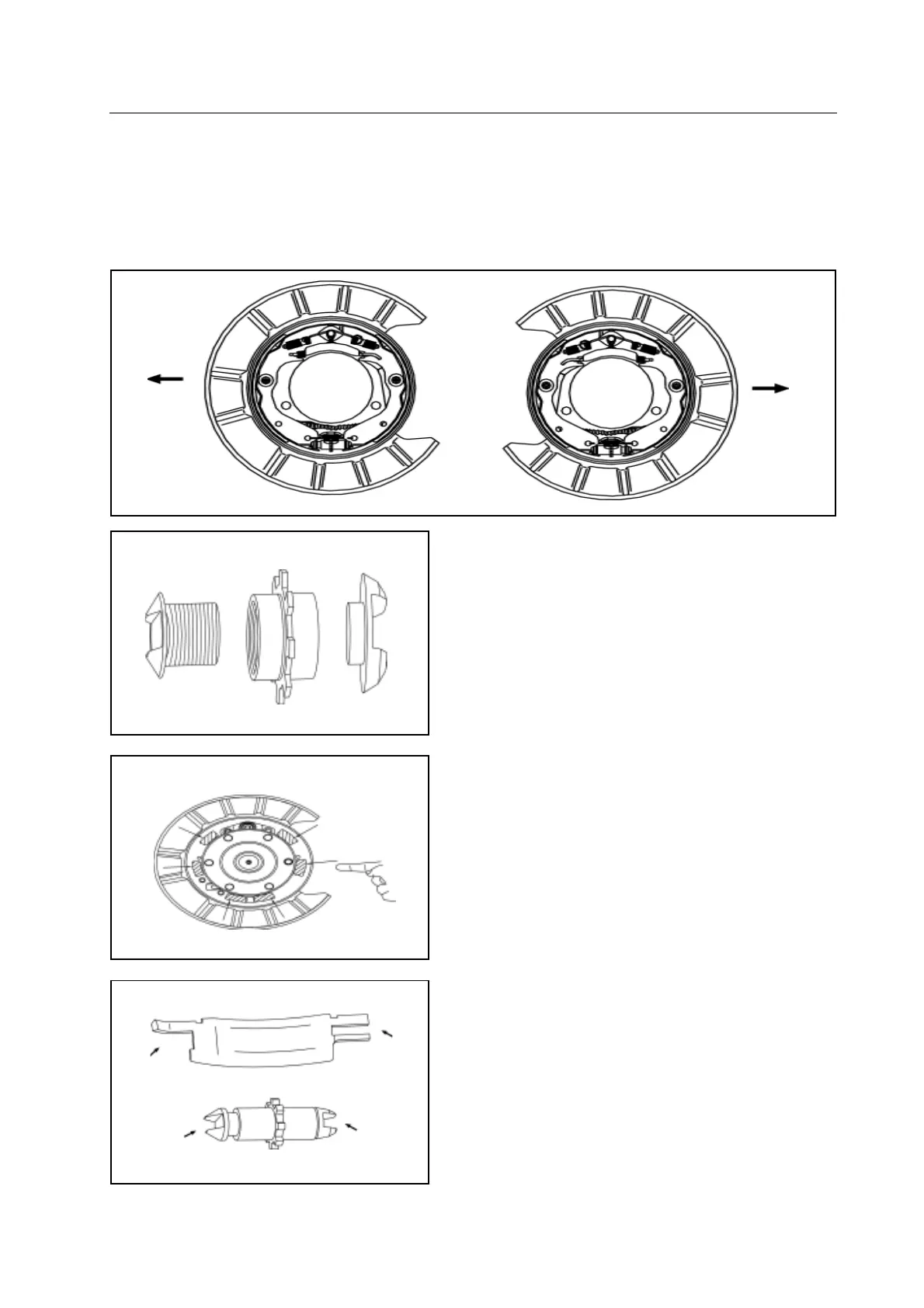

Assembly of rear parking brake
Remarks: Assemble the component according to the direction shown in figure;
It is prohibited strictly that the working surface of brake drum and abrasion disk is polluted by the paint and grease. It
should be removed by the fine abrasive paper if the abrasion disk has little dirty. The brake shoe should be replaced when
the polluted area is large, otherwise it will cause the serious effect of insufficient brake force.
left wheel
front
right wheel
front
