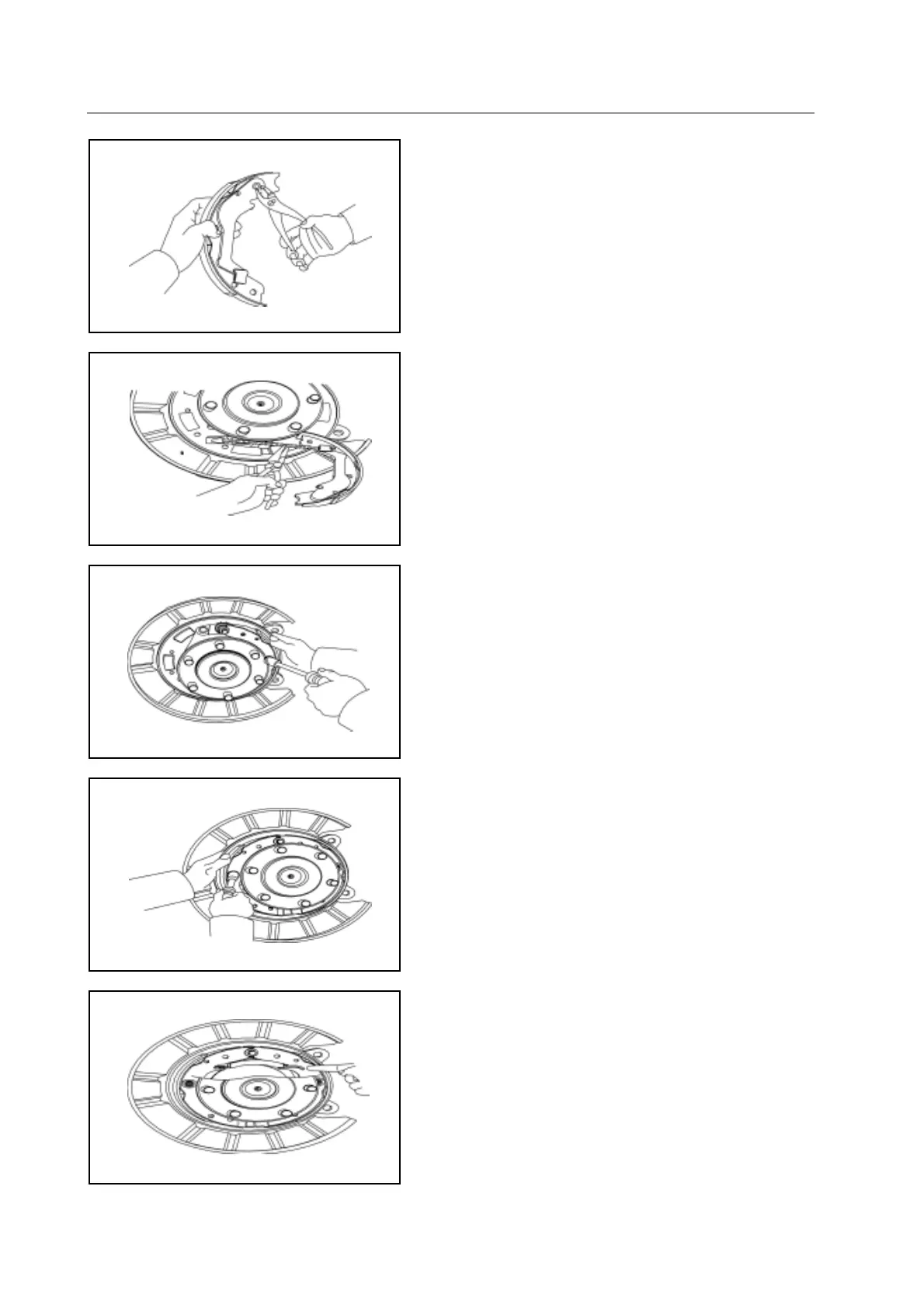

2. Install the parking brake pulling arm
Install the parking brake pulling arm and use a new saddle washer.
3. Install the rear brake shoe
a. Install the parking brake pull wire on the parking brake pulling
arm.
b. Insert the end of rear brake shoe into the support pin of brake
soleplate.
Insert the pull-out piece spring pull bar into the brake soleplate and
brake shoe assembly, then insert the pull-out piece spring and pull-
out piece spring base. Use the pull-out piece spring fork to rotate
the pull-out piece spring base in position.
4. Install the front brake shoe
install the front shoe plate; insert one of its ends into the fixed pin of
soleplate.
Insert the pull-out piece spring pull bar into the brake soleplate and
brake shoe assembly, then insert the pull-out piece spring and pull-
out piece spring base. Use the pull-out piece spring fork to rotate the
pull-out piece spring base in position.
5. Install the brake push plate
Insert the push plate release spring into the push plate; then install
the push plate on the place between the front and rear brake shoe
assemblies.
