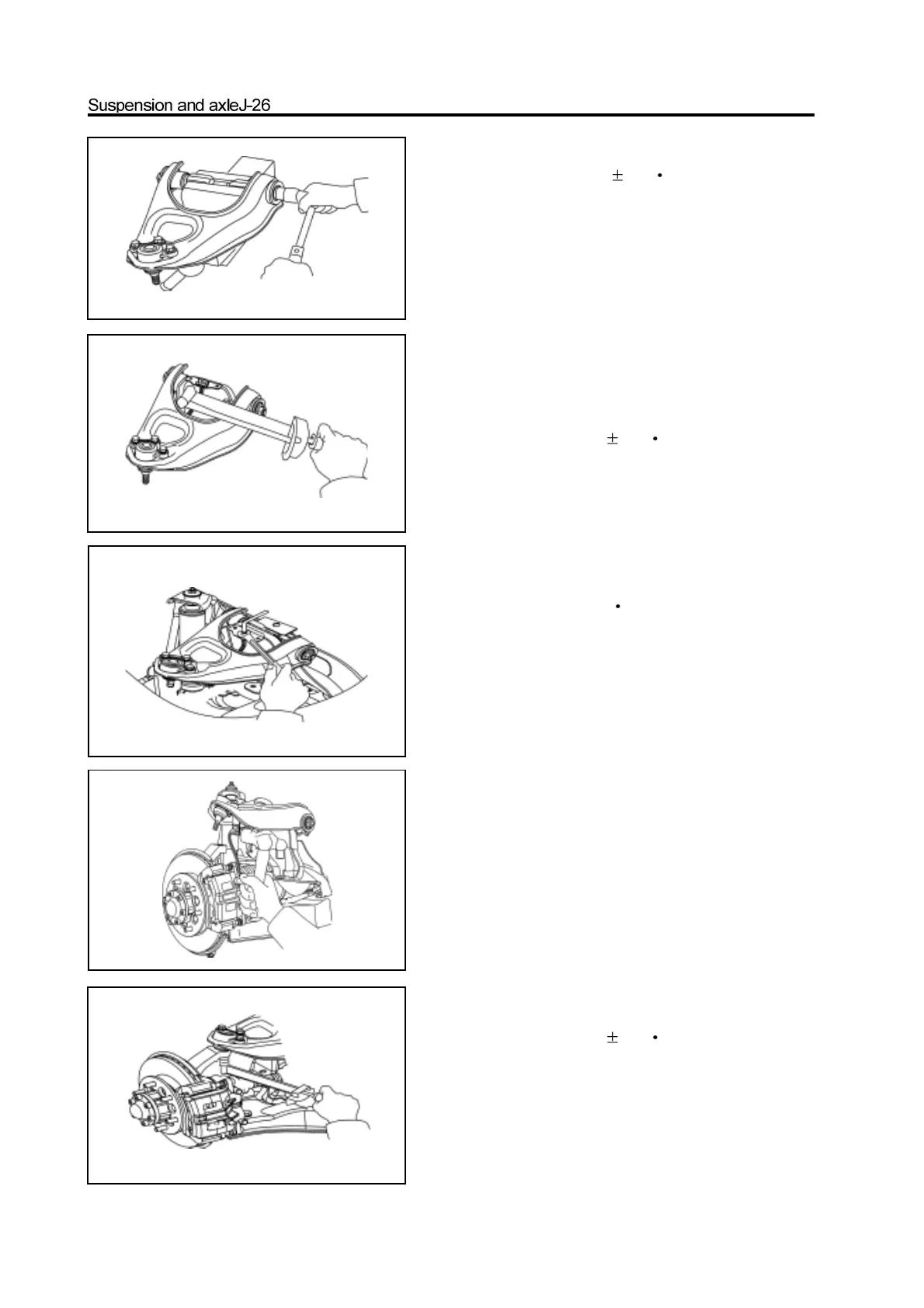

b. Tighten the upper arm shaft nut to specified torque.
Tightening force: 210
10N m
Installation of upper suspension arm
1. Install the upper suspension arm on the carriage
a. Install the upper suspension arm and camber adjusting shim.
b. Tighten all bolts to the specified torque.
Tightening force: 200 10N m
Remarks: Install the shim with same quantity and thickness to
the original position.
2. Connect the brake oil pipe of upper arm shaft
Tighten the oil pipe compression nut to specified torque.
Tightening force: 15-17N
m
Remarks: It should tighten four connector of two two-way
valves to the specified torque if disassemble the right upper
arm.
3. Connect thebrakehosetotheupperarmoilpipebracket
a. Thread the brake hose from the hole on upper arm oil pipe
bracket.
b. Use the hand hammer to knock in the sheet steel spring clip to
fix the brake hose.
4. Connect the upper ball pin to the steering knuckle
a. Tighten the slotted nut according to the specified torque.
Tightening force: 145
15N m
b. Install the new split pin.
Remarks: It should align the notch of nut with the pinhole
when install the split pin; the nut can be tightened but not
loosed during the alignment.
