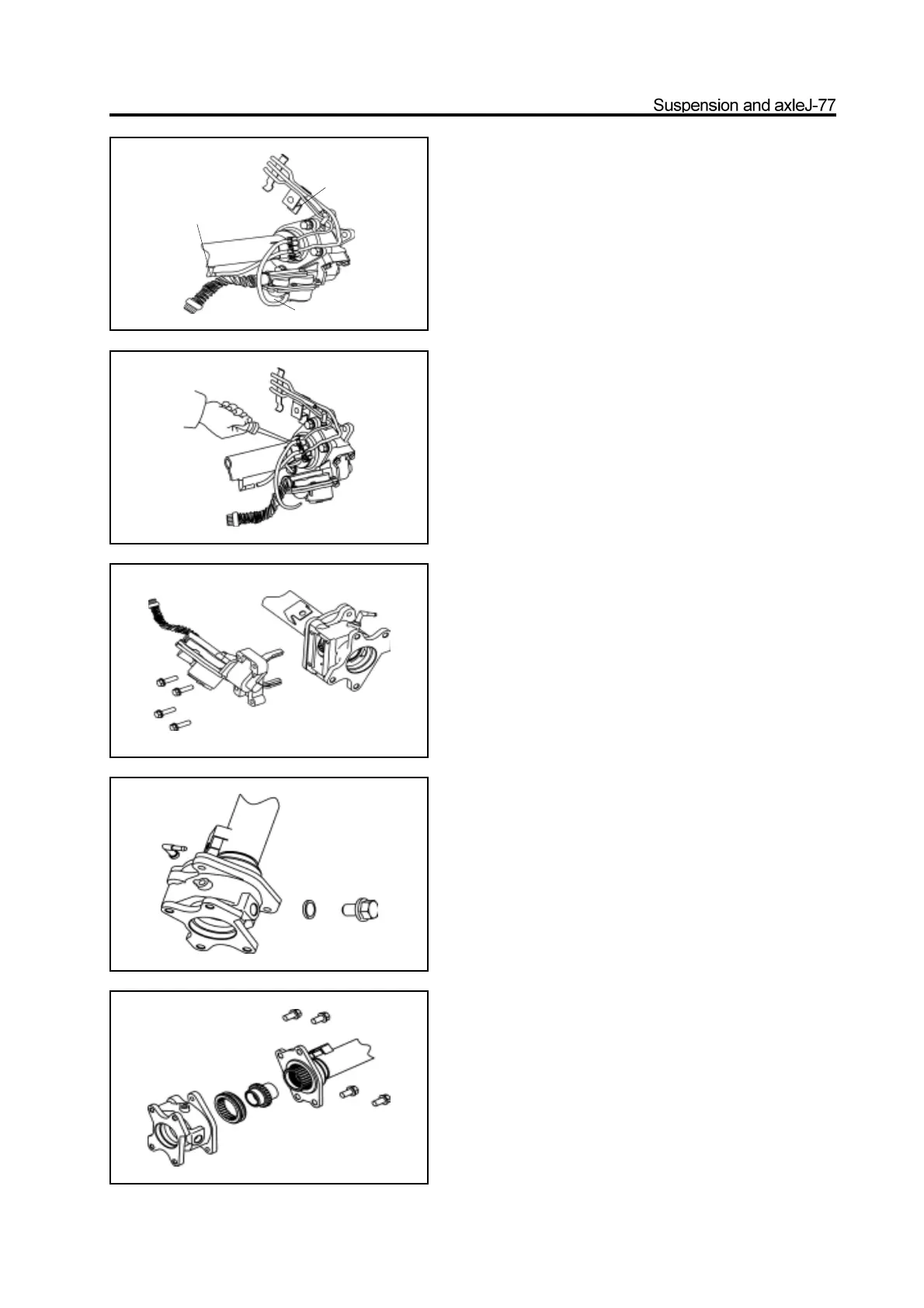

Disassembly of front reducer assembly
1. Remove the front drive axle and left and right
front drive shaft assembly.
(Refer to “Removal of Front Reducer Assembly”
and “Removal of Front Drive Shaft Assembly”)
2. Disconnect three interface positions of front drive
axle vent tube connector assembly.
3. Use the flat screwdriver to pry off the clip fixed
the vent tube connector assembly and take out
the vent tube connector assembly.
4. Screw off the bolt fixed the electric clutch and use
the brass bar to knock down the electric clutch.
5. Use the wrench to remove the oil filling plug;
remove the washer and pull out the vent tube.
6. Use the wrench to remove the bolt connected to
the electric clutch housing and front axle tubeflange;
take out the shift fork sleeve and mechanical wheel
of separator.
Caution: The leaked gear oil during disassembly
should be stored in the container to avoid the
pollution for environment.
disconnected in
this place
disconnected in this place
disconnected in this place
