Brake-13

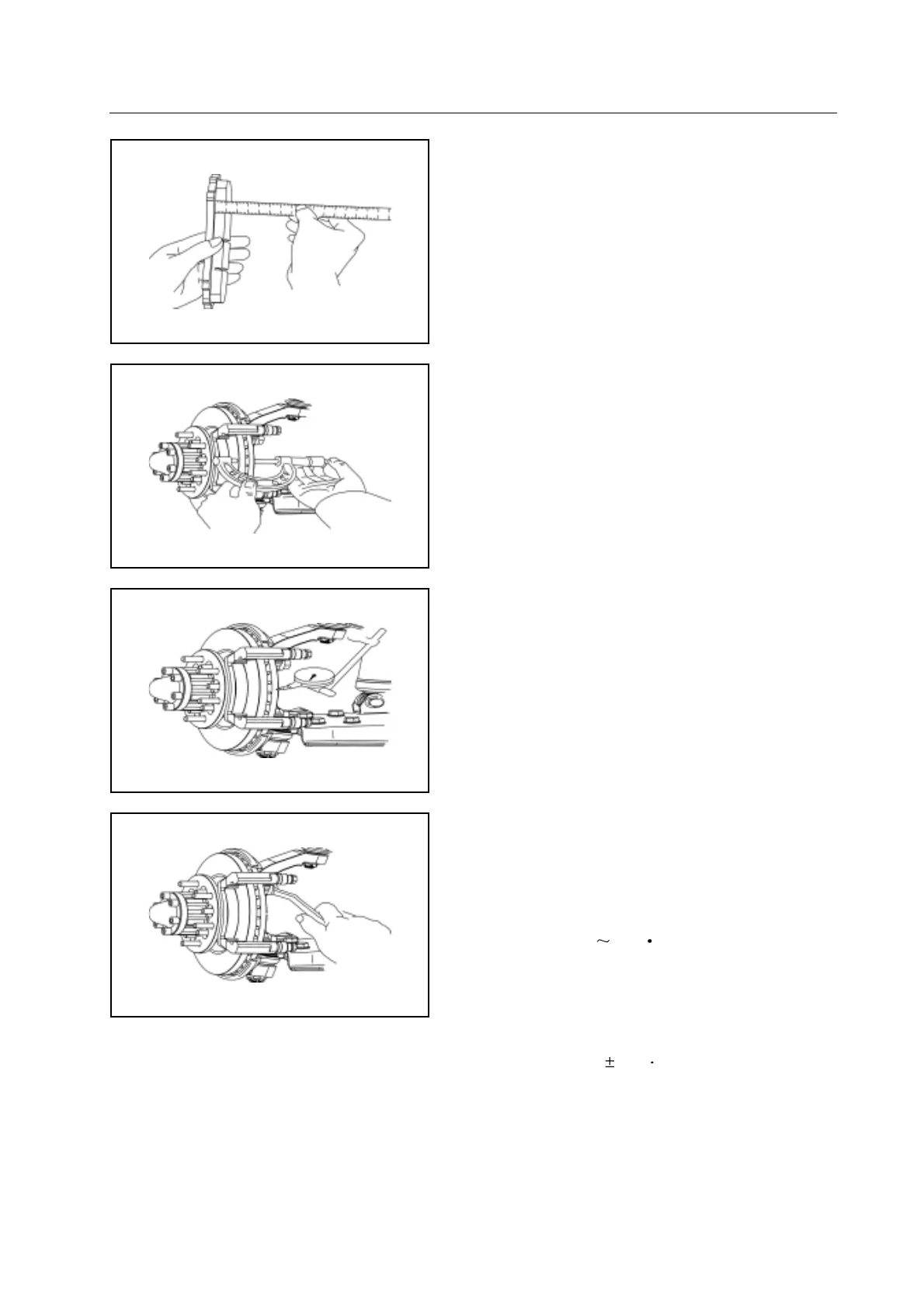

Check the component of front brake
1. Measure the thickness of the brake block bush.
standard thickness: 9.0mm
minimum thickness: 2.0mm
It should replace the brake block if less than minimum thickness or
has uneven abrasion.
2. Measure the thickness of the brake disc.
standard thickness: 26.0mm
minimum thickness: 24.0mm
It should repair or replace the brake disc if the brake disc is damaged
or worn or its thickness is
less than minimum thickness.
3. Measure the circular runout of the brake disc.
Remarks: It should ensure that the bearing is adjusted correctly
before the measurement . maximum circular runout : 0.11mm
4. Replace the brake disc if necessary.
a. Remove the tong bracket form the steering knuckle.
b. Remove the hub and brake disc. (Refer to section “Front hub”)
c. Install the new brake disc; tighten the connecting bolt to the
specified torque.
Tightening force: 90
100N m.
d. Install the hub and brake disassembly. (Refer to section “Front
hub”)
e. Install the tong bracket on the steering knuckle; tighten the
connecting bolt to the specified torque.
Tightening torque 140
10N m.
