Replacement of drive gear oil seal of front reducer assembly
1. Support the front of car; remove the left and right
front wheel and the beam under the reducer.
2. Drain the lubricant oil in the front reducer; remove
the left and right steering knuckle
3. Disconnect the front reducer assembly flange from
the drive shaft and use the jack to remove the front
drive axle
Caution: Make the assembly mark on the reducer and
drive shaft before separate them.
4. Remove the front differential assembly
(Caution: Drain the oil in front differential before the
disassembly)

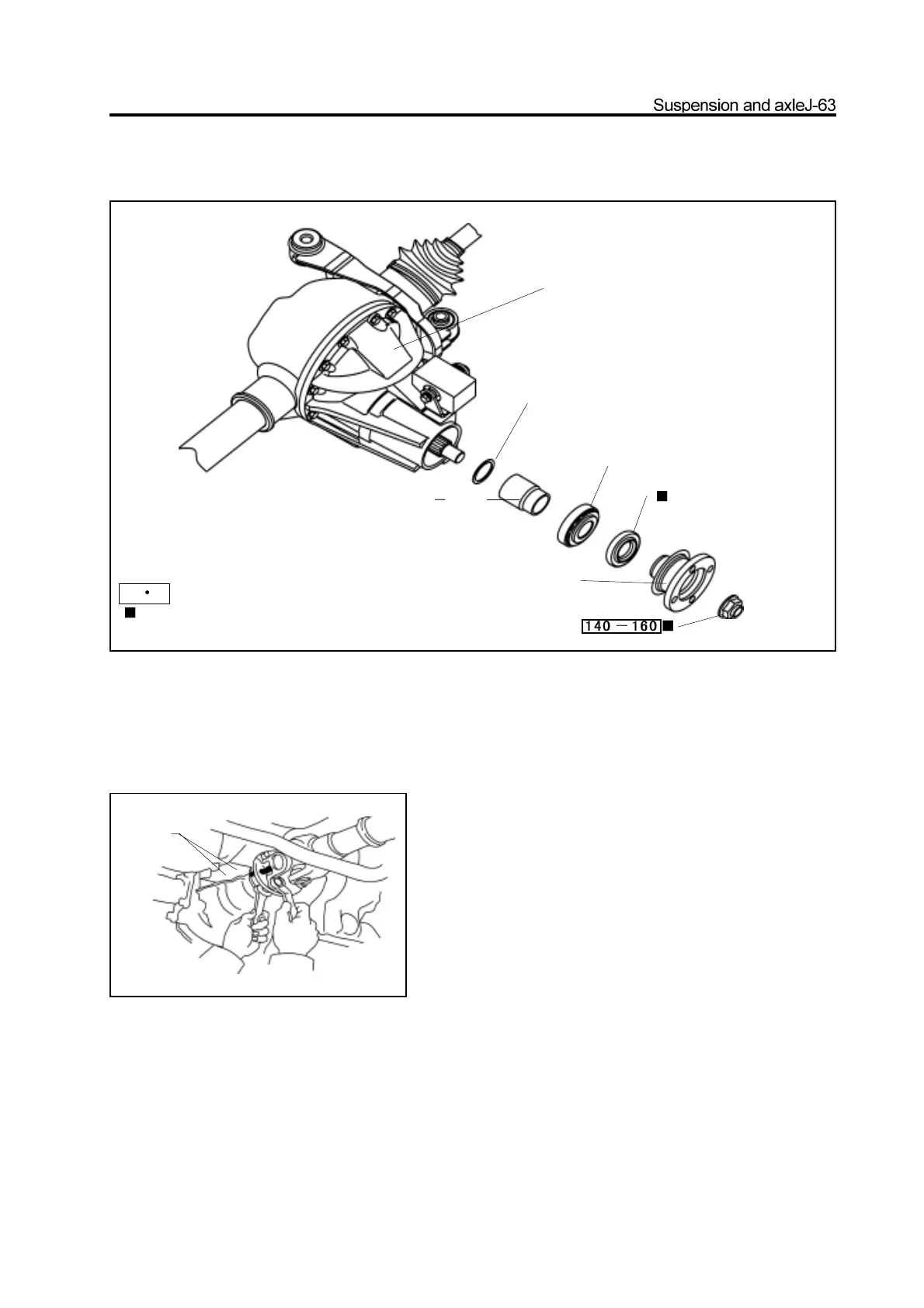

front reducer
assembly
washer
spacer drive
bevel gear
bearing
oil seal
front reducer drive gear flange,
main gear flange and dustproof
cover assembly
Used component which can not be used
any more.
N m: specified torque
assembly mark
To Next Page
