Differential
Differential
1 Remove the reducer and differential assembly
(Refer to “Removal of reducer”)
2 Remove the differential from the reducer and dif
ferential assembly.
(Refer to “Disassembly of reducer”)

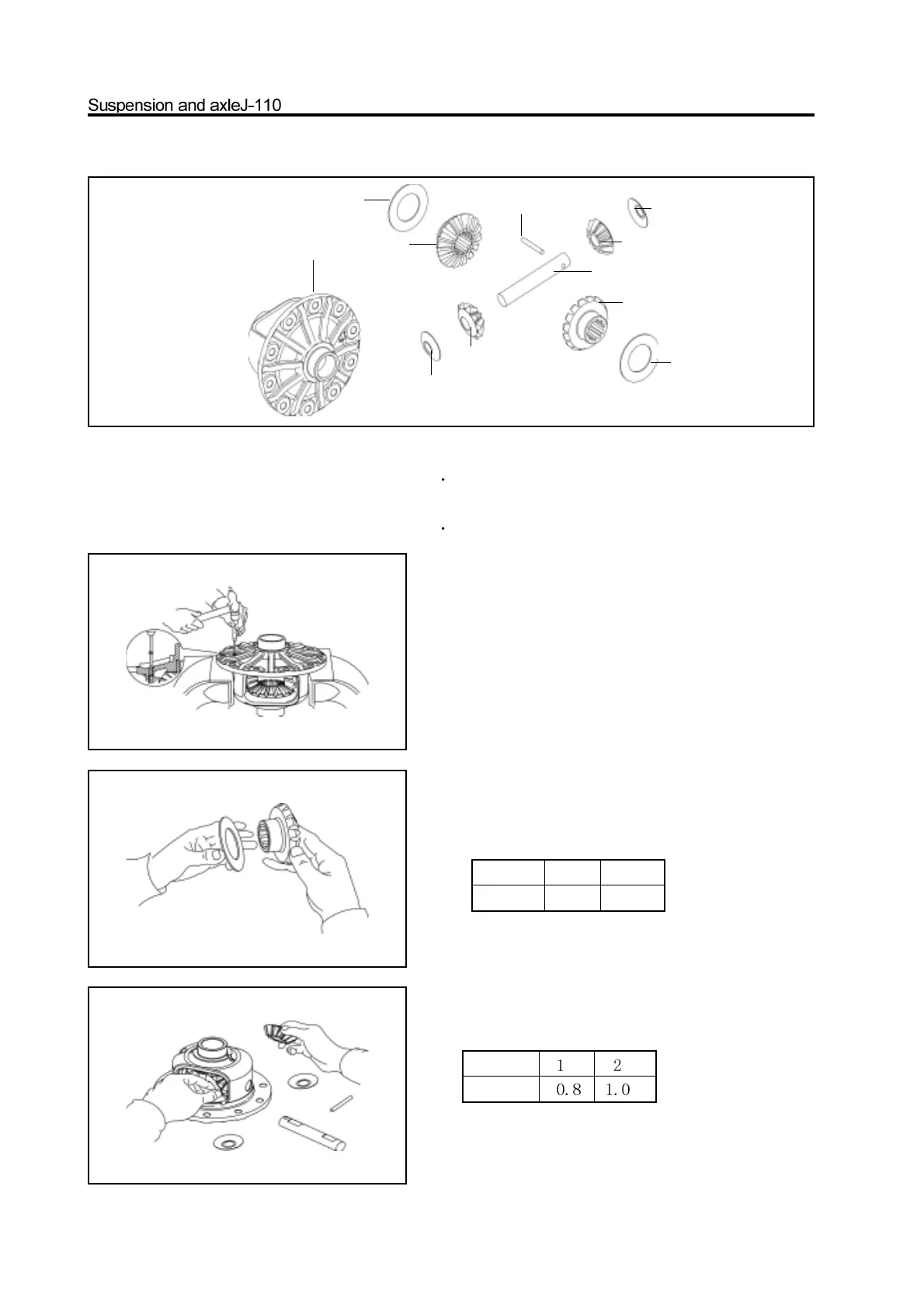

Replacement of differential components
1.Disassembly of differential
Use the hammer and punch to knock out the pin. Remove the
planetary gear shaft, two half axle gears, two planetary gears and
two lock washers, two thrust plates.
2. Assembly of differential
a.Install the half axle gear and thrust plate of axle shaft gear
(Unit: mm)
b.Install the planetary gear and planetary gear lock washer in the
differential by rolling. (Unit: mm)
differential housing
thrust plate
half axle
gear
straight pin
planetary gear
lock washer
half axle
gear
thrust plate
planetary gear
lock washer
planetary gear shaft
Set NO. 1 2
Thickness 1.2 1.5
Set NO.
Thickness
