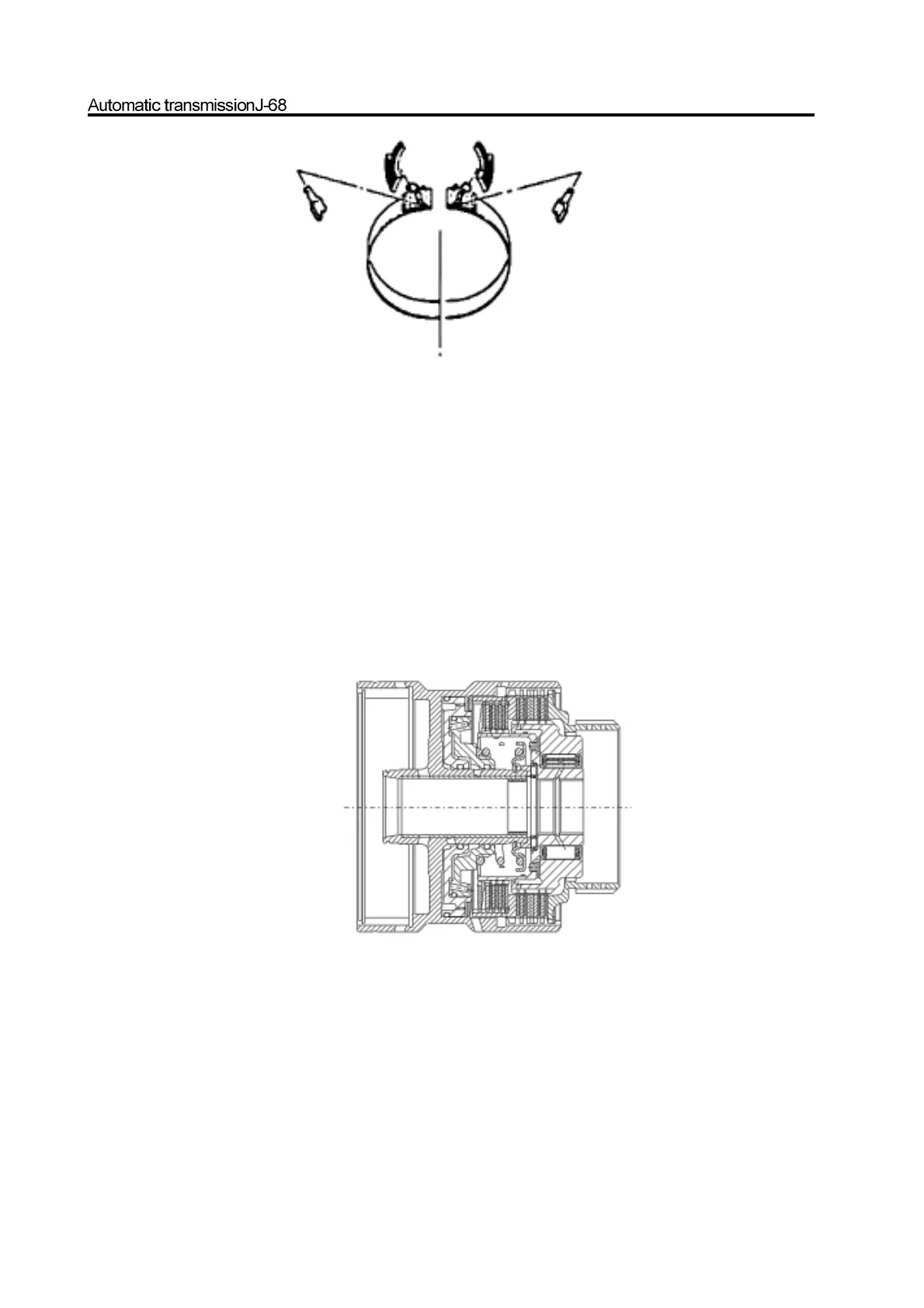

Figure 8.23 Installation of brake belt press lever
d. Install the brake belt on the transmission, ensure it is installed on the correct position.
e. Install the reaction support on the fixing plate and connect it to the brake belt and reinforcement lever. Install the application
support on thea fixing plate and connect it to the brake belt and servo piston bar.
9.C2/clutch C4 assembly
Caution:
Check the piston for crack, especially for piston C2.
Must not mix the clutch piston out and back spring.
Ensure the correct installation of clip ring
The assembly procedure of C2/clutch C4 assembly (refer to 8.24) is shown as follows:
a. Ensure the cleanness of internal oil inlet of cylinder; check the discharge outlet of piston C2 for cleanness; use the transmission
liquid to lubricate the O-ring.
Caution:
The O-ring must not be winded in groove.
Figure 8.24 Typical C2/C4clutch assembly
b. Install the small O-ring in the inner groove; install the large O-ring in the external groove of piston; check the discharge outlet
of C4 piston for cleanness.
c. Use the transmission liquid to lubricate the O-ring; install the small O-ring in the inner groove; install the large O-ring in the
external groove of piston.
d. Make the C2/clutch C4 hole face upwardly; install the clutch cylinder; place the C4 piston in the original position proper for
C2 piston during the calibration..
e. Install the C2/C4 piston assembly on the cylinder; ensure the external hole of cylinder align with the discharge outlet of piston,
until the external diameter of C2 piston enters into the internal diameter of cylinder.
