Steering knuckle

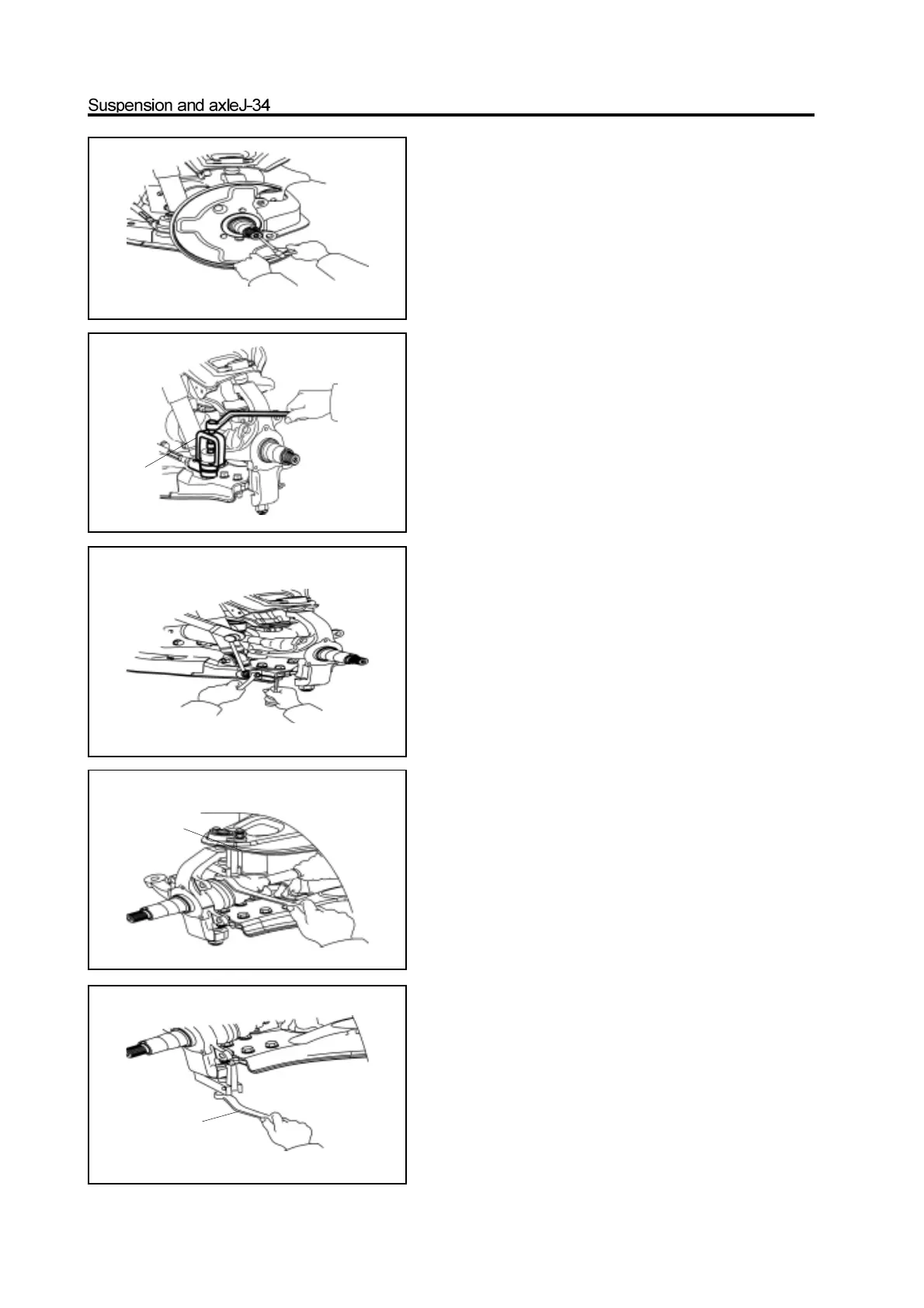

Disassembly of steering knuckle
1. Remove the disc brake and front hub
(Refer to section “Front Hub”)
2. Remove the brake cover
3. Disconnect the steering cross rod from the steer-
ing knuckle arm
a. Remove the split pin and nut on the ball pin.
b. Use the special tools to disconnect the steering cross rod
from the steering knuckle arm.
4. Disconnect the connecting rod of stabilizer bar
from lower arm
Use the inner hexagon spanner to fix the ball pin; remove the
self-locking nut.
5. Remove the steering knuckle
a. Remove the split pin and nut on the upper ball pin
b. Use the special tools to disconnect the upper ball pin from
the steering knuckle.
c. Remove the split pin and nut on the lower ball pin.
d. Use the special tools to disconnect the upper ball pin from
the steering knuckle.
