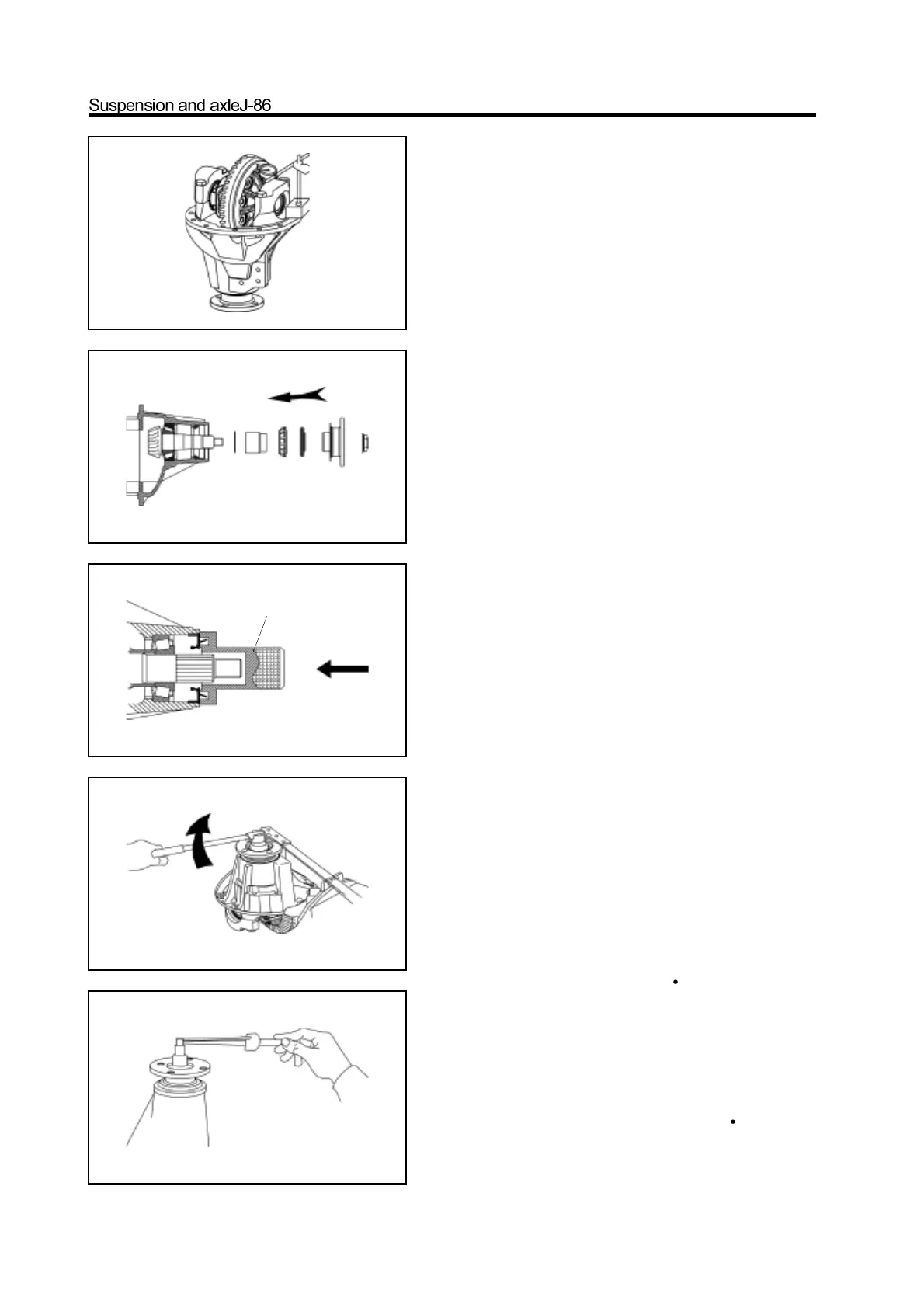

1.Rotate the driven bevel gear, check the runout of
driven bevel gear.
Max. Runout: 0.07mm
Assembly of front reducer assembly
1.Install the adjusting washer in the drive bevel gear,
install the big bearing inner race of drive bevel gear
by press.
2. Clean the front reducer housing, install the outer
race of big and small bearing on the reducer housing
by press..
3. Install the drive bevel gear into the front reducer
housing, then install the washer, spacer and small
bearing inner race.
4.Use the special tools to install the drive bevel gear
oil seal.
Caution: It should coat the lip with the oil seal
lithium base grease before install it and the rear
surface of rear oil seal should flush with the top of
front reducer housing after knocked in.
5. Install the drive gear flange and dustproof cover
assembly.
(Refer to “Replacement of Drive Bevel Gear Oil Seal”)
6.Use the special tools to tighten the drive gear nut
to the specified torque; the nut should be precoated
with the lithium base grease.
specified torque : 140-200N
m
7. Use the torque measuring meter to measure the
pre-applied load of big and small bearing of drive
bevel gear.
Range of pre-applied load: 1.2-1.7N
m
special tools
