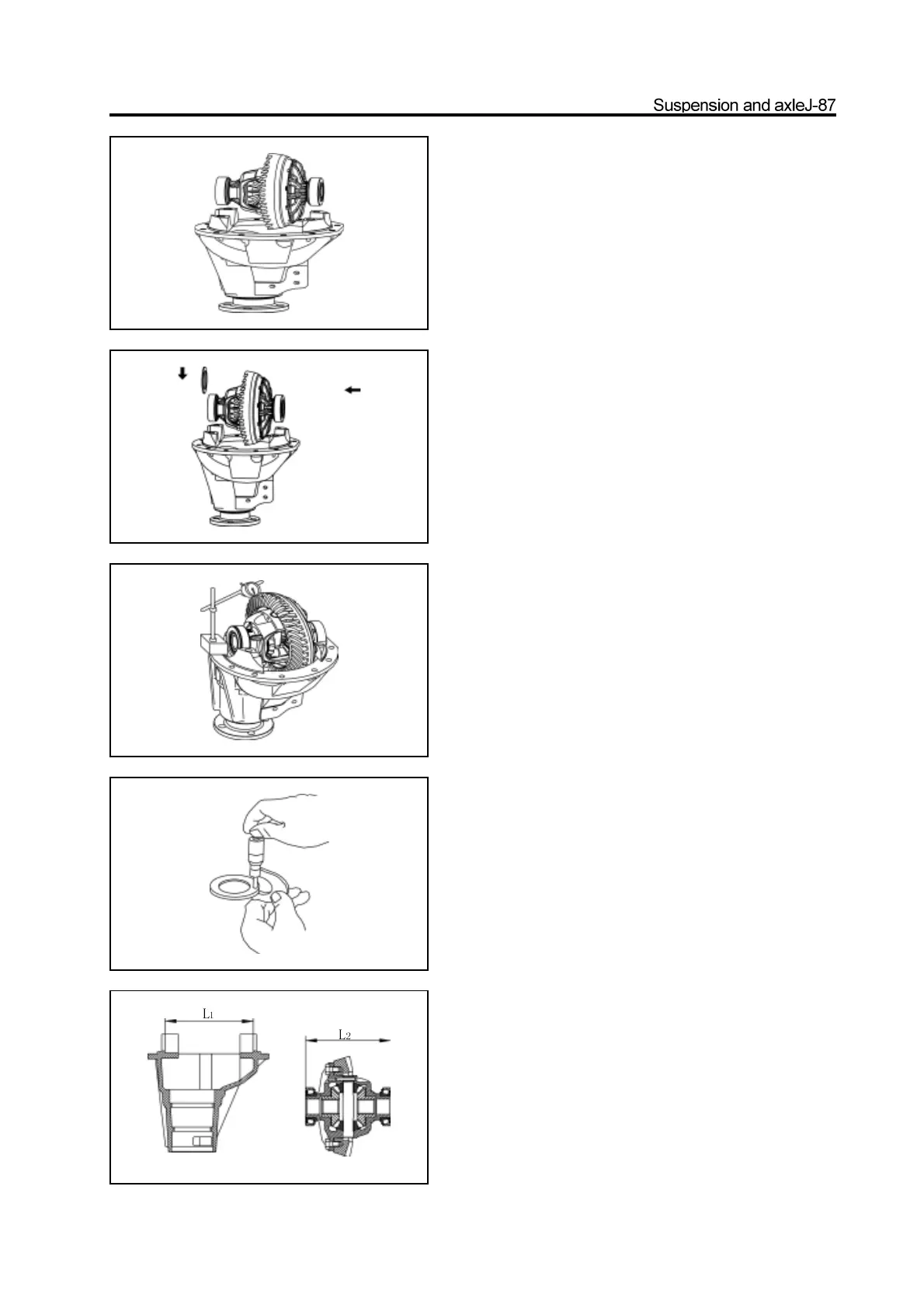

8. Place the differential assembly on the corresponding
position of front reducer housing.
9.Select an adjusting shim and insert it in a side of
side bearing outer race; push the differential assem-
bly to the side with adjusting shim.
10. Use the dial indicator to measure the gear side
clearance of driven bevel gear and drive bevel gear;
select out the adjusting shim in the side which meets
the rational clearance of 0.15mm.
11.Measure the thickness of the adjusting shim.
12. After select out one side adjusting shim, then
select theadjusting of another side according to that
the theoreticthickness of the adjusting shimofanother
side equals to subtracting the thickness of selected
shim and oppositiondistance L2 between outer race of
two side bearings of differential assembly from the
opposition distance L1 between two side bearings of
front reducer housing.
