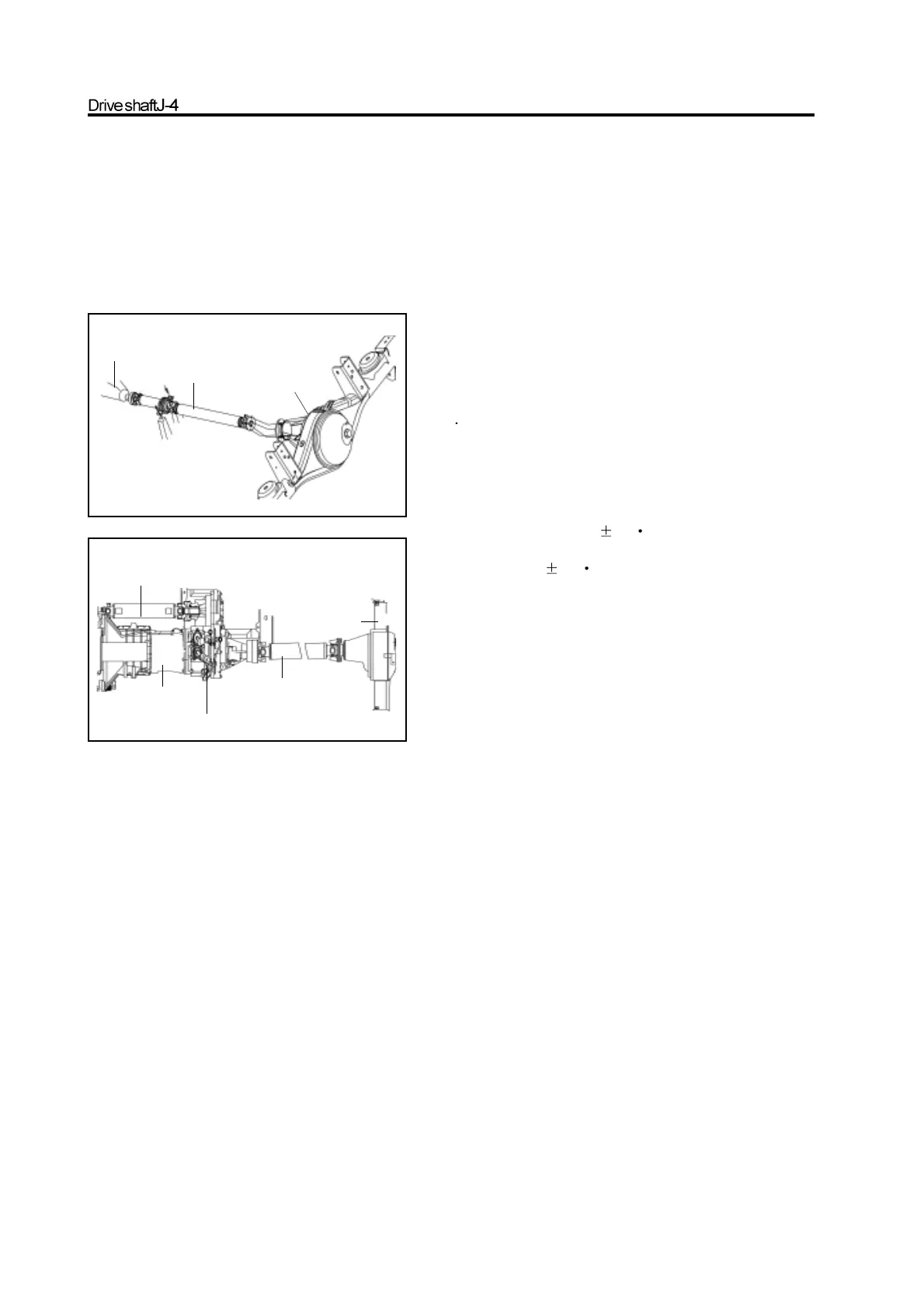

transmission
drive shaft assembly
rear axle assembly
front axle drive shaft assembly
transmission
rear axle drive
shaft assembly
transfer case
rear axle assembly
Disassembly of drive shaft:
Remove the intermediate support bolt of drive shaft firstly (CC6460KY
is without intermediate support connecting bolt ), then remove the
connecting bolt between the drive shaft and rear axle , lastly, pull out
the drive shaft assembly from the transmission output spline shaft and
remove it in integral.
Installation of drive shaft:
1. Firstly, check the drive shaft for damage, spline for corrosion
and connecting surface for deficiency of damage or sand hole by
itself.
2
Install the connecting spline bushing of drive shaft on the
transmission output spline shaft carefully; then install the drive
shaft intermediate support on the intermediate support bracket
of carriage.
3. Use the special drive shaft bolt, nut and spring shim to connect
the drive shaft to the vehicle axle ring flange and tighten it. The
tightening torque is 78
5N m
4. Tighten the drive shaft intermediate support nut, the tightening
torque is 63
5N m (the front and rear drive shaft in
CC6460KY model are the integral and has the installation
content)
