Great Wall hover - Disassembly of Steering Knuckle; Remove the Steering Knuckle

Steering knuckle

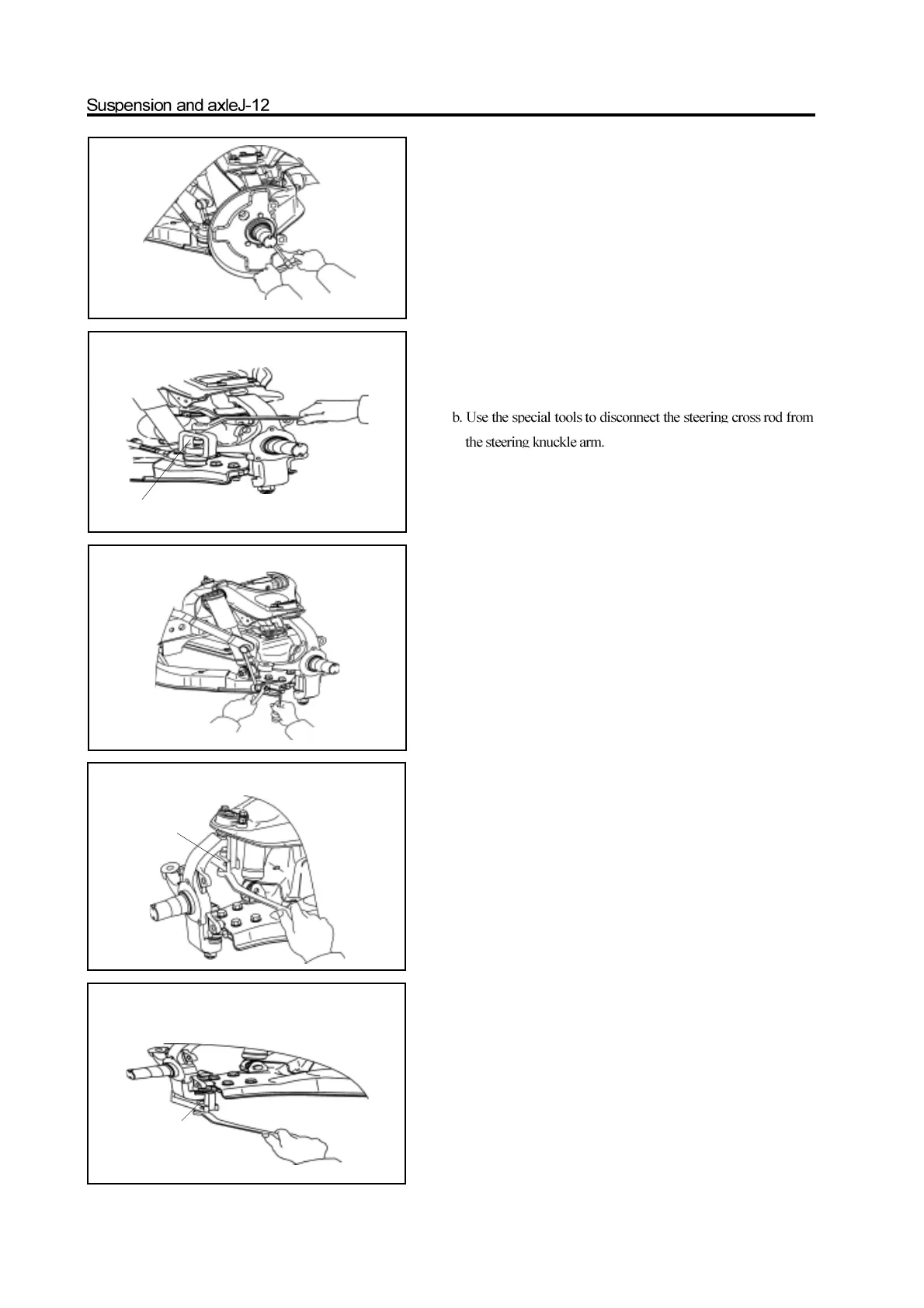

Disassembly of steering knuckle
1. Remove the disc brake and front hub
(Refer to section “Front Hub”)
2. Remove the brake cover
special tools
special tools
special tools
3. Disconnect the steering cross rod from the steering
knuckle arm
a. Remove the split pin and nut on the ball pin.
4. Disconnect the connecting rod of stabilizer bar from
lower arm
Use the inner hexagon spanner to fix the ball pin; remove the self-
locking nut.
5. Remove the steering knuckle
a. Remove the split pin and nut on the upper ball pin
b. Use the special tools to disconnect the steering knuckle from the
upper ball pin.
c. Remove the split pin and nut on the lower ball pin.
d. Use the special tools to disconnect the steering knuckle from
the upper ball pin.
e. Remove the steering knuckle.
