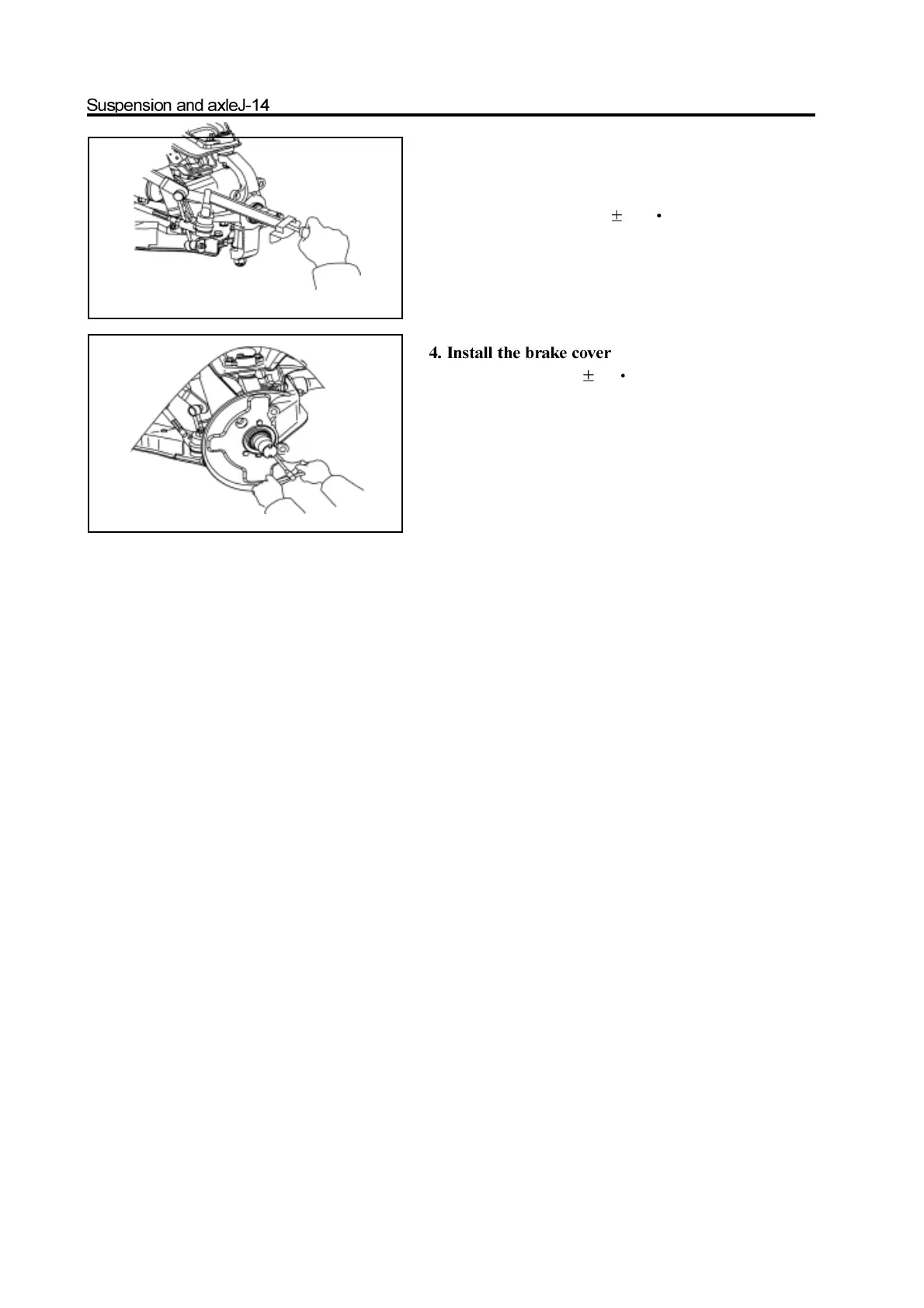

3. Connect the steering cross rod to the steering
knuckle arm.
a. Tighten the slotted nut according to the specified torque.
Tightening force: 170
15N m
b. Install the new split pin.
Remarks: It should align the notch of nut with the pinhole
when install the split pin; the nut can be tightened but not
loosed during the alignment.
Tightening force: 23 3N m
5. Install the front hub and disc brake
(see section of front hub)
