Safety airbag-21
Removal methods for all the parts
Safety airbag electronic-control unit
Caution
Continue the operation 60 seconds after the removal of accumulator negative. Wrap the removed negative with
insulating tape for insulation.
2. The SRS-ECU must not be separated nor repaired replace the failed SRS-ECU with a new one.
3. Prevent the SRS-ECU from shock and vibration, replace the SRS-ECU with depression, crack or deformation with a
new one.
4. Do replace the SRS-ECU with a new one after the safety airbag is released.
5. Do not damage the SRS-ECU when removing or maintaining the parts next to it.

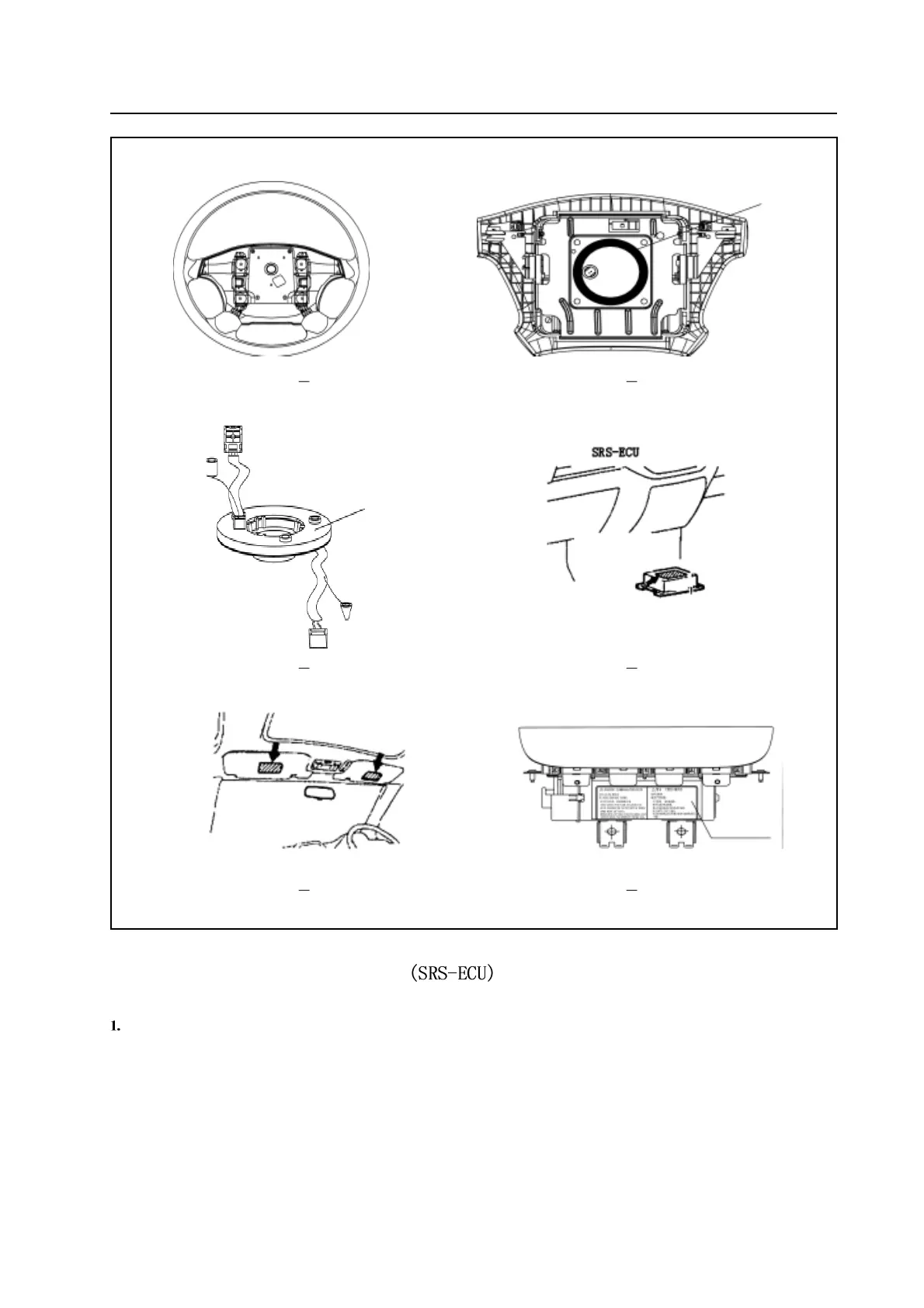

Figure 6 1 Figure 6 2
Figure 6
3 Figure 6 4
Figure 6
5 Figure 6 6
warning signs
warning signs
passengers’ side safety airbag module
warning signs
