Safety airbag-24

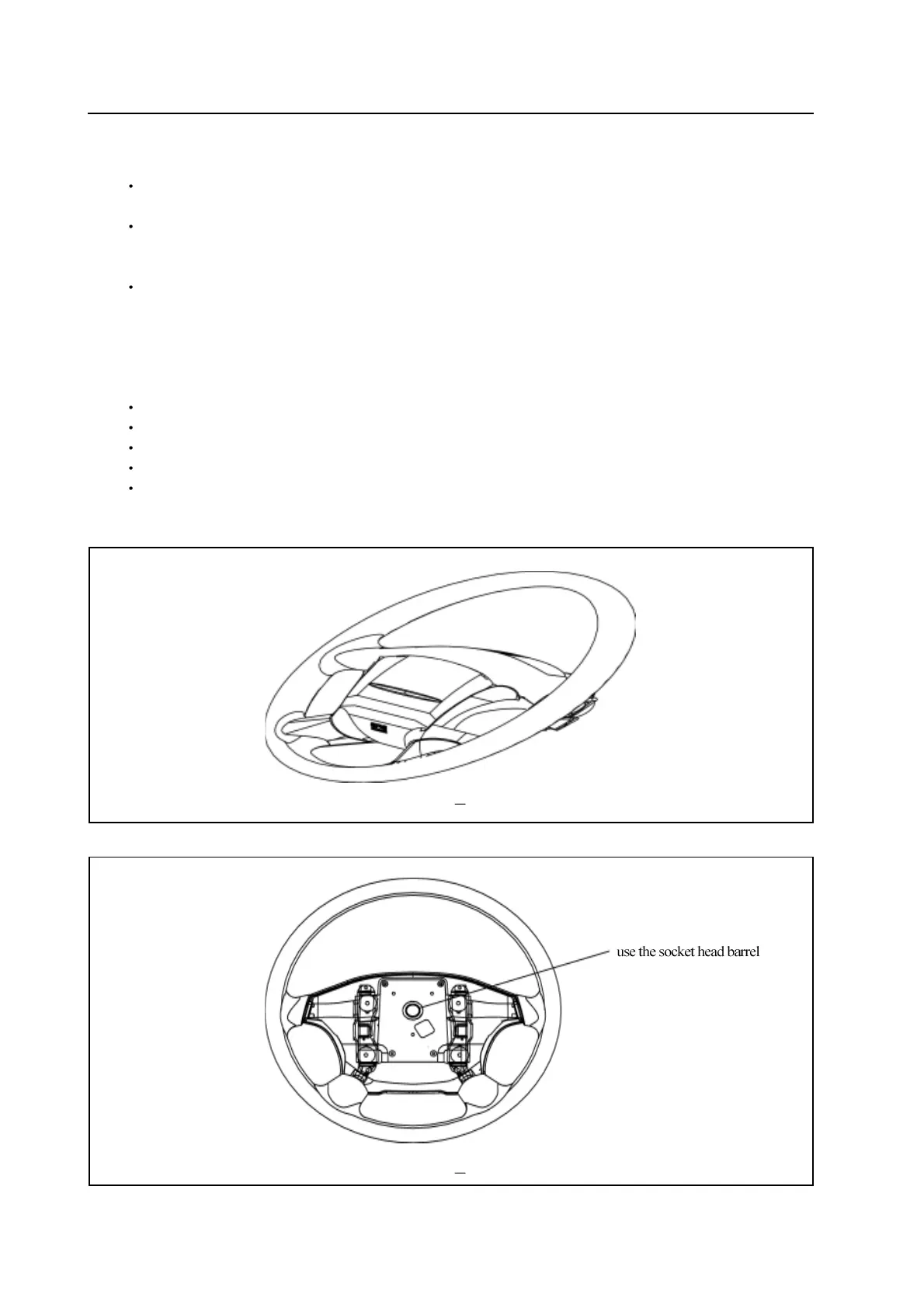

Figure 8 1
The removal of steering wheel (Figure 8.2)
Figure 8 2
7. Passengers’ side safety airbag module (PAB) and its installation procedure.
a. Test before installation
Carefully take PAB module, justify both of them and plug four trim cover M5bolt into the mounting holes of the module’s
both sides
Well install together the module with trim cover bracket and instrument panel mounting bracket with four M5 bolts.
After the installation of the entire instrument assembly to the vehicle, tightly fix the PAB module to the vehicle transverse
beam with 2 matted M6 bolts at the glove box site.
Well mutually plug the PAB module airbag wiring harness connector clip and safety airbag wiring harness PAB side
connector clip it is the end of PAB module installation.
b. Connection of accumulator terminal
c. Post-installation test
8. Clock spring installation procedure
a. Test before installation
Cross the line of upper clock spring through the hole in steer.
connect and fix the clock spring and steer
install the combined switch upper cover
install the steering wheel
steering wheel and safety module assembly
b. Connect accumulator’s terminal
c. Post-installation test
