Brake-20

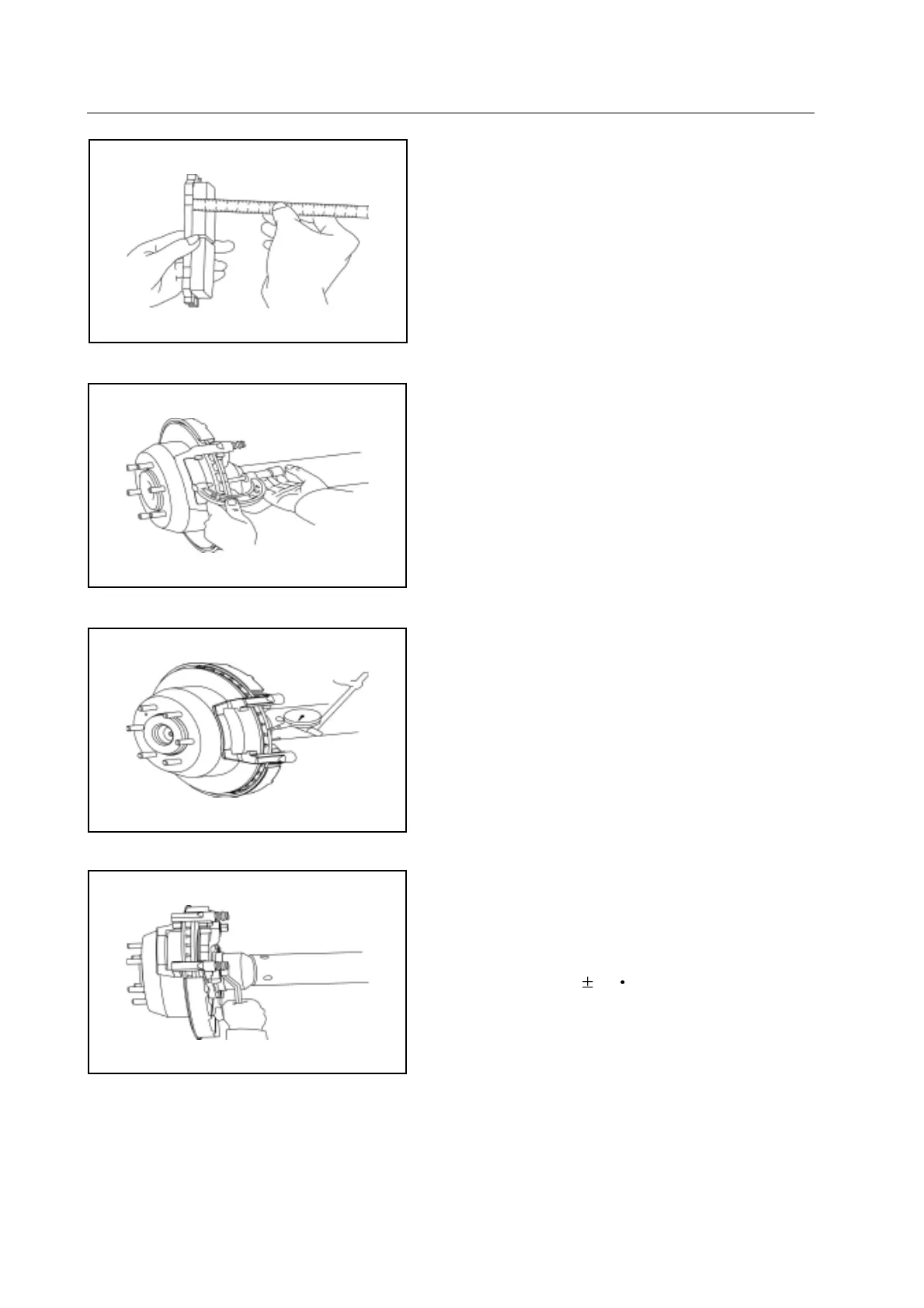

Check the components of rear brake
1. Measure the thickness of the brake block bush.
Standard thickness: 8.0mm
Minimum thickness: 2.0mm
It should replace the brake block if less than minimum thickness or
has uneven abrasion.
2. Measure the thickness of brake disc.
standard thickness: 18.0mm
minimum thickness: 16.0mm
It should repair or replacement brake disc if it is scratched or worn or
its thickness is less than minimum thickness.
3. Measure the circular runout of brake disc.
Remarks: It should ensure that the rear bearing is adjusted
correctly before the measurement.
Maximum circular runout : 0.11mm
4. Replace the brake disc if necessary.
a. Remove the bracket form the rear axle flange.
b. Remove the rear brake disc and install the new brake disc .
c. Install the bracket and tighten the fastening brake caliper bolt.
Tightening force: 100
5N m
